System Diagram

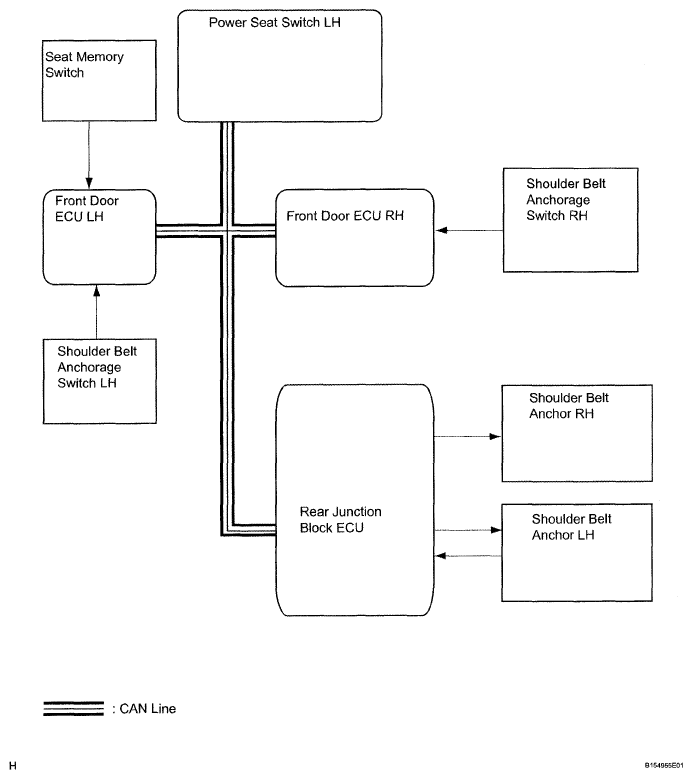

Fig 1: Seat Belt - System Diagram
G04944404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SIGNAL REFERENCE CHART

Sender Receiver Signal Line
Front Door ECU LH Rear Junction Block ECU Shoulder belt anchorage switch signal CAN
Front Door ECU LH Power Seat Switch LH Seat memory switch signal CAN
Power Seat Switch LH Rear Junction Block ECU Memory signal CAN
Rear Junction Block ECU Power Seat Switch LH Shoulder belt sensor signal CAN
Front Door ECU RH Rear Junction Block ECU Shoulder belt anchorage switch signal CAN
