Inspection Procedure

1. Start the navigation system and check that the voice recognition microphone function operates normally.

   Result

   NAVIGATION SYSTEM



   Result	Proceed to
   Microphone function is normal	A
   Microphone function is malfunctioning (for DVD)	B
   Microphone function is malfunctioning (for HDD)	C

B: GO TO NAVIGATION SYSTEM  (See HOW TO PROCEED WITH TROUBLESHOOTING )

C: GO TO NAVIGATION SYSTEM  (See HOW TO PROCEED WITH TROUBLESHOOTING )

A: GO TO NEXT STEP

1. Disconnect the R24 ECU connector.
2. Disconnect the X4 map light connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   MAYDAY ECU - MAP LIGHT



   Tester Connection	Condition	Specified Condition
   R24-7 (TACC) - X4-22 (ACC)	Always	Below 1 Ω
   R24-7 (TACC) or X4-22 (ACC) - Body ground	Always	10 kΩ or higher

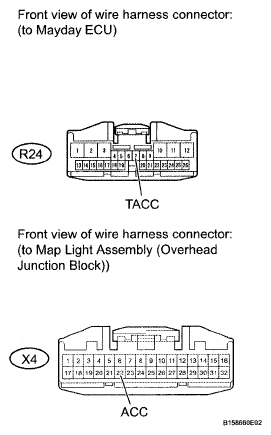

   Fig 1: Identifying R24 ECU Connector And X4 Map Light Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR THEN CLEAR HISTORIC DTC

OK: GO TO NEXT STEP

1. Disconnect the X4 map light connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   MAP LIGHT - BODY GROUND



   Tester Connection	Condition	Specified Condition
   X4-1 (GND) - Body ground	Always	Below 1 Ω

   Fig 2: Identifying X4 Map Light Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR THEN CLEAR HISTORIC DTC

OK: GO TO NEXT STEP

1. Temporarily replace the map light with a new or normally functioning one for standard body (see REMOVAL ) or long body (see REMOVAL ).
2. Check that DTC 4-3 is output.

   OK: DTC 4-3 is not output.

NG: REPLACE MAYDAY ECU TOGETHER WITH MAYDAY BATTERY AND THEN PERFORM REGISTRATION

OK: END (MAP LIGHT IS FAULTY; CLEAR HISTORIC DTC)
