Automatic Light Control Sensor: Components

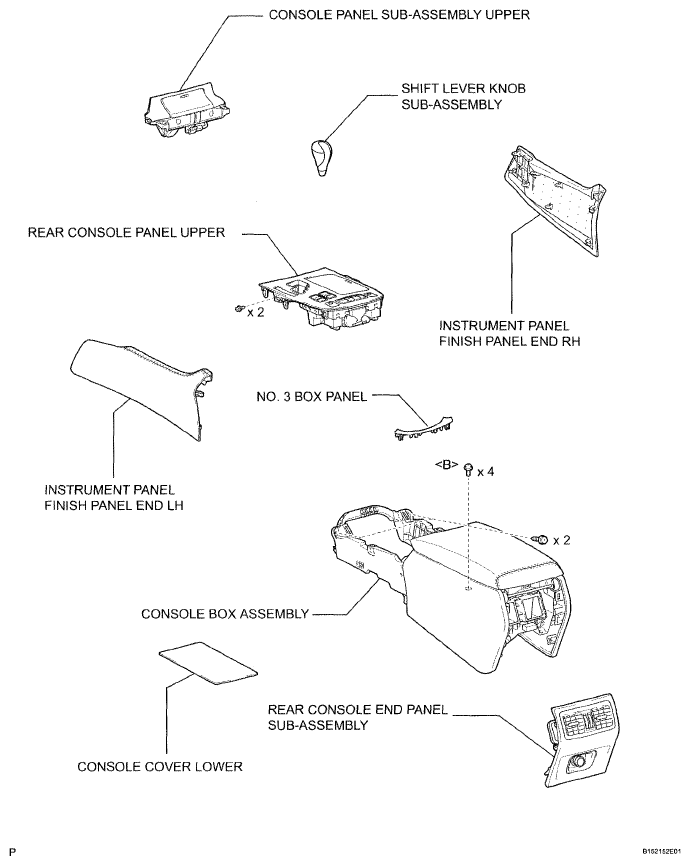

Fig 1: Turn Signal Flasher Assembly Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

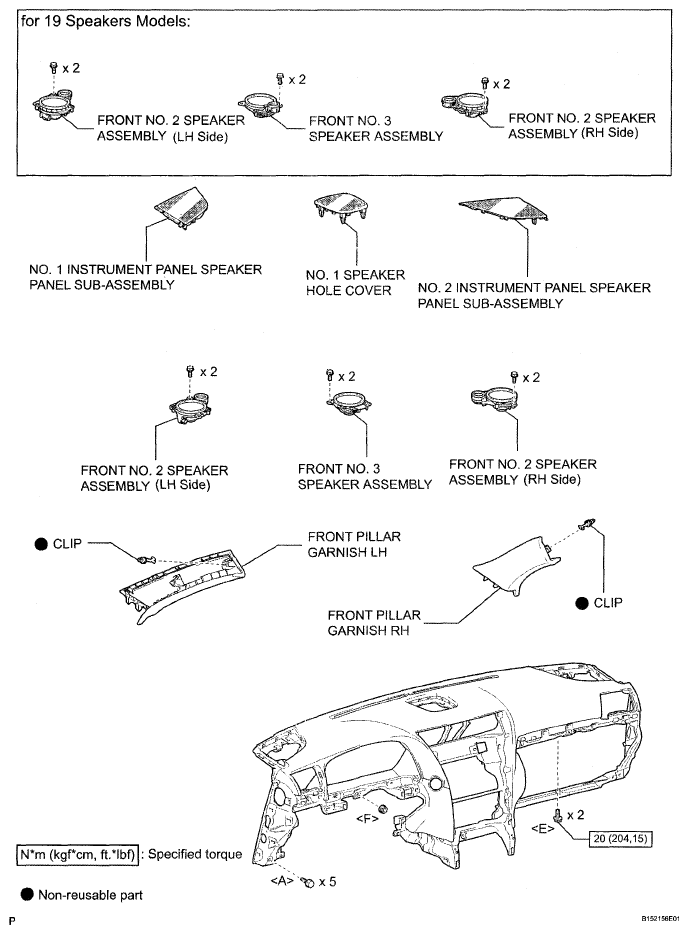

Fig 2: Identifying Automatic Light Control Sensor Components (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

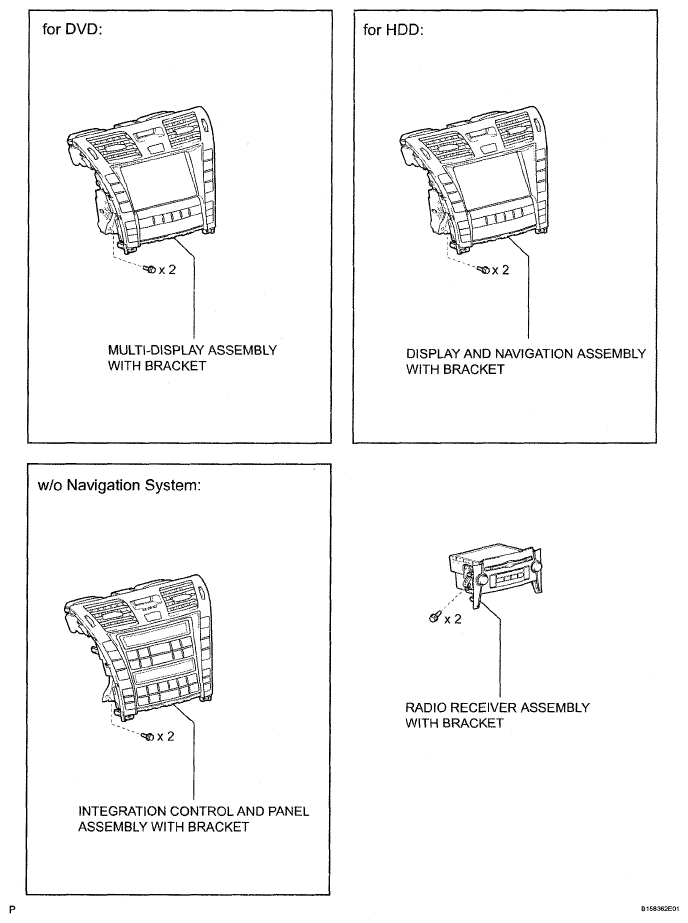

Fig 3: Identifying Automatic Light Control Sensor Components (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

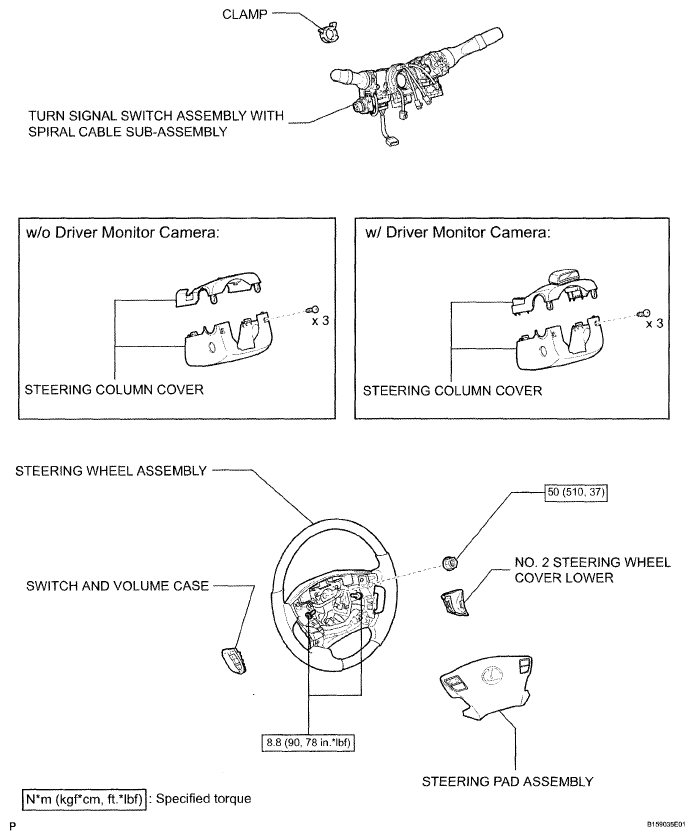

Fig 4: Turn Signal Flasher Assembly Replacement Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Turn Signal Flasher Assembly Replacement Components With Torque Specifications (5 Of 6)

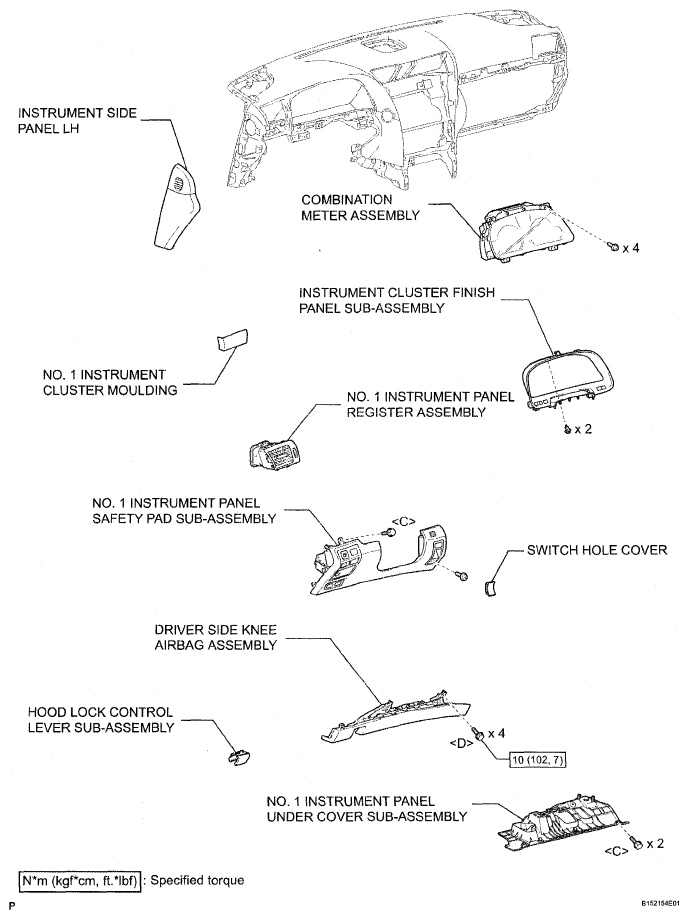

Fig 6: Automatic Light Control Sensor Replacement Components With Torque Specifications (6 Of 7)

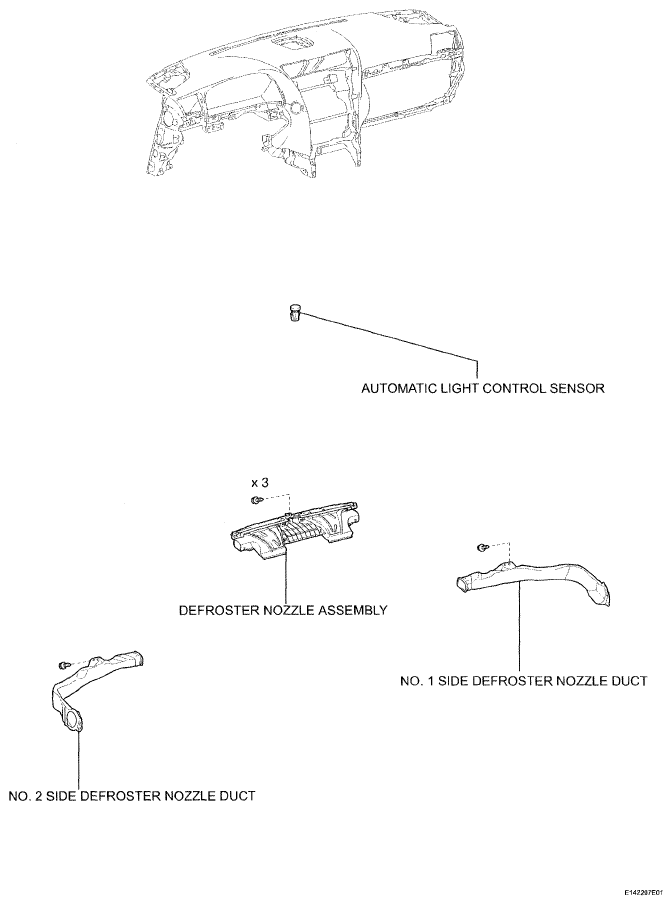

Fig 7: Identifying Automatic Light Control Sensor Components (7 Of 7)
