Automatic Light Control Function does not Operate: Wiring Diagram

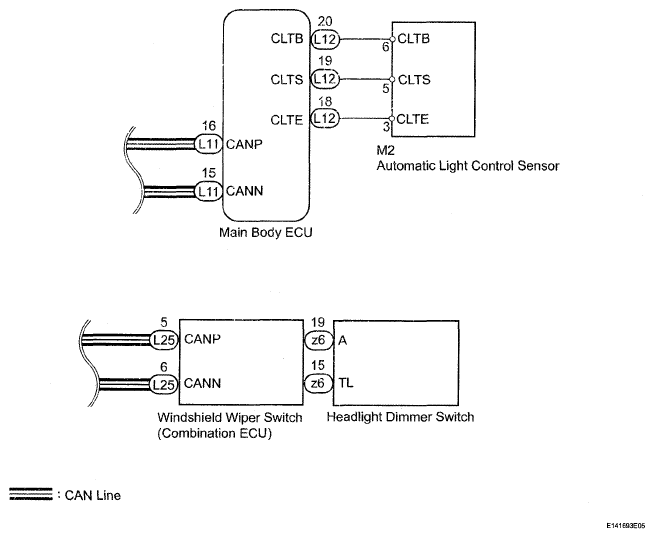

Fig 1: Automatic Light Control Function Does Not Operate - Wiring Diagram
G04944722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
