System Description

1. The dynamic radar cruise control system has 2 cruise control modes: the constant speed control mode and vehicle-to-vehicle distance control mode.
   • The vehicle-to-vehicle distance control mode is always selected when starting the dynamic radar cruise control system.
   • Operation of the constant speed control mode is the same as the cruise control system.
2. This system maintains the vehicle running at the speed that the driver has set, as long as there are no vehicles ahead in the same lane. Then, the system maintains the vehicle distance that has been set by the driver. If the system detects a vehicle driving at a slower speed ahead while the driver is driving at a constant speed, it closes the throttle valve to decelerate. If further deceleration is required, the system controls the brake actuator in order to apply the brakes. Thereafter, if there are no vehicles ahead within the set vehicle-to-vehicle distance because either the vehicle ahead or the driver has changed lanes, the system accelerates slowly to reach the set vehicle speed and resumes driving at the constant speed.
3. The constant speed control mode is designed to maintain a constant cruising speed. The vehicle-to-vehicle distance control mode is designed to control cruising using a constant speed function, deceleration cruising function, follow-up cruising function and acceleration cruising function.
4. The front millimeter wave radar sensor and the driving support ECU control the system while the vehicle-to-vehicle distance control mode is in operation, and send signals to each actuator and ECU.
5. In vehicle-to-vehicle distance control mode, the dynamic radar cruise control system receives signals from the yaw rate (deceleration) sensor and the steering angle sensor. Based on these signals, it then estimates curve radius and compensates for information on the preceding vehicle while turning. It can also compensate for the brake control when approaching another vehicle.
6. This system judges the presence of a vehicle in front and the distance to it based on the signals from the radar sensor while the vehicle-to-vehicle distance control mode is in operation. Using this information, the system informs the driver of any danger with the warning buzzer, performs brake control, and turns on the stop light when approaching the vehicle in front.
7. The following illustration shows an example under the following conditions: your vehicle speed is 100 km/h (62 mph) and the speed of the vehicle in front is 80 km/h (50 mph). Setting of the vehicle distance can be changed to 3 distances by operating the distance control switch (distance control switch): long (approximately 75 m (246 ft.)), middle (approximately 50 m (164 ft.)), and short (approximately 35 m (110 ft.)) when the vehicle speed is approximately 90 km/h (55 mph).

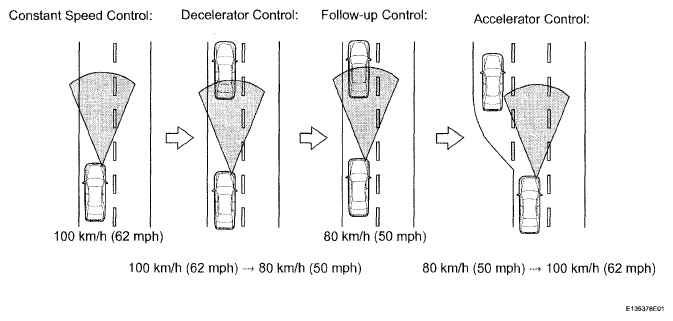

   Fig 1: Example Of Control In Different Condition

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   • Vehicle distance increases and decreases in accordance with vehicle speed.
   • Controlling condition is indicated on the multi-information display in the combination meter.

1. Low speed limit

   The lowest possible limit of the speed setting range is set at approximately 40 km/h (25 mph). The cruise control system cannot be set when the driving vehicle speed is below the low speed limit. Cruise control operation will be automatically canceled when the vehicle speed decreases below the low speed limit (40 km/h (25 mph)) while the cruise control is in operation. When the vehicle speed is increased above the low speed limit after the cruise control operation is canceled, pressing the RESUME switch increases the vehicle speed to the stored speed.

2. High speed limit (Vehicle-to-vehicle distance control mode)

   The highest possible limit of the speed setting range is approximately 135 km/h (85 mph). The cruise control system cannot be set when the driving vehicle speed is over the high speed limit. Also, RESUME / ACCEL cannot be used to increase speed beyond the high speed limit.

3. High speed limit (Constant speed control mode)

   The highest possible limit of the speed setting range is approximately 200 km/h (125 mph). The cruise control system cannot be set when the driving vehicle speed is over the high speed limit. Also, RESUME / ACCEL cannot be used to increase speed beyond the high speed limit.

The cruise control switch operates 8 functions: SET, COAST, TAP-DOWN, RESUME, ACCEL, TAP-UP, CANCEL, and MODE. The SET, TAP-DOWN and COAST functions, and the RESUME, TAP-UP and ACCEL functions are operated with the same switch. The cruise control switch is an automatic return type switch which turns on only while operating it in each arrow direction and turns off after releasing it. The dynamic radar cruise control system has two cruise control modes: the constant speed control mode and vehicle-to-vehicle distance control mode.

• The vehicle-to-vehicle distance control mode is always selected when starting up the dynamic radar cruise control system.
• Operation of the constant speed control mode is the same as the cruise control system.

1. MODE CONTROL

   Pushing the switch to MODE for more than 1 second while driving with the cruise control switch ON-OFF button on (RADAR READY is on) switches the mode to the constant speed control mode.

2. SET CONTROL (Constant speed control mode)

   Vehicle speed is stored and constant speed control is maintained when pushing the switch to SET / COAST while driving with the vehicle speed within the set speed range (between the low and high speed limits) after pushing the cruise control switch ON (RADAR READY is on), and entering the constant speed control mode.

3. SET CONTROL (Vehicle-to-vehicle distance control mode)

   Vehicle speed is stored and vehicle-to-vehicle control is maintained when pushing the switch to SET / COAST while driving with the cruise control switch ON (RADAR READY is on), and vehicle speed is within the set speed range (between the low and high speed limits).

4. COAST CONTROL (Constant speed control mode)

   When the cruise control switch is set to SET / COAST and held in that position while the cruise control system is operating, the driving support ECU sends a "throttle valve opening angle 0°" demand signal to the cruise control system. Then the vehicle speed, when the cruise control switch is released, is stored and maintained.

   HINT:

   An actual throttle valve opening angle of 0° is not possible due to the idle speed control, etc.

5. COAST CONTROL (Vehicle-to-vehicle distance control mode)

   When SET / COAST on the cruise control switch is pressed and held while the vehicle-to-vehicle distance control mode is in operation, the stored vehicle speed decreases by approximately 5 km/h or 5 mph.

6. TAP-DOWN CONTROL (Vehicle-to-vehicle distance control mode)

   When tapping down the cruise control switch to SET / COAST (for approximately 0.5 seconds) while the constant speed control mode is in operation, the stored vehicle speed decreases each time by approximately 1 km/h or 1 mph.

7. TAP-DOWN CONTROL (Constant speed control mode)

   When tapping down the cruise control switch to SET / COAST (for approximately 0.5 seconds) while the constant speed control mode is in operation, the stored vehicle speed decreases each time by approximately 1.6 km/h (1 mph). When the cruise control switch is released from SET / COAST and the difference between the driving and stored vehicle speed is more than 5 km/h (3 mph), the vehicle speed is stored and constant speed control is maintained.

8. ACCELERATION CONTROL (Constant speed control mode)

   The throttle valve motor of the throttle position sensor and motor is instructed by the driving support ECU to open the throttle valve when RESUME / ACCEL on the cruise control switch is pressed and held while the constant speed control mode is in operation. When the cruise control switch is released from RESUME / ACCEL, the vehicle speed is stored and constant speed control is maintained.

9. ACCELERATION CONTROL (Vehicle-to-vehicle distance control mode)

   When RESUME / ACCEL on the cruise control switch is pressed and held while the vehicle-to-vehicle distance control mode is in operation, the stored vehicle speed increases by approximately 5 km/h or 5 mph per second. Pushing the cruise control switch to RESUME / ACCEL while following the vehicle in front with the vehicle-to-vehicle distance control mode on does not increase the actual vehicle speed, but changes only the set vehicle speed.

10. TAP-UP CONTROL (Vehicle-to-vehicle distance control mode)

    When tapping up the cruise control switch to RESUME / ACCEL (approximately 0.5 seconds) while the constant speed control mode is in operation, the stored vehicle speed increases each time by approximately 1 km/h or 1 mph.

11. TAP-UP CONTROL (Constant speed control mode)

    When tapping up the cruise control switch to RESUME / ACCEL (approximately 0.5 seconds) while the constant speed control mode is in operation, the stored vehicle speed increases each time by approximately 1.6 km/h (1 mph). However, when the difference between the driving and the stored vehicle speeds is more than 5 km/h (3 mph), the stored vehicle speed will not be changed.

12. MANUAL CANCEL CONTROL

    Performing any of the following cancels the cruise control system while it is in operation (the stored vehicle speed in the driving support ECU is maintained).

    • Depressing the brake pedal
    • Moving the shift lever to any position except D (8th, 7th, 6th, 5th, and 4th gear)
    • Pulling the cruise control switch to CANCEL
    • Pushing the cruise control switch OFF
13. RESUME CONTROL

    If the cruise control operation was canceled with the stop light switch or the CANCEL switch, and if driving speed is within the set speed range, pushing the cruise control switch to RESUME / ACCEL restores the vehicle speed memorized at the time of cancellation, and maintains constant speed control.

The driving support ECU determines the distance to the vehicle in front, relative speed, target decreasing speed and deceleration rate. Based on the data, the ECU may transmit a brake demand signal to the skid control ECU.

When the cruise control system is operating while driving uphill, the gear may down-shift from overdrive (8th gear) to 7th gear. If the gear downshifts to 4th gear and the system receives a signal from the ECT informing that the incline has decreased, the gear automatically returns to overdrive (8th gear).

When the cruise control system is operating while driving downhill, the gear may down-shift from overdrive (8th gear) to 7th gear. The driving support ECU receives the vehicle speed sensor signal and calculates the increasing speed rate. Based on this calculation, the ECU downshifts to 4th gear.

This system has an automatic cancellation function (failsafe) (see FAIL-SAFE CHART  ).
