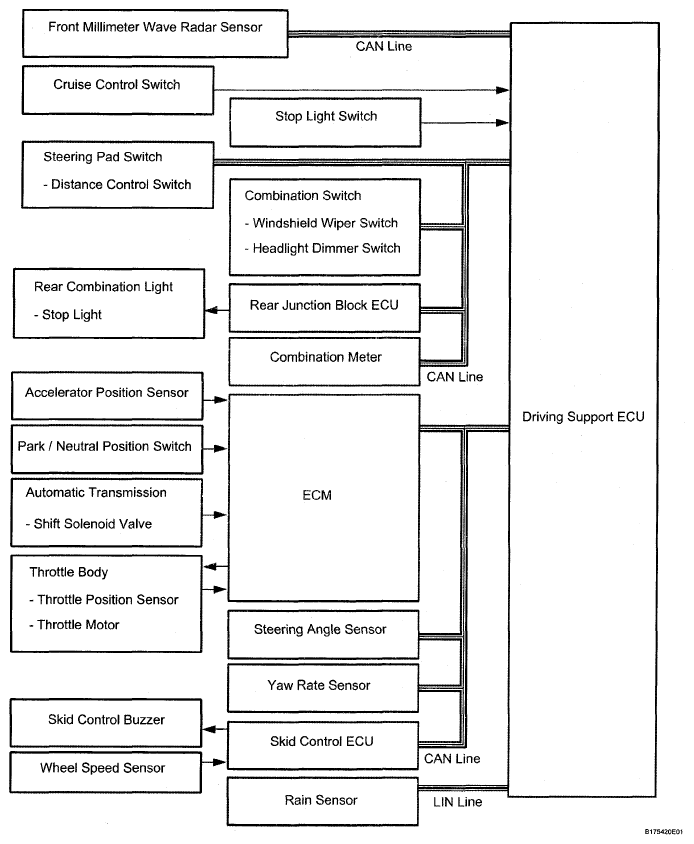

| Steering Angle Sensor |
Driving Support ECU |
- Steering angle sensor signal
- Steering angle sensor malfunction signal
- Steering angle sensor zero point signal
|
CAN |
| Yaw Rate Sensor |
Driving Support ECU |
- Yaw rate sensor signal
- Yaw rate sensor voltage signal
|
CAN |
| Combination Switch |
Driving Support ECU |
- Windshield wiper switch position signal
- Turn switch signal
|
CAN |
| Rear Junction Block ECU |
Driving Support ECU |
- Stop light operating condition signal
|
CAN |
| Driving Support ECU |
Combination Meter |
- Cruise control diagnostic signal (DTC)
- Vehicle-to-vehicle distance control signal
- Vehicle-to-vehicle distance signal
- Front millimeter wave radar sensor grime signal
- Bad weather detection signal
- Approach warning signal
- Preceding vehicle detection signal
- Front millimeter wave radar sensor beam axis deviation signal
- CRUISE main indicator light signal
- Dynamic radar cruise warning signal
- Cruise control vehicle speed signal
- Constant speed cruise signal
|
CAN |
| Skid Control ECU |
Driving Support ECU |
- Brake control malfunction signal
- Cruise control cancel switch signal
- Brake control operation signal
- Brake component malfunction signal
- Drive wheel slip signal
- Warning buzzer malfunction signal
- Speed sensor power drop signal
- Speed sensor condition signal
|
CAN |
