Object Recognition Ecu: Components

Fig 1: Identifying Object Recognition ECU Components (1 Of 3)
G04951458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Object Recognition ECU Components (2 Of 3)
G04951459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

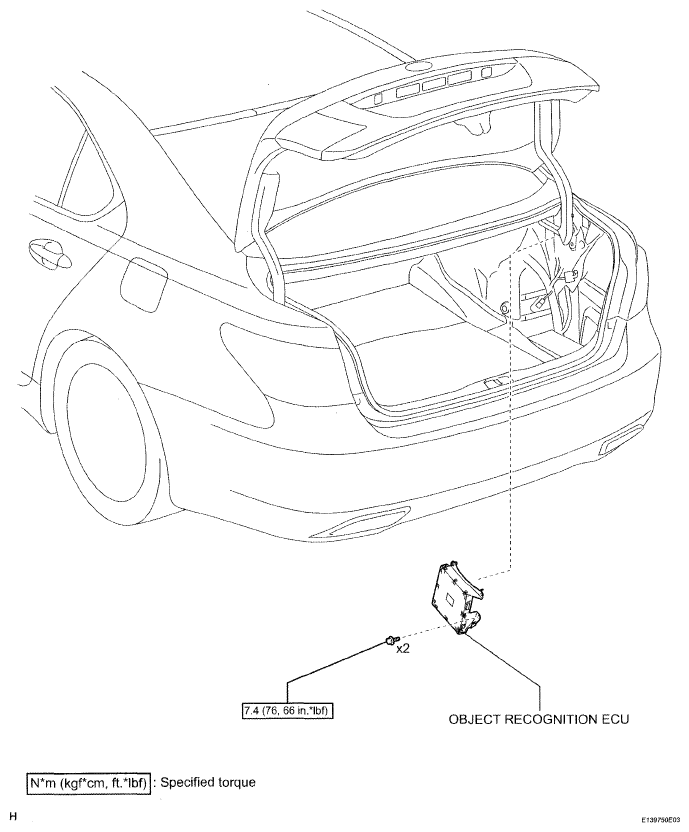

Fig 3: Object Recognition ECU Replacement Components With Torque Specifications (3 Of 3)
G04951460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
