Amplifier Antenna: Components

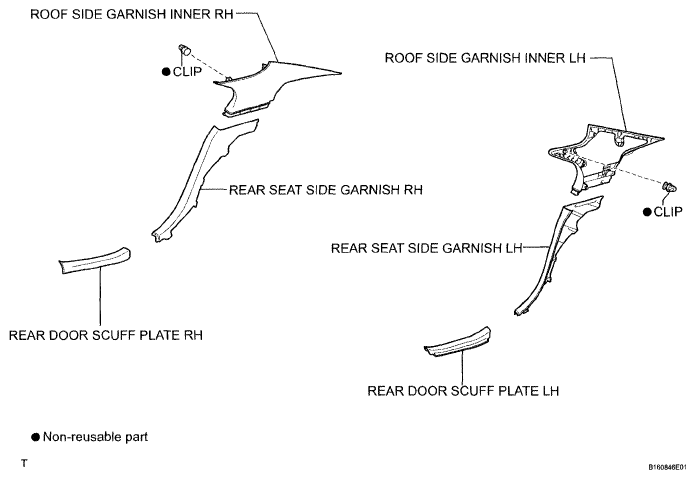

Fig 1: Identifying Amplifier Antenna Components (1 Of 4)
G04954103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

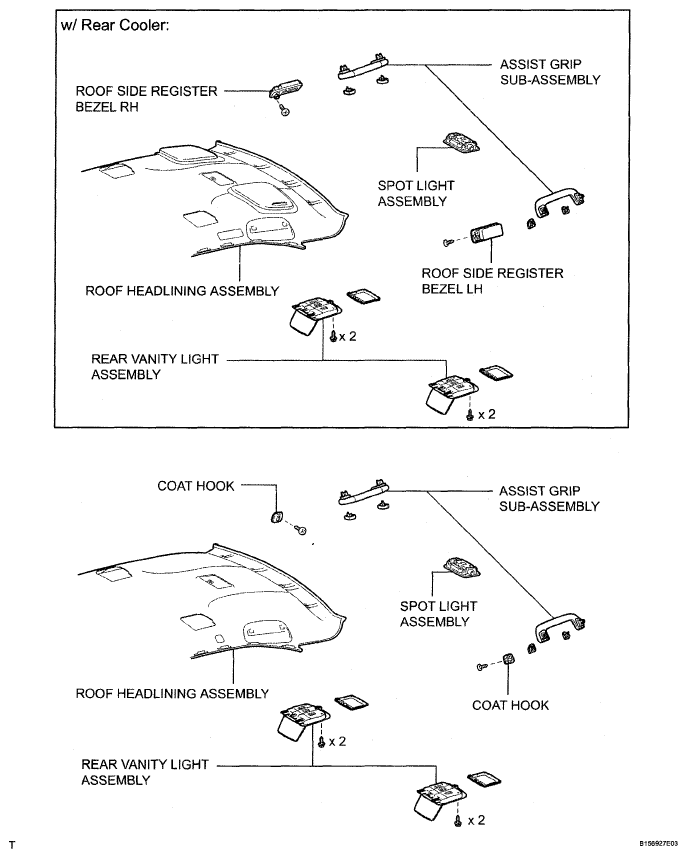

Fig 2: Identifying Amplifier Antenna Components (2 Of 4)
G04954104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

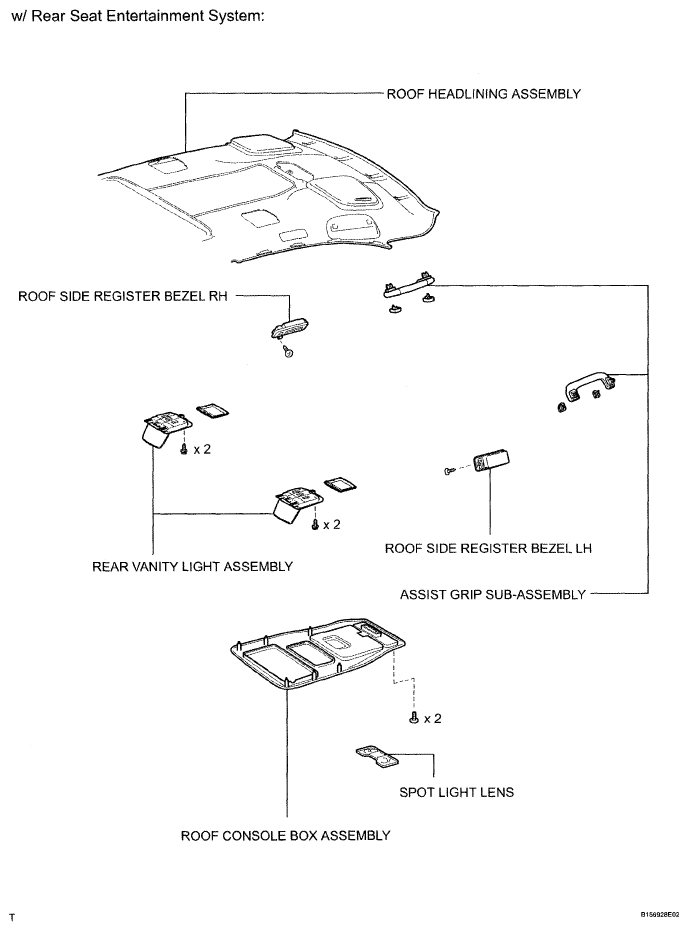

Fig 3: Identifying Amplifier Antenna Components (3 Of 4)
G04954105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

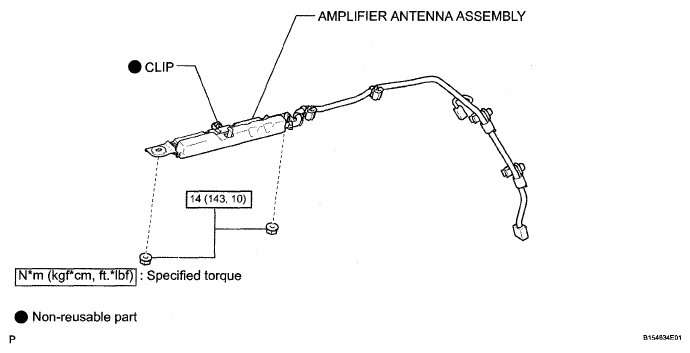

Fig 4: Amplifier Antenna Replacement Components With Torque Specifications (4 Of 4)
G04954106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
