Display Signal Circuit between Multi-display Controller and Disc Player Controller: Wiring Diagram

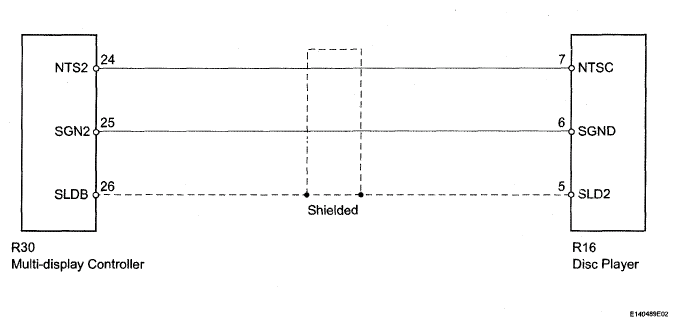

Fig 1: Identifying Display Signal Circuit Between Multi-Display Controller And Disc Player Controller - Wiring Diagram
G04953959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
