Multi-display Controller Power Source Circuit: Wiring Diagram

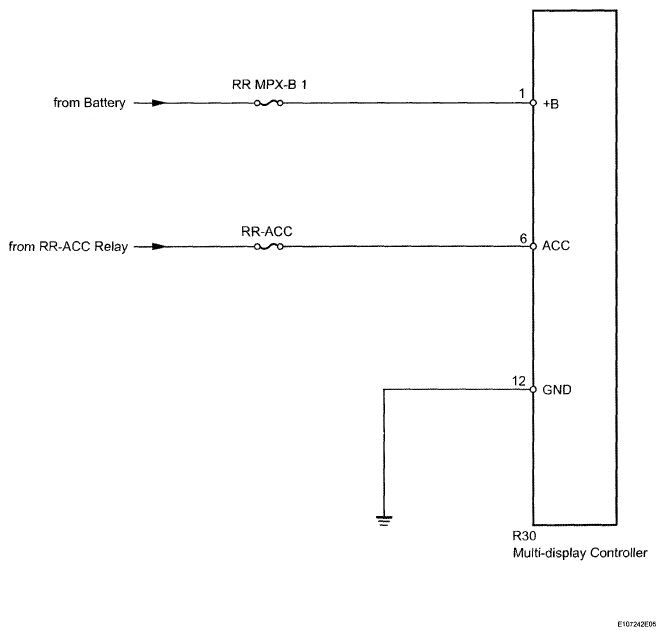

Fig 1: Identifying Multi-display Controller Power Source Circuit - Wiring Diagram
G04953970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
