Inspection Procedure

CHECK MULTI-DISPLAY CONTROLLER

Measure the voltage according to the value(s) in the table below.

Fig 1: Identifying Multi-Display Controller Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Switch Condition	Specified Condition
R32-19 (MUT4) - Body ground	Turn engine switch on (ACC), disc player is playing → Changing modes	Above 3.5 V → Below 1 V

NG: Go to step 2

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )

CHECK HARNESS AND CONNECTOR (DISC PLAYER - MULTI-DISPLAY CONTROLLER)

Disconnect the R16 player connector.
Disconnect the R32 controller connector.

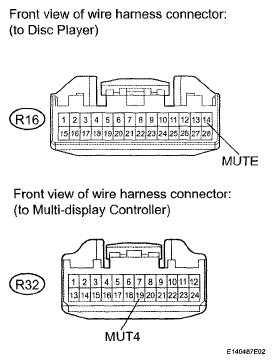

Fig 2: Identifying Disc Player And Multi-Display Controller Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
R16-14(MUTE)-R32-19 (MUT4)	Always	Below 1 Ω
R16-14 (MUTE)-Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

CHECK MULTI-DISPLAY CONTROLLER

Reconnect the R32 controller connector.

Fig 3: Identifying Multi-Display Controller Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the voltage according to the value(s) in the table below.

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Switch Condition	Specified Condition
R32-19(MUT4)-Body ground	DVD system is playing	Above 3.5 V

NG: REPLACE MULTI-DISPLAY CONTROLLER (See REMOVAL )

OK: REPLACE DISC PLAYER (See DISC PLAYER (FOR OTTOMAN) )
