Inspection Procedure

1. Disconnect the R32 controller connector.
2. Disconnect the R16 player connector.

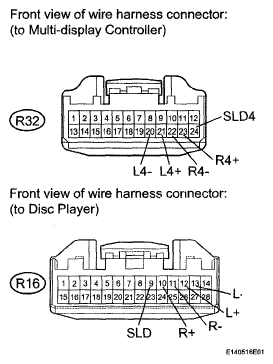

   Fig 1: Identifying Multi-Display Controller And Disc Player Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   R32-23(R4+)-R16-10 (R+)	Always	Below 1 Ω
   R32-22(R4-)-R16-11 (R-)	Always	Below 1 Ω
   R32-21(L4+)-R16-12 (L+)	Always	Below 1 Ω
   R32-20(L4-)-R16-13(L-)	Always	Below 1 Ω
   R32-24 (SLD4) - R16-9 (SLD)	Always	Below 1 Ω
   R32-23 (R4+) - Body ground	Always	10 kΩ or higher
   R32-22 (R4-) - Body ground	Always	10 kΩ or higher
   R32-21 (L4+) - Body ground	Always	10 kΩ or higher
   R32-20 (L4-) - Body ground	Always	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE   )
