ID Code Box Power Source Circuit: Wiring Diagram

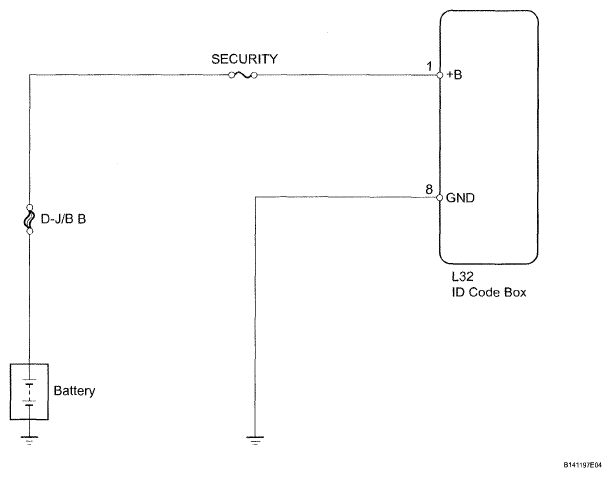

Fig 1: ID Code Box Power Source Circuit - Wiring Diagram
G04944591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
