Front Console Box: Disassembly

REMOVE CONSOLE BOX POCKET LOWER
1. Detach the 8 claws and remove the box pocket.
REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY
1. Using a screwdriver, detach the 2 claws.
  HINT:

  Tape the screwdriver tip before use.

  Fig 2: Identifying Console Compartment Door Sub-Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, detach the 2 dampers.
  HINT:

  Tape the screwdriver tip before use.
3. Remove the 4 screws and compartment door.

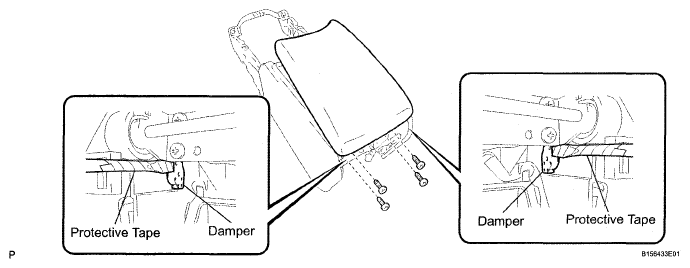

  Fig 3: Identifying Compartment Door Screws And Dampers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE COMPARTMENT DOOR HINGE SUB-ASSEMBLY
1. Slide the door hinge and remove the 2 screws.
2. Remove the 2 screws and door hinge.

  Fig 4: Identifying Console Compartment Door Hinge And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY
1. Place protective tape as shown in the illustration.
2. Using a screwdriver, detach the 2 clips.
  HINT:

  Tape the screwdriver tip before use.
3. Detach the 2 claws and remove the door lock.

  Fig 5: Identifying Console Compartment Door Lock Sub-Assembly Clips And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
