Front Console Box: Reassembly

INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY
1. Attach the 2 clips and 2 claws to install the door lock.

  Fig 1: Identifying Console Compartment Door Lock Sub-Assembly Clips And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE COMPARTMENT DOOR HINGE SUB-ASSEMBLY
1. Slide and install the door hinge with the 2 screws.
2. Install the 2 screws.

  Fig 2: Identifying Console Compartment Door Hinge And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY

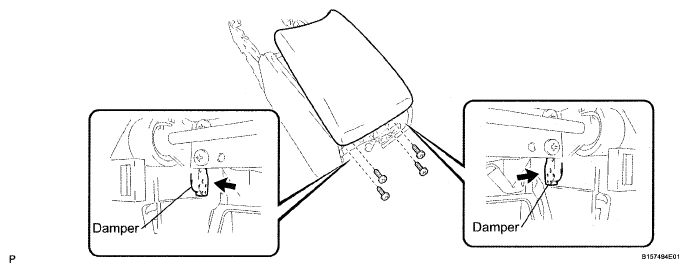

1. Install the 4 screws.
2. Attach the 2 dampers.

  Fig 3: Locating Console Compartment Door Sub-Assembly Dampers And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

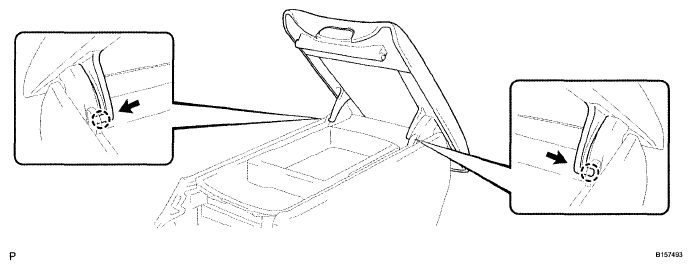

3. Attach the 2 claws to install the compartment door.

  Fig 4: Identifying Compartment Door Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONSOLE BOX POCKET LOWER
1. Attach the 8 claws to install the box pocket.

  Fig 5: Identifying Console Box Pocket Lower Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
