Rear Sunshade Assembly: Components

Fig 1: Rear Sunshade Assembly Replacement Components With Torque Specifications (1 Of 2)
G04946663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

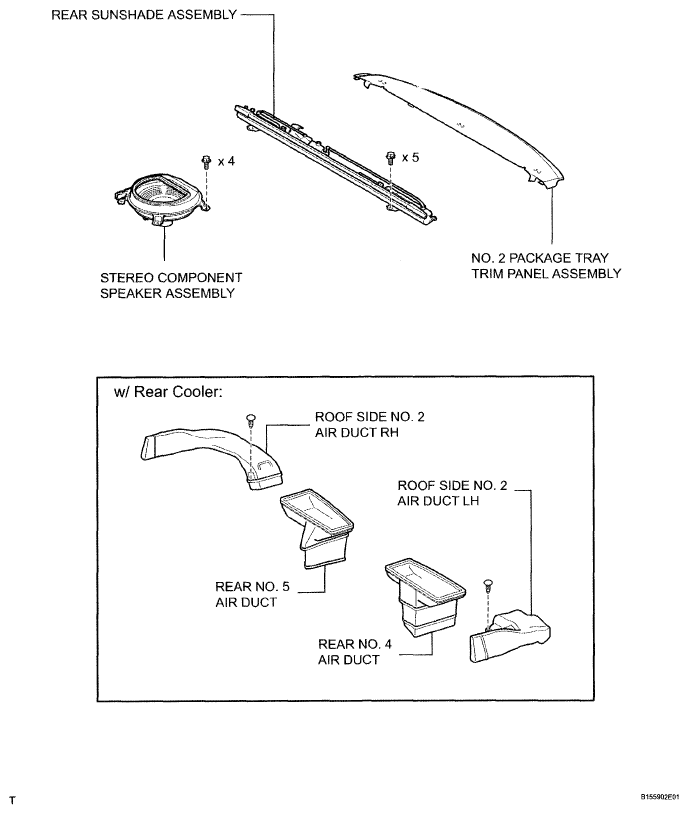

Fig 2: Identifying Rear Sunshade Assembly Components (2 Of 2)
G04946664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
