Parts Location

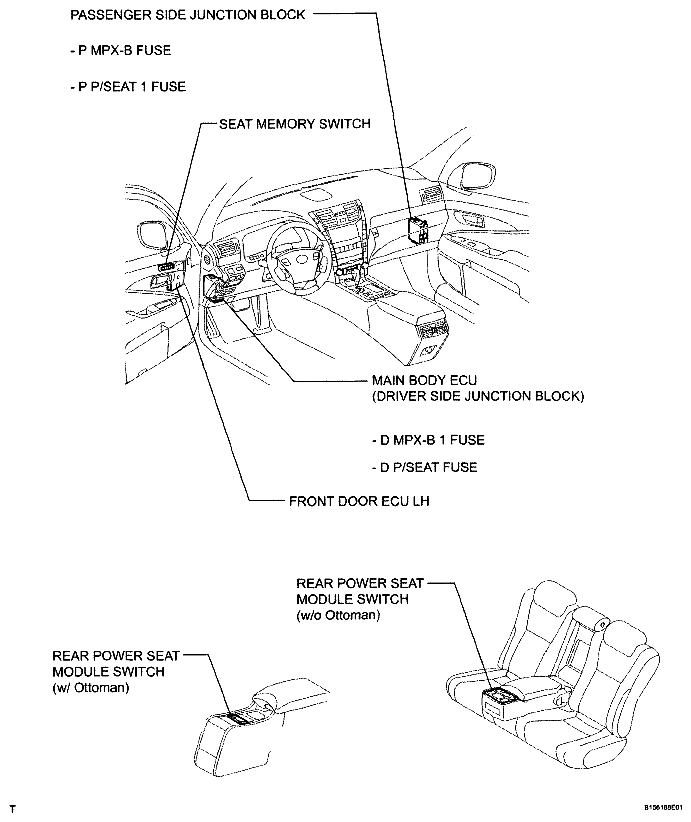

Fig 1: Identifying Front Power Seat Control System Parts Location
G04952406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Front Power Seat Control System Parts Location (Driver Side)
G04952407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Front Power Seat Control System Parts Location (Passenger Side (W/ Folding Headrest))
G04952408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

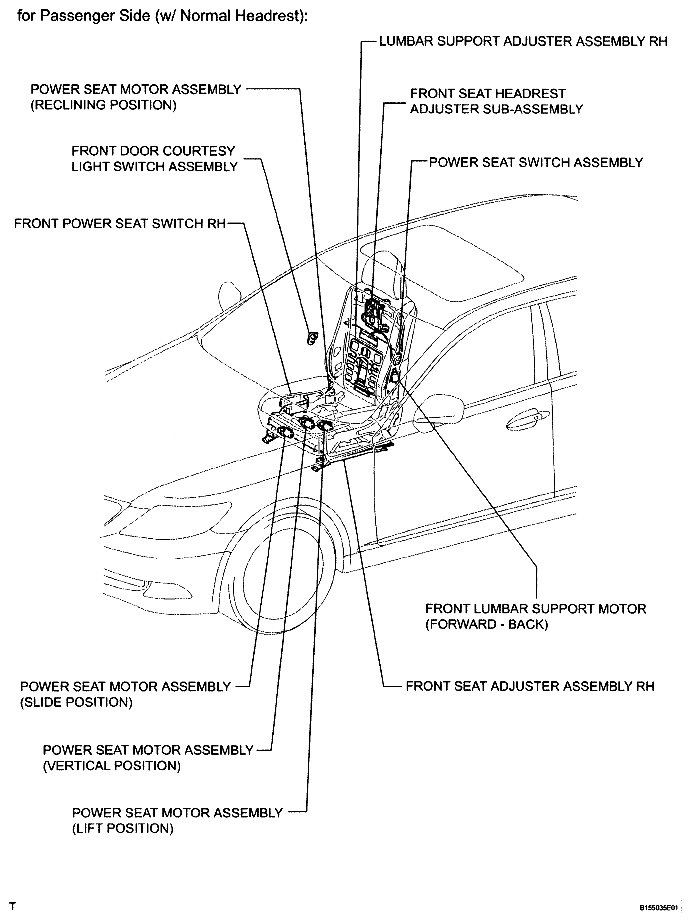

Fig 4: Identifying Front Power Seat Control System Parts Location (Passenger Side (W/ Normal Headrest))
G04952409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
