Rear Power Window LH Auto Up / Down Function does not Operate with Rear Power Window Switch LH: Wiring Diagram

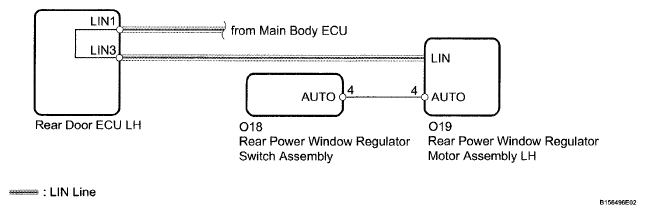

Fig 1: Rear Power Window LH Auto Up / Down Function Does Not Operate With Rear Power Window Switch LH - Wiring Diagram
G04952131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
