Inspection Procedure

1. Check for DTCs.

   Result:

   FOR DTC



   Result	Proceed to
   B2311 is output	A
   B2312 is output	B
   B2313 is output	C
   LIN communication system DTC output reoccur	D
   DTC is not output	E

A: GO TO  DTC B2311

B: GO TO  DTC B2312

C: GO TO  DTC B2313

D: GO TO LIN COMMUNICATION SYSTEM  (See HOW TO PROCEED WITH TROUBLESHOOTING )

E: GO TO NEXT STEP

1. Check that the manual UP/DOWN function using the power window regulator switch can operate the driver door power window.

   OK: Manual UP/DOWN function operates normally.

NG: OTHER PROBLEM (See  REAR POWER WINDOW RH DOES NOT OPERATE WITH REAR POWER WINDOW SWITCH RH   )

OK: GO TO NEXT STEP

1. Use the Data List to check if the power window regulator motor is functioning properly.
   1. Intelligent tester

      RR DOOR MOTOR:

      INTELLIGENT TESTER RR DOOR MOTOR



      Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
      RR P/W AUTO SW	Rear power window RH remote auto UP/DOWN switch signal / ON or OFF	ON: Rear power window RH remote auto UP/DOWN switch on master switch operated OFF: Rear power window RH switch on master switch not operated	-

   2. Techstream

      RR-Door Motor:

      TECHSTREAM RR DOOR MOTOR



      Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
      RR Door P/W Auto SW	Rear power window RH remote auto UP/DOWN switch signal / ON or OFF	ON: Rear power window RH remote auto UP/DOWN switch on master switch operated OFF: Rear power window RH switch on master switch not operated	-

      OK: Tester display changes normally when rear power window switch RH is operated.

NG: Go to step 4

OK: REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (for Rear RH) (See  REMOVAL   )

1. Disconnect the N6 switch connector.
2. Disconnect the N3 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   REAR SWITCH RH - REAR MOTOR RH



   Tester Connection	Condition	Specified Condition
   O7-4 (AUTO) - O8-4 (AUTO)	Always	Below 1 Ω
   07-1 (AUTO) or O8-4 (AUTO) - Body ground	Always	10 kΩ or higher

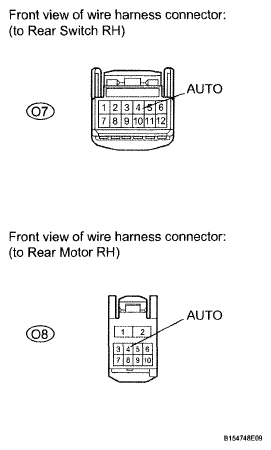

   Fig 1: Checking Harness And Connector (Rear Switch RH - Rear Motor RH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

1. Remove the switch.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   POWER WINDOW REGULATOR SWITCH ASSEMBLY (FOR REAR RH)



   Tester Connection	Switch Condition	Specified Condition
   O7-4 (AUTO) - O7-5 (GND)	AUTO UP/DOWN operation	Below 1 Ω

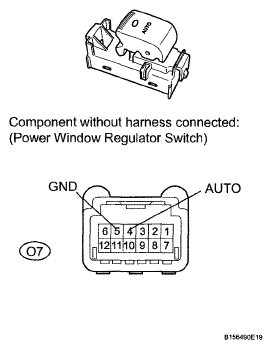

   Fig 2: Inspecting Power Window Regulator Switch Assembly (For Rear RH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH) (See  REMOVAL   )

OK: REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH (for Rear RH) (See  REMOVAL   )
