Rear Axle Hub Bolt: Components

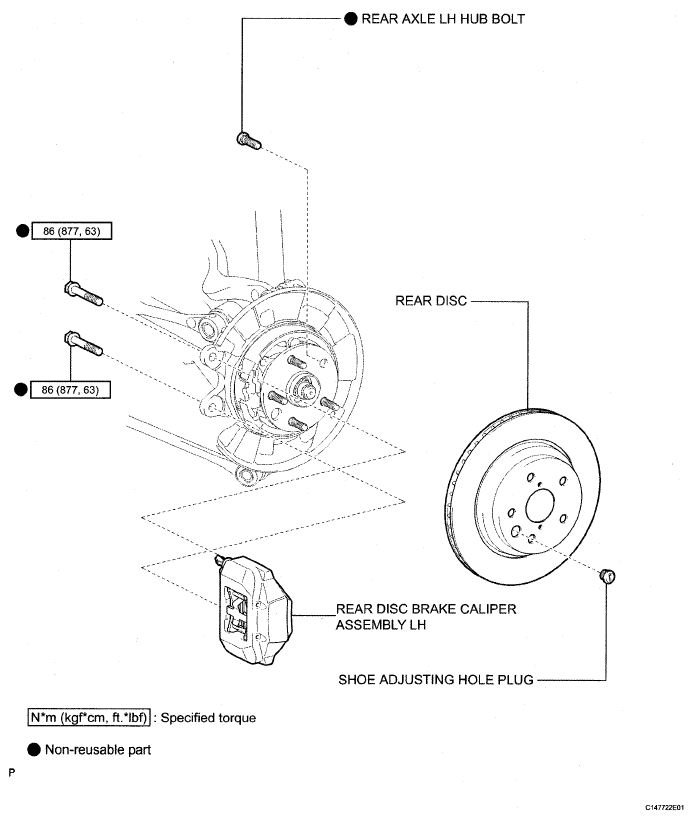

Fig 1: Rear Axle Hub Replacement Components With Torque Specifications
G04944049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
