Door Closer: Notes

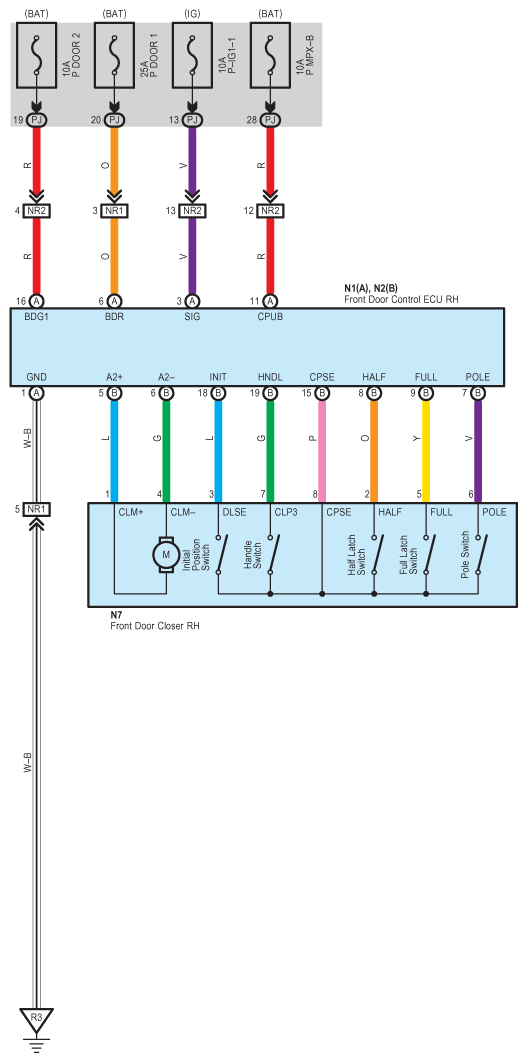

Fig 1: Door Closer System Wiring Diagram (1 Of 4)
G08920653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

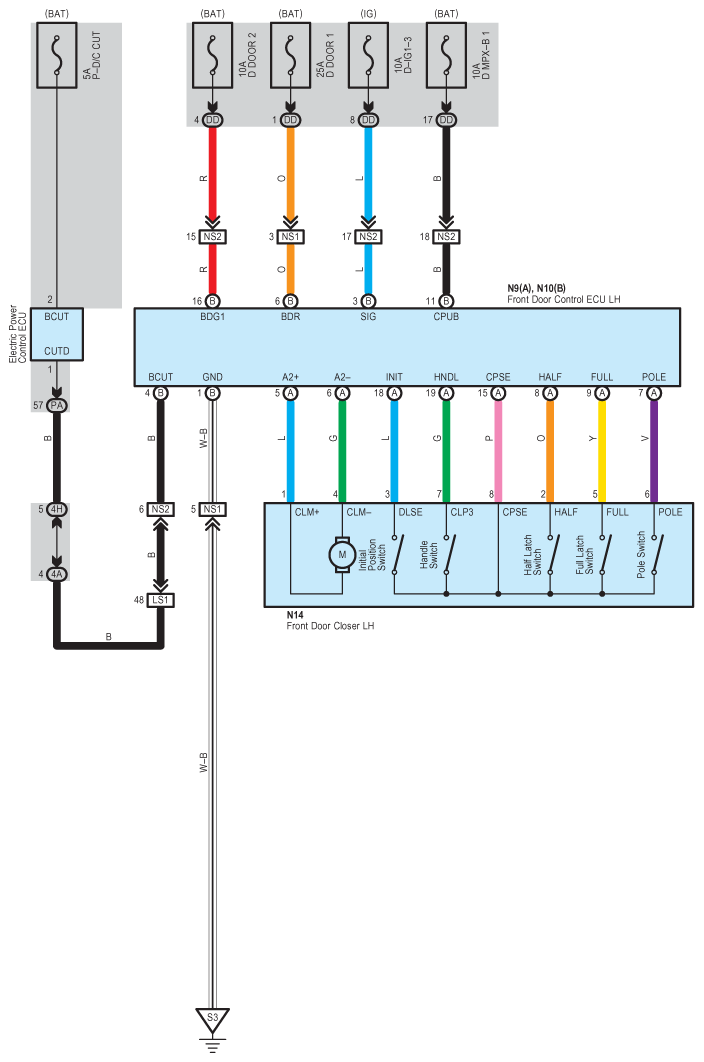

Fig 2: Door Closer System Wiring Diagram (2 Of 4)
G08920654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

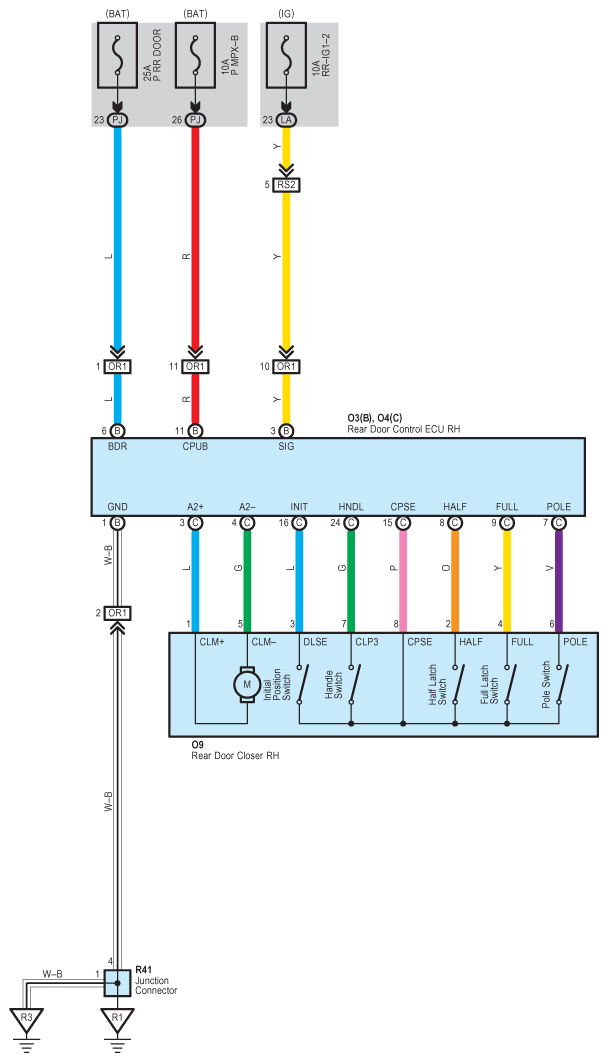

Fig 3: Door Closer System Wiring Diagram (3 Of 4)
G08920655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

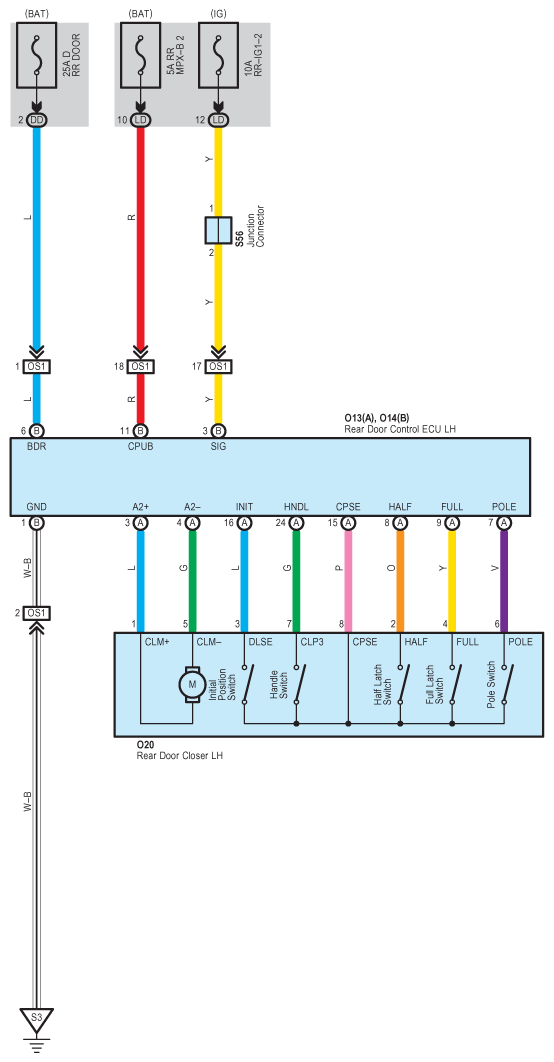

Fig 4: Door Closer System Wiring Diagram (4 Of 4)
G08920656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
