Power Seat for Driver's Seat: Notes

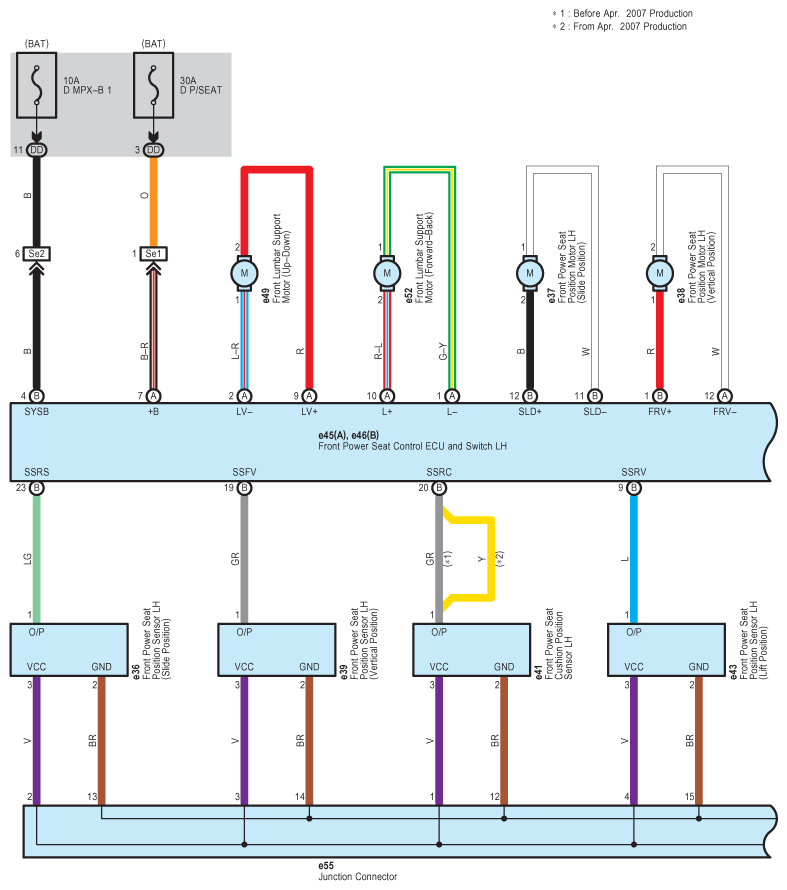

Fig 1: Power Seat For Driver's Seat System Wiring Diagram (1 Of 7)
G08920803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

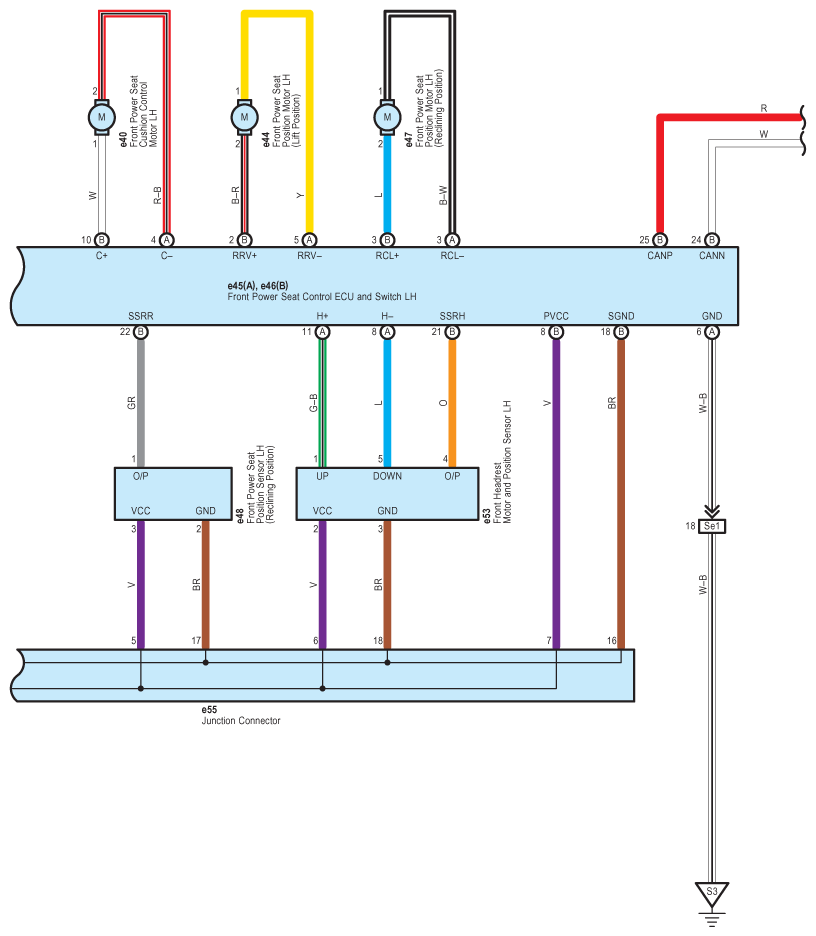

Fig 2: Power Seat For Driver's Seat System Wiring Diagram (2 Of 7)
G08920804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Power Seat For Driver's Seat System Wiring Diagram (3 Of 7)
G08920805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

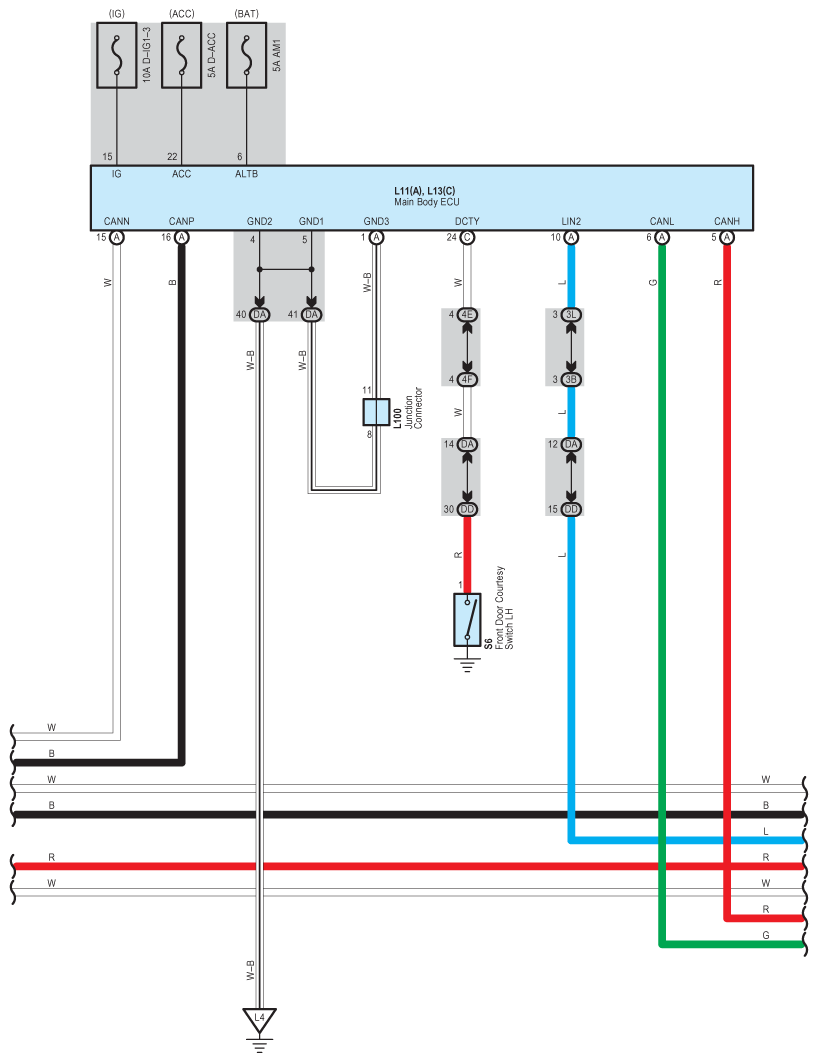

Fig 4: Power Seat For Driver's Seat System Wiring Diagram (4 Of 7)
G08920806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

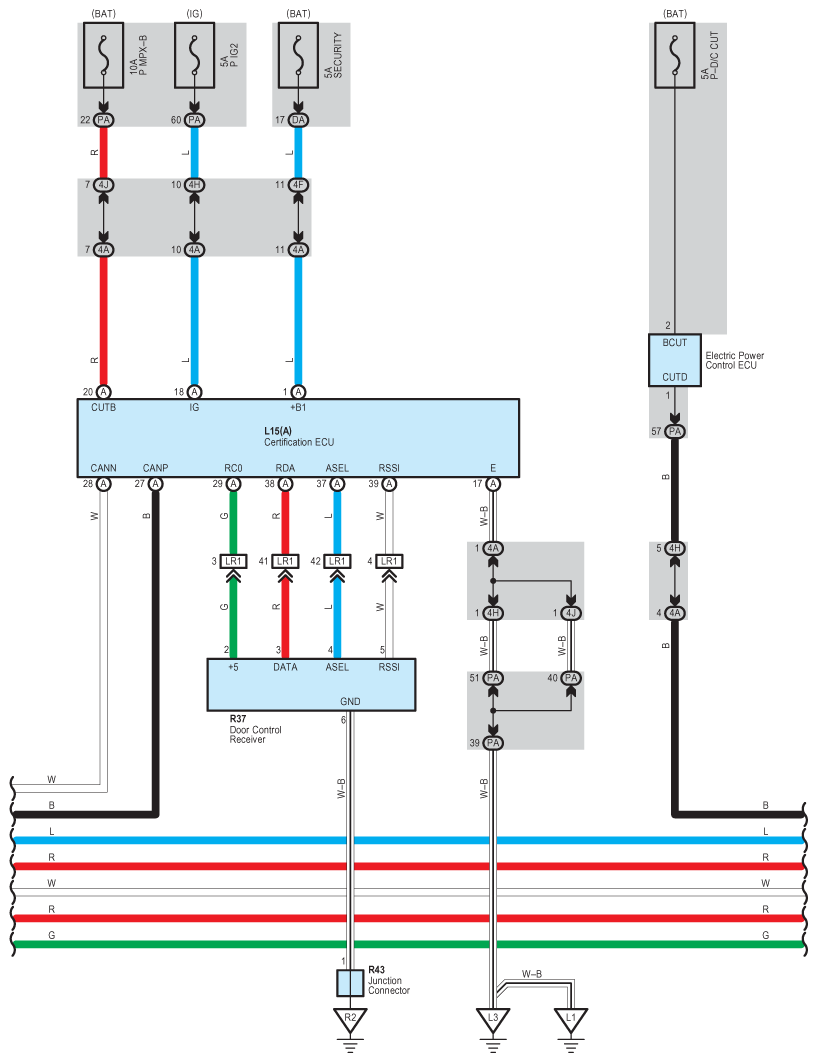

Fig 5: Power Seat For Driver's Seat System Wiring Diagram (5 Of 7)
G08920807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

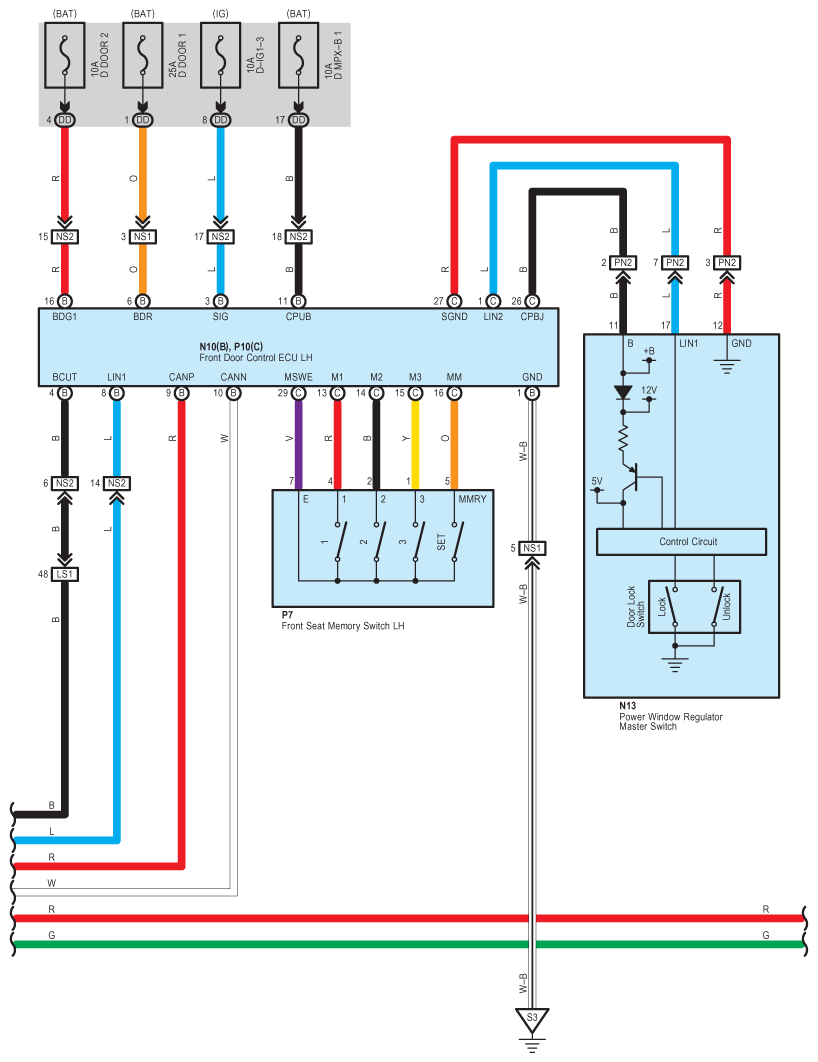

Fig 6: Power Seat For Driver's Seat System Wiring Diagram (6 Of 7)
G08920808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

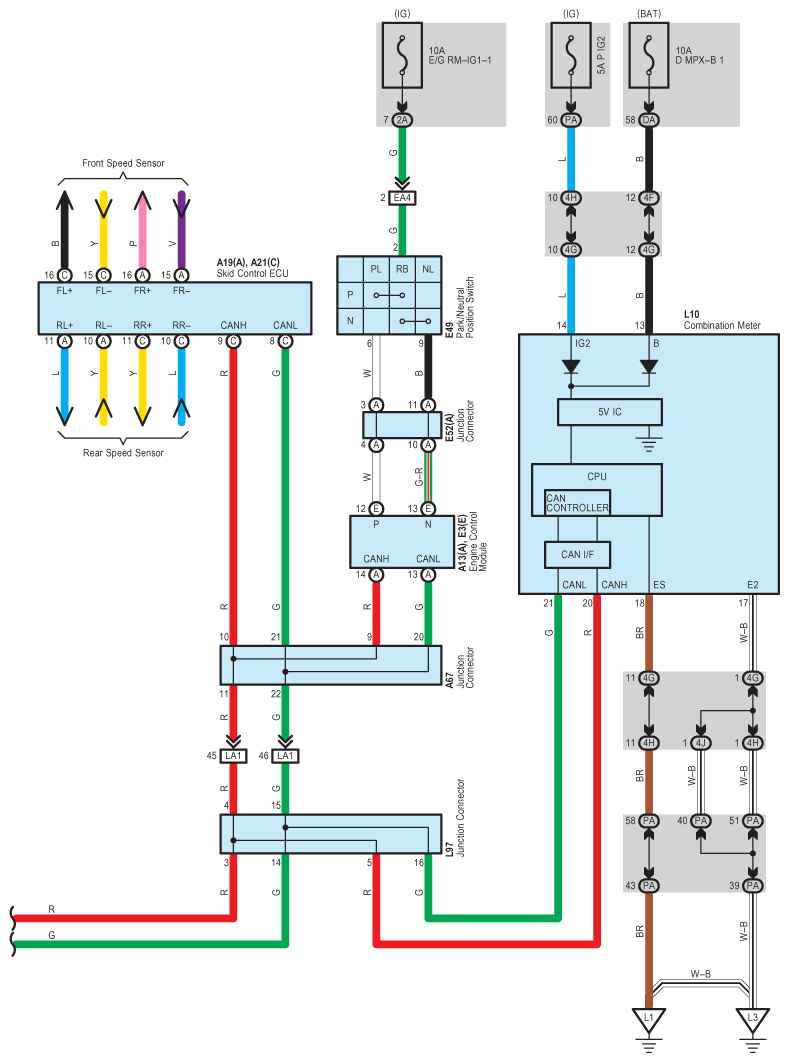

Fig 7: Power Seat For Driver's Seat System Wiring Diagram (7 Of 7)
G08920809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
