Rear Window Defogger and Mirror Heater: Notes

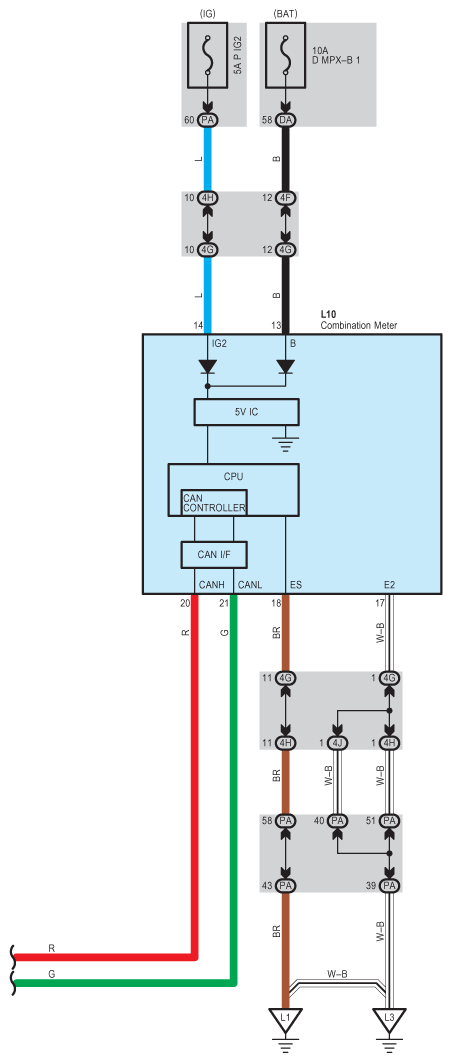

Fig 1: Rear Window Defogger And Mirror Heater System Wiring Diagram (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

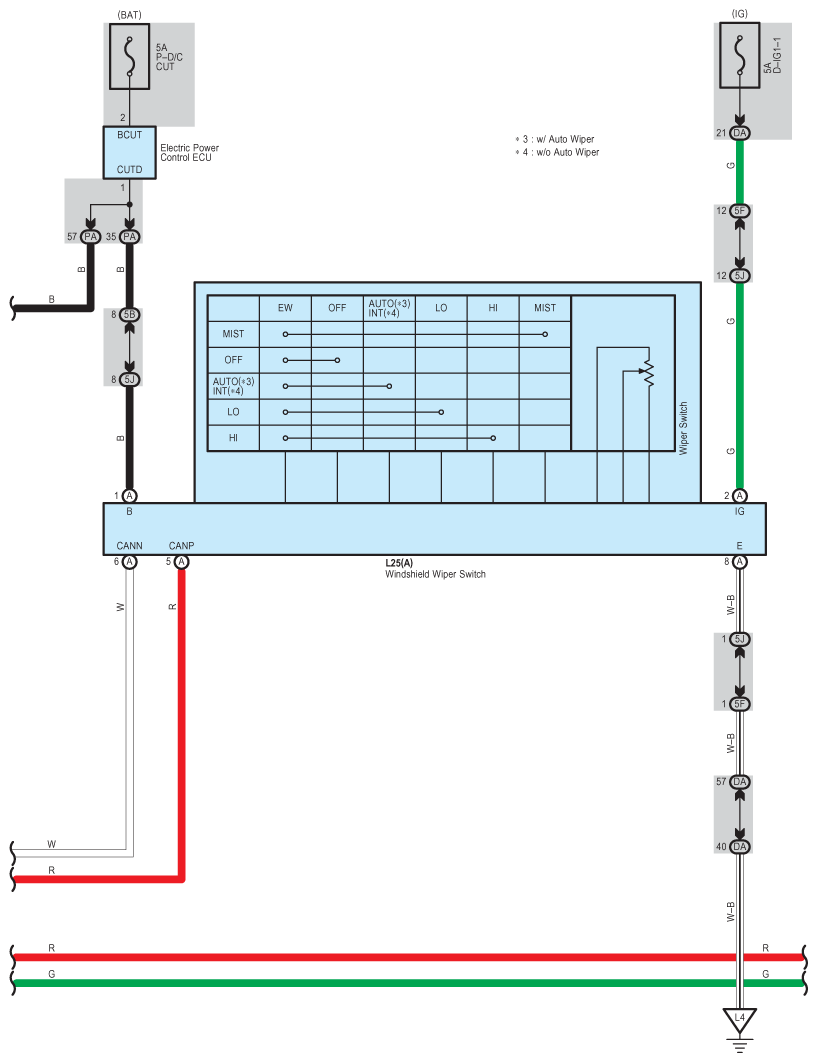

Fig 2: Rear Window Defogger And Mirror Heater System Wiring Diagram (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

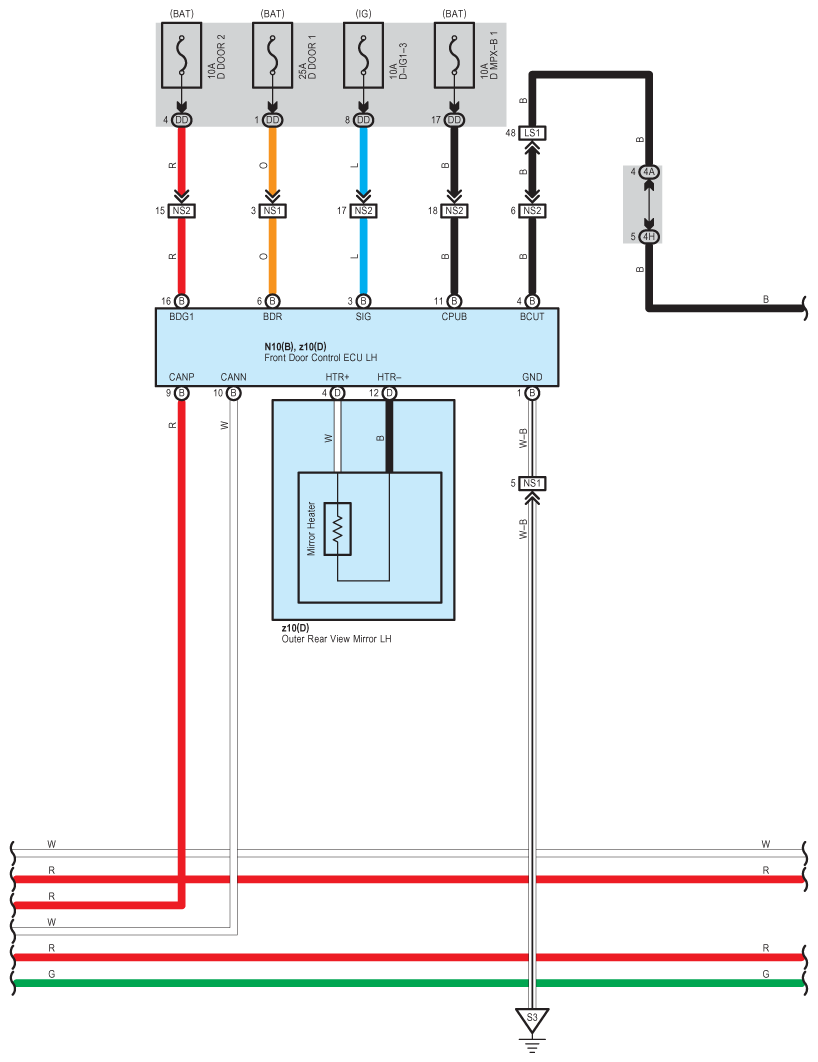

Fig 3: Rear Window Defogger And Mirror Heater System Wiring Diagram (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

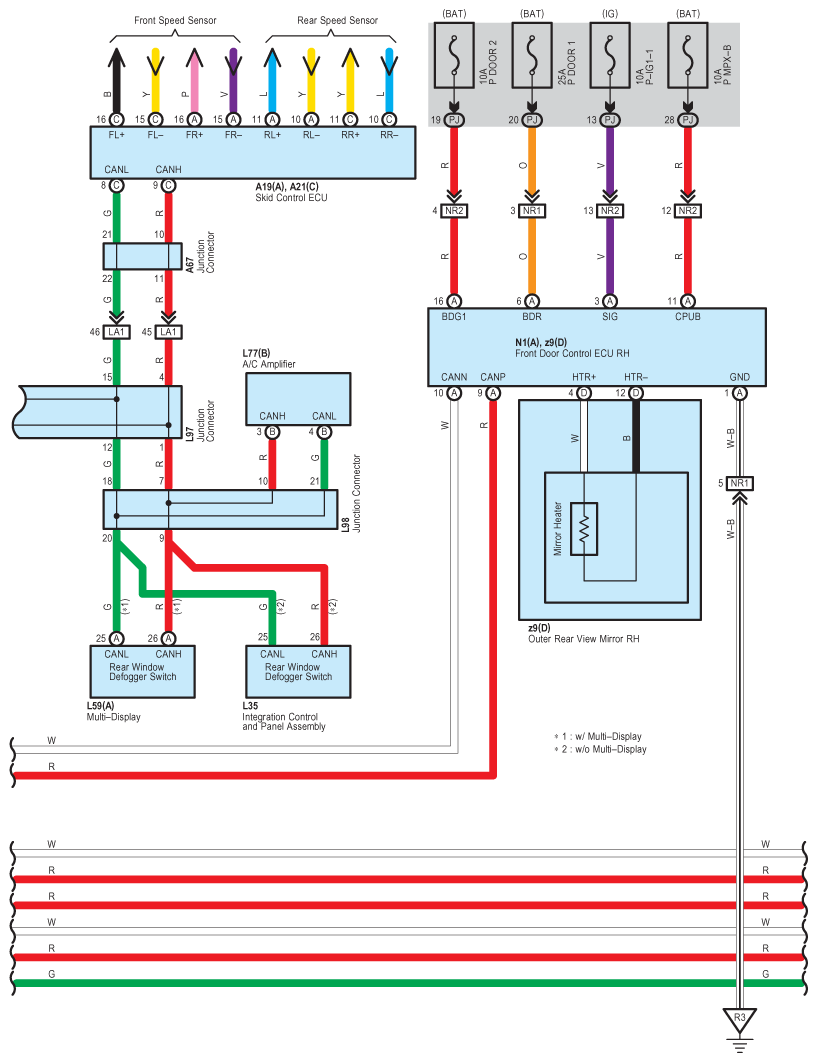

Fig 4: Rear Window Defogger And Mirror Heater System Wiring Diagram (4 Of 6)

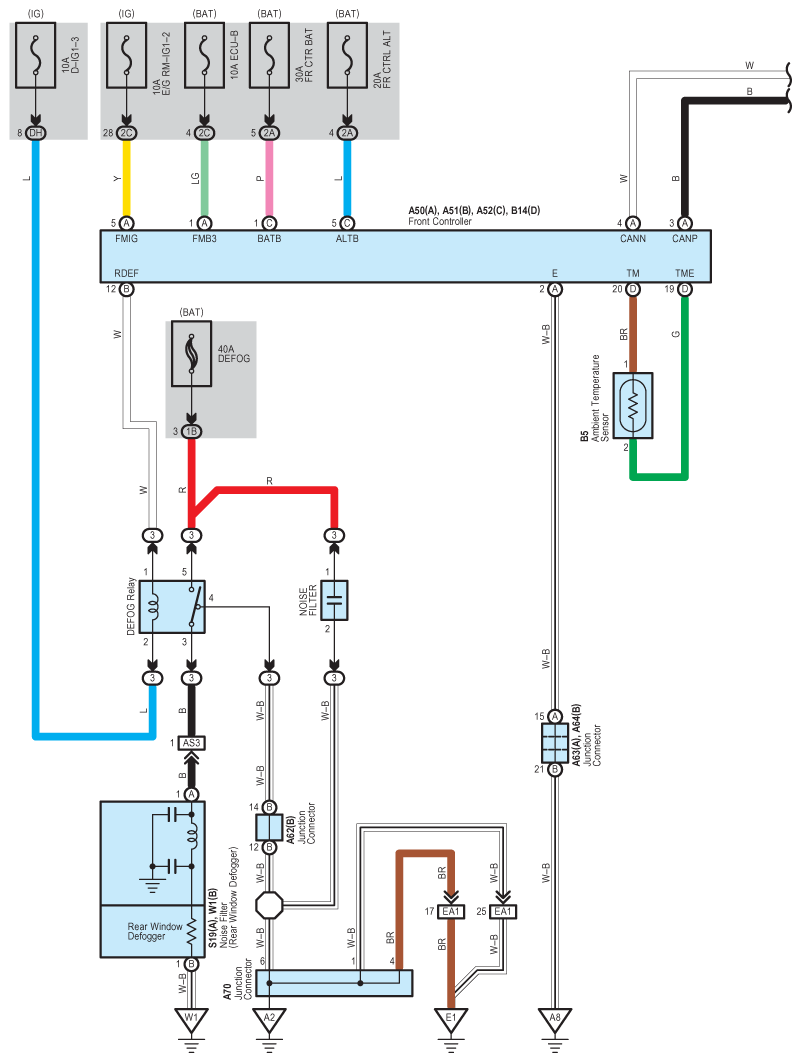

Fig 5: Rear Window Defogger And Mirror Heater System Wiring Diagram (5 Of 6)

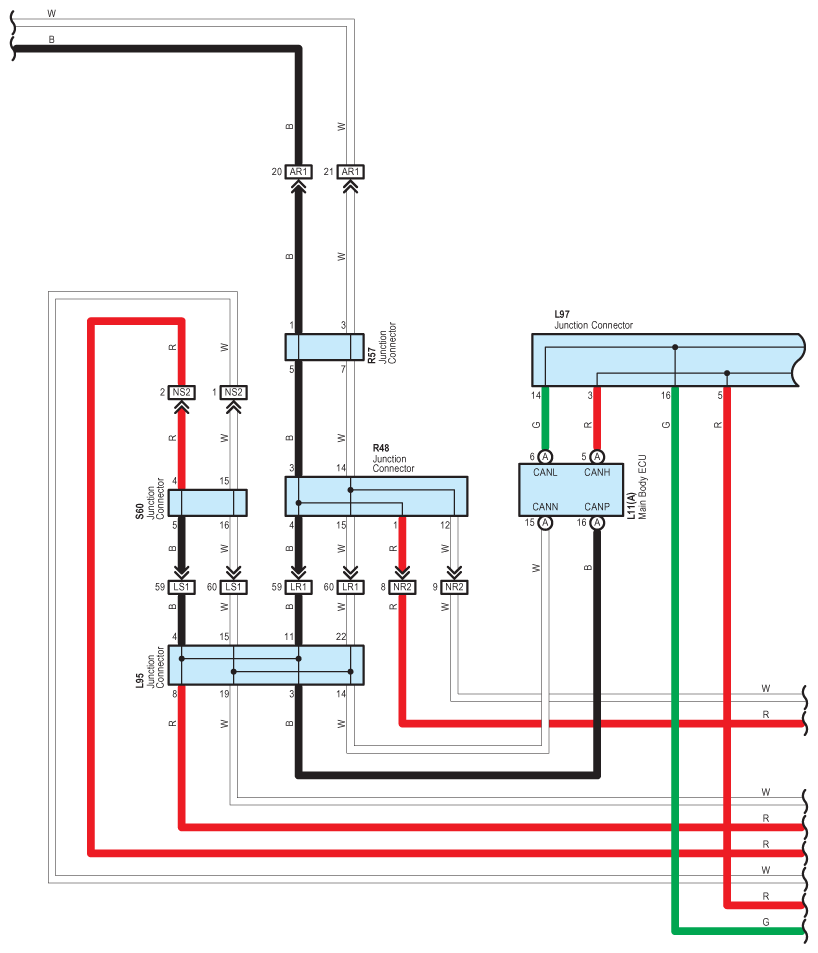

Fig 6: Rear Window Defogger And Mirror Heater System Wiring Diagram (6 Of 6)
