Fuel Sender Gauge Assembly: Components

Fig 1: Fuel Sender Gauge Assembly Replacement Components With Torque Specifications (1 Of 5)
G04945208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Fuel Sender Gauge Assembly Replacement Components With Torque Specifications (2 Of 5)
G04945209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Fuel Sender Gauge Assembly Components (3 Of 5)
G04945210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Fuel Sender Gauge Assembly Components (4 Of 5)
G04945211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

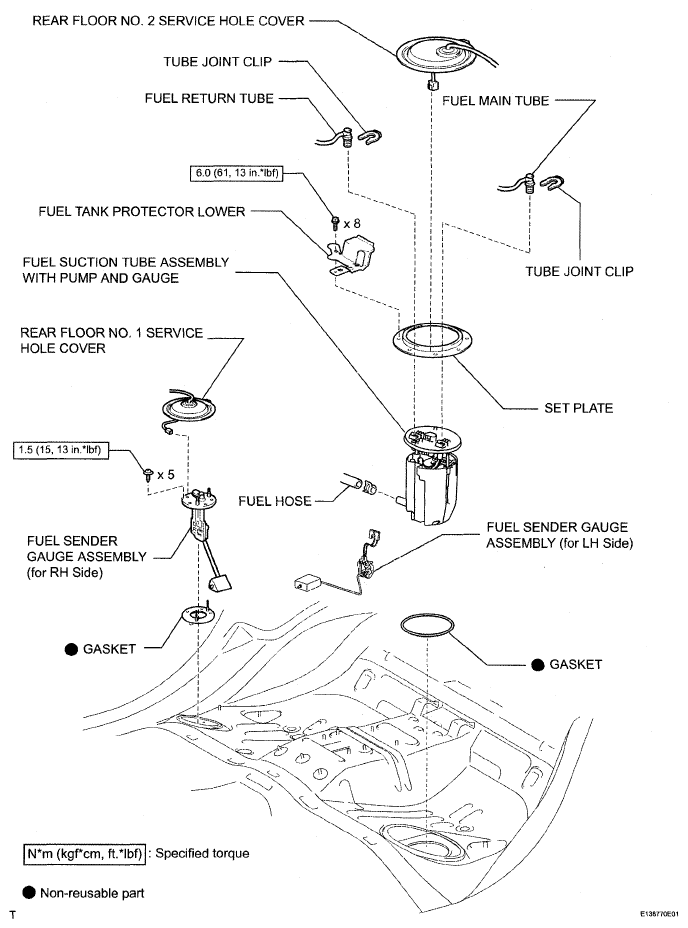

Fig 5: Fuel Sender Gauge Assembly Replacement Components With Torque Specifications (5 Of 5)
G04945212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
