Trip Switch: Inspection

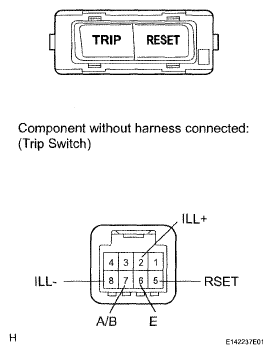

- INSPECT TRIP SWITCH
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TRIP SWITCHTester Connection Switch Condition Specified Condition 5 (RSET) - 6 (E) RESET ON(Pushed) Below 200 Ω 5 (RSET) - 6 (E) RESET OFF (Not pushed) 1MΩ or higher 7 (A/B) - 6 (E) TRIP ON (Pushed) Below 200 Ω 7 (A/B) - 6 (E) TRIP OFF (Not pushed) 1MΩ or higher Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If the result is not as specified, replace the switch.
- Inspect the switch illumination.
- Connect the battery positive (+) lead to terminal 2 (ILL+) and the negative (-) lead to terminal 8 (ILL-), then check that the light comes on.
OK: LED comes on.
If the result is not as specified, replace the LED.
- Connect the battery positive (+) lead to terminal 2 (ILL+) and the negative (-) lead to terminal 8 (ILL-), then check that the light comes on.
- Measure the resistance according to the value(s) in the table below.
