Inspection Procedure

1. Use the Data List to check if the D-IG1 relay is functioning properly.
   1. Intelligent tester

      MAIN BODY

      INTELLIGENT TESTER MAIN BODY REFERENCE



      Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
      IG1 RELAY MON1	D-IG1 relay outer relay monitor/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-

   2. Techstream

      Main Body

      TECHSTREAM MAIN BODY REFERENCE



      Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
      IG1 Relay Monitor (Outside)	D-IG1 relay outer relay monitor/ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-

      OK: When the engine switch is turned on (IG), ON is displayed on the tester.

NG: Go to step   3

OK: GO TO NEXT STEP

1. Ensure the key is inside the cabin.
2. Check that the power source mode changes as shown below each time the engine switch is pushed.

   OK: off → on (ACC) → on (IG) → off

NG: GO TO  POWER SOURCE MODE DOES NOT CHANGE

OK: NORMAL

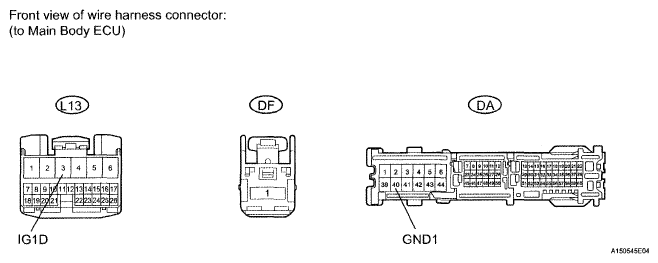

Fig 1: Identifying Connector Terminals Of Main Body ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the L13, DA and DF main body ECU connectors.
2. Measure the resistance and voltage according to the value(s) in the table below.

   Standard resistance

   MAIN BODY ECU - BODY GROUND RESISTANCE



   Tester Connection	Condition	Specified Condition
   L13-3(IG1D)-DA-32	Always	Below 1 Ω
   L13-3 (IG1D) or DA-32 - Body ground	Always	10 kΩ or higher
   DA-40 - Body ground	Always	Below 1 Ω

   Standard voltage

   MAIN BODY ECU - BODY GROUND VOLTAGE



   Tester Connection	Condition	Specified Condition
   DF-1 - Body ground	Always	11 to 14 V

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE MAIN BODY ECU
