Auxiliary Emission Control Systems: Canister: Installation

INSTALL CANISTER
1. Connect the purge line hose to the charcoal canister.
2. Attach the 2 clamps.

  Fig 1: Identifying Purge Line Hose Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the canister with the 4 bolts and 2 plastic nuts.
  Torque: 21 N*m (215 kgf*cm, 15 ft.*lbf)

  Fig 2: Locating Canister Bolts And Plastic Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the connector (leak detection pump).
5. Connect the purge line hose to the pipe.

  Fig 3: Locating Leak Detection Pump Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

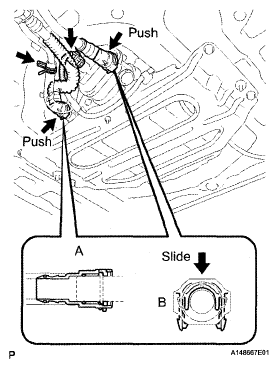

6. Connect the air inlet line tube (leak detection pump) and vent line tube to the pipe, as shown in A in the illustration. Then push up the retainer to lock the claws, as shown in B in the illustration.
  NOTE:
  - Check that there are no scratches or foreign objects around the connected part of the fuel tube connector and pipe before performing this work.
  - After connecting the fuel tank vent tube, check that the fuel tank vent tube is securely connected by pulling the fuel tube connector and pipe.

    Fig 4: Locating Air Inlet Line Tube
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FLOOR NO. 1 UNDER COVER
1. Install the under cover with the 5 nuts and 5 clips.
2. Install the 2 hole plugs.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
REMOVE COWL TOP VENTILATOR LOUVER RH (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

  Fig 5: Locating Under Cover With Nuts And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
