Cooling System (Mechanical): Cooling: Radiator: Installation
- INSTALL RADIATOR SUPPORT LOWER
- Install the 2 radiator support lowers.
- INSTALL RADIATOR SUPPORT CUSHION
- Install the 2 support cushions.

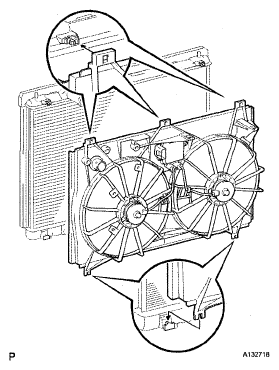

- INSTALL FAN SHROUD WITH FAN AND MOTOR
- Set the fan shroud with fan and motor to the radiator, and attach the 3 claws to install the fan shroud.
- INSTALL RADIATOR ASSEMBLY
- Install the radiator to the front crossmember.

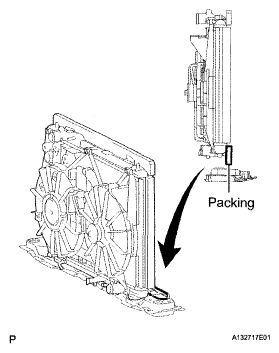

HINT:
Install the lower packing as shown in the illustration.
- Align the radiator with the A/C condenser, and then install the 4 bolts.
Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
- Attach the 3 clamps and connect the ECU's connector.
- Install the radiator to the front crossmember.
- INSTALL RADIATOR UPPER SUPPORT
- Attach the wire harness to the upper support with the 5 clamps.
- Install the upper support with the 5 bolts.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
- Attach the 2 clamps to the radiator support LH and RH side.
- Connect the 3 connectors.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- INSTALL HOOD LOCK ASSEMBLY (See INSTALLATION )
- INSTALL HOOD LOCK CONTROL CABLE COVER
- Attach the claw to install the cover.
- Install the 3 screws.
- INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)
- Install the sensor with the 3 bolts.
Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
- Connect the connector.
- Install the sensor with the 3 bolts.
- INSTALL RADIATOR RESERVOIR ASSEMBLY (See INSTALLATION )
- INSTALL ECM OUTLET DUCT (See INSTALLATION )
- CONNECT OIL COOLER OUTLET HOSE
HINT:
- The direction of the hose clamp is indicated in the illustration.
- Insert the outlet hose into the stopper. Set the hose clamp so that the clearance between the hose clamp and the stopper is within 2 to 7 mm (0.08 to 0.28 in).
- CONNECT OIL COOLER INLET HOSE
- CONNECT NO. 2 RADIATOR HOSE (See INSTALLATION )
- CONNECT NO. 1 RADIATOR HOSE (See INSTALLATION )
- INSTALL COOL AIR INTAKE DUCT SEAL
- Install the duct seal with the 4 clips.
- INSTALL NO. 1 AIR CLEANER INLET (See INSTALLATION )
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- INSTALL COWL TOP VENTILATOR LOUVER RH (See INSTALLATION )
- ADD ENGINE COOLANT (See COOLANT )
- INSPECT FOR COOLANT LEAK (See ON-VEHICLE INSPECTION )
- ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System) (See ADJUSTMENT )
- INSTALL RADIATOR GRILLE ASSEMBLY (See INSTALLATION )
- INSTALL ENGINE ROOM SIDE COVER RH (See INSTALLATION )
- INSTALL ENGINE ROOM SIDE COVER LH (See INSTALLATION )
- INSTALL AIR CLEANER INLET COVER (See INSTALLATION )
- INSTALL V-BANK COVER SUB-ASSEMBLY (See INSTALLATION )
- INSTALL NO. 1 ENGINE UNDER COVER (See COOLANT )
- PERFORM INITIALIZATION
- Perform initialization (see
INITIALIZATION
).NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
- Perform initialization (see
INITIALIZATION
).
