Intake Air Control Valve Actuator: Components

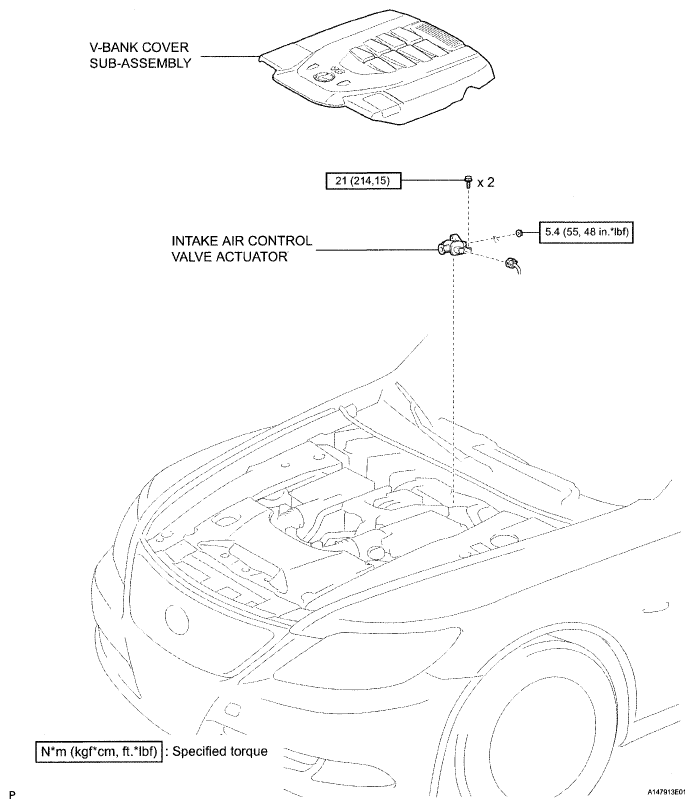

Fig 1: Intake Air Control Valve Actuator Replacement Components With Torque Specifications
G04948153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
