FUEL INJECTOR (for Direct Injection): Components

Fig 1: Fuel Relief Valve Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Fuel Injector Replacement Components With Torque Specifications - For Port Injection (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Fuel Pump Replacement Components With Torque Specifications - For High Pressure (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

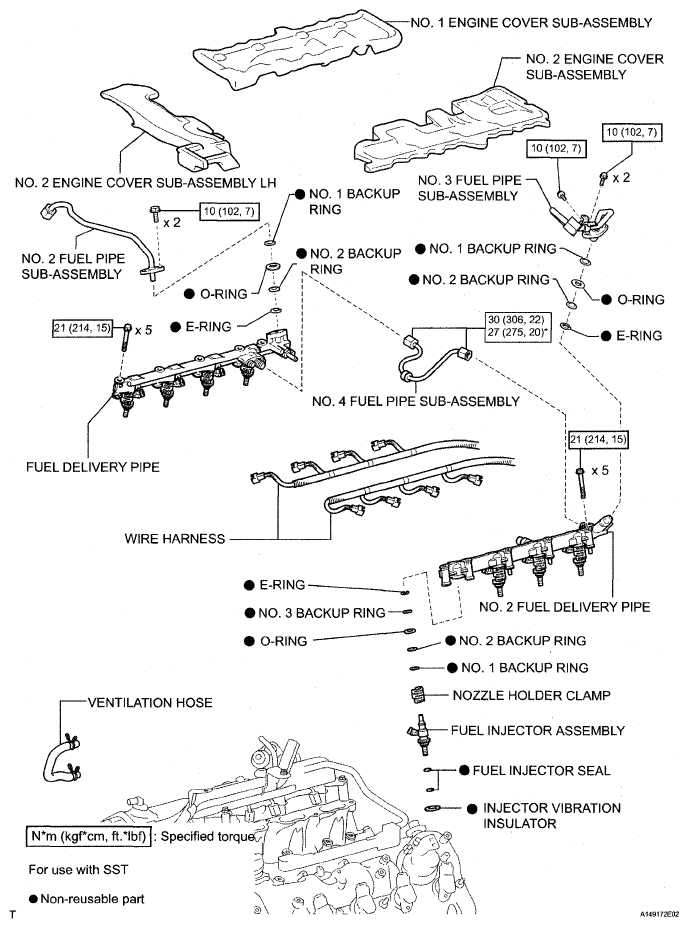

Fig 5: Fuel Injector Replacement Components With Torque Specifications - For Direct Injection (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
