FUEL PUMP (for High Pressure): Components

Fig 1: Fuel Relief Valve Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Fuel Injector Replacement Components With Torque Specifications - For Port Injection (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

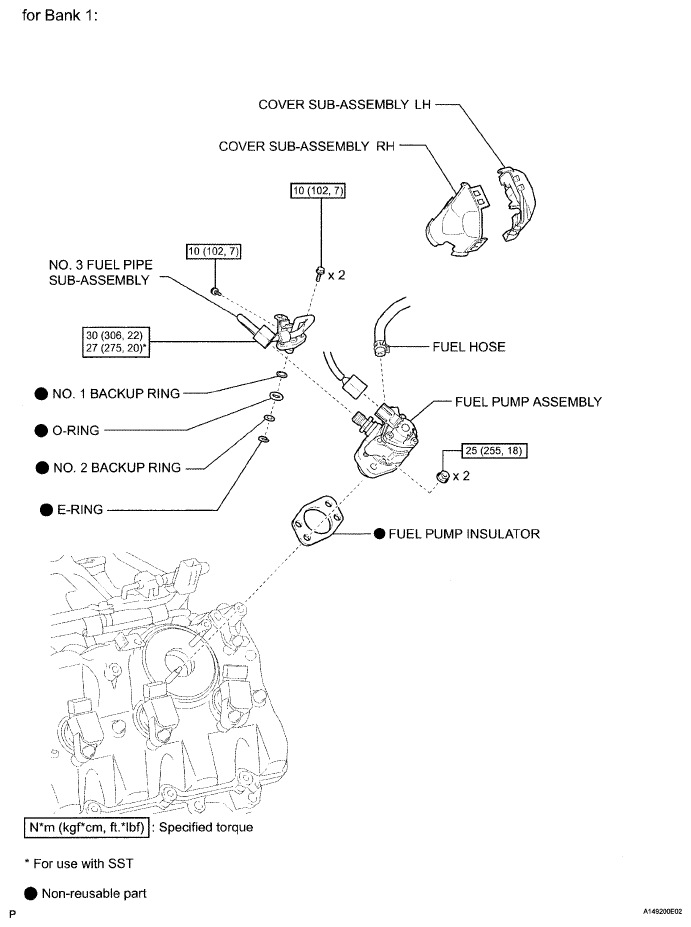

Fig 4: Fuel Pump Replacement Components With Torque Specifications - For High Pressure (4 Of 6)

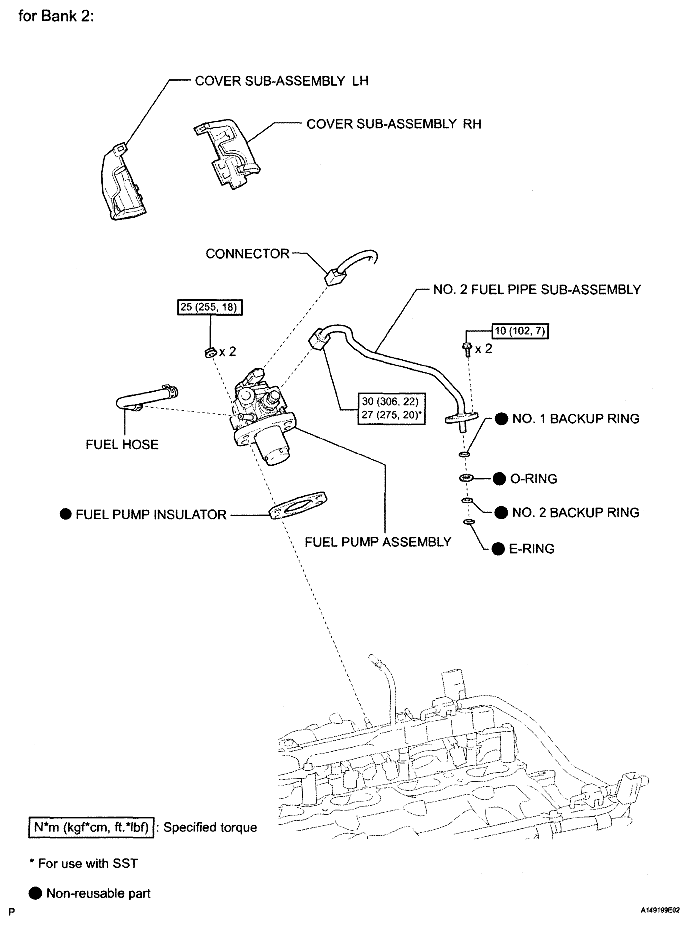

Fig 5: Fuel Pump Replacement Components With Torque Specifications - For High Pressure (5 Of 6)

Fig 6: Fuel Pump Replacement Components With Torque Specifications - For High Pressure (6 Of 6)
