EVAP System: Wiring Diagram

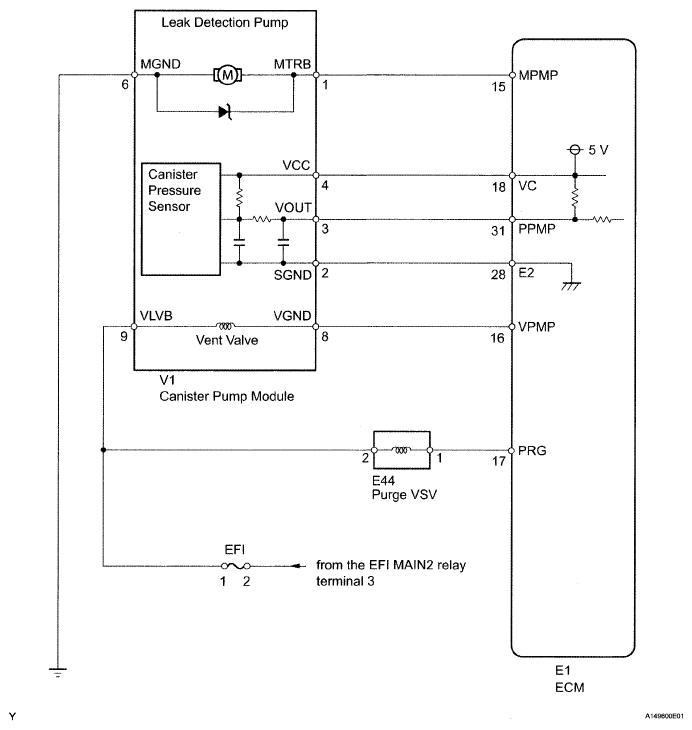

Fig 1: EVAP System - Wiring Diagram
G04942940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
