Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

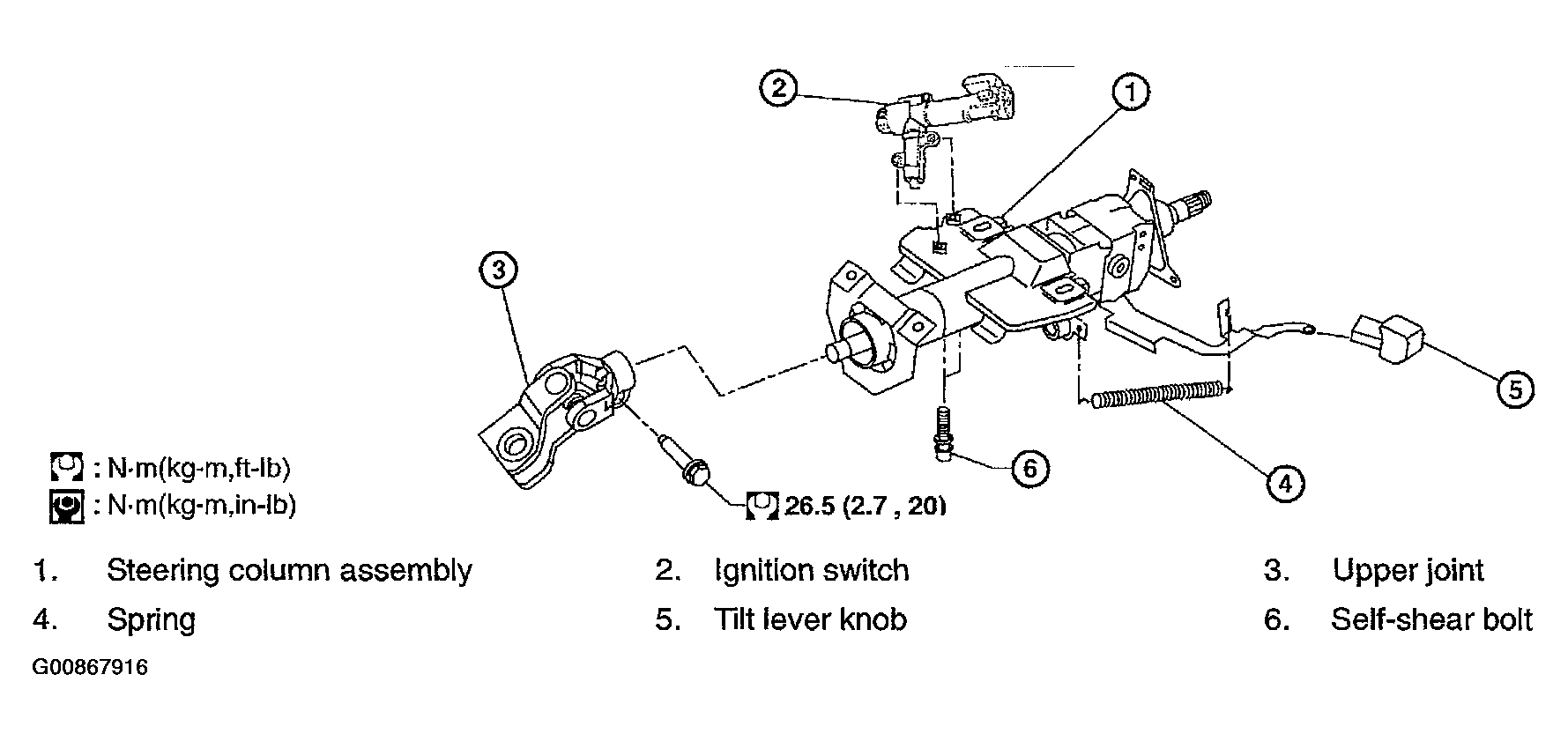

Fig 1: Disassembled View Of Steering Column Assembly with Torque Specs
G00867916Courtesy of NISSAN MOTOR CO., U.S.A.
