Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

With ignition switch OFF, connect CONSULT-II to data link connector on vehicle, and turn ON ignition switch.
Touch "START".

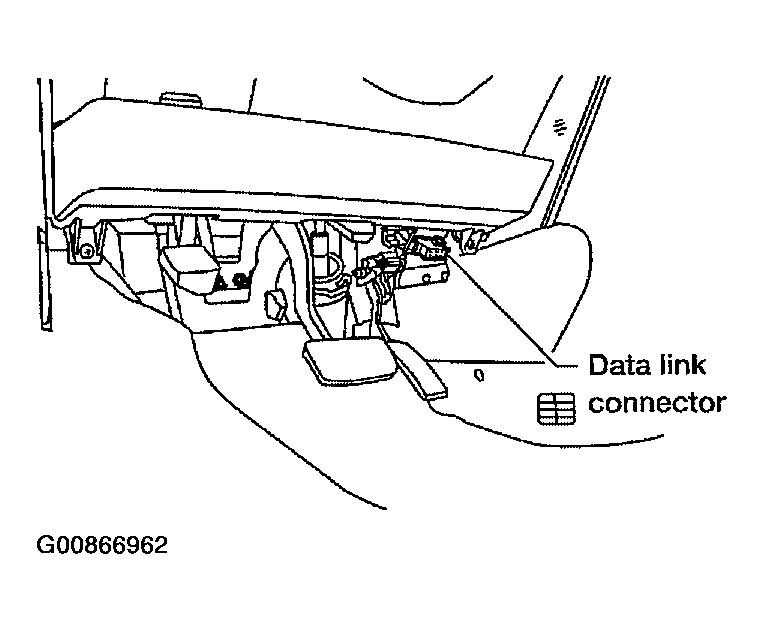

Fig 1: Connecting Consult-II To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.

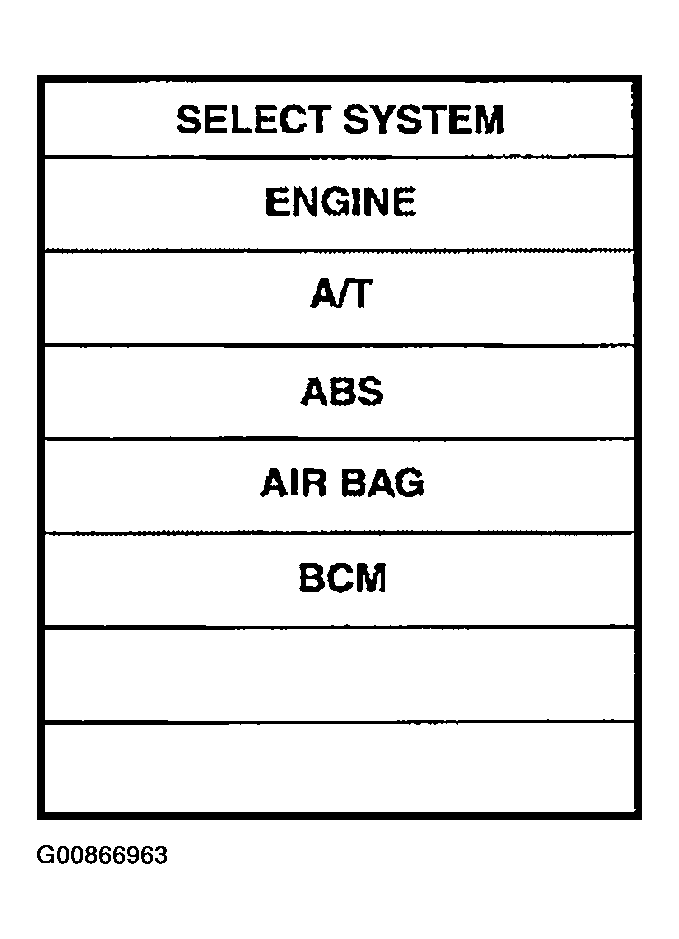

Fig 2: Touch "BCM" on "Select System" Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select item to be diagnosed on "SELECT TEST ITEM" screen.

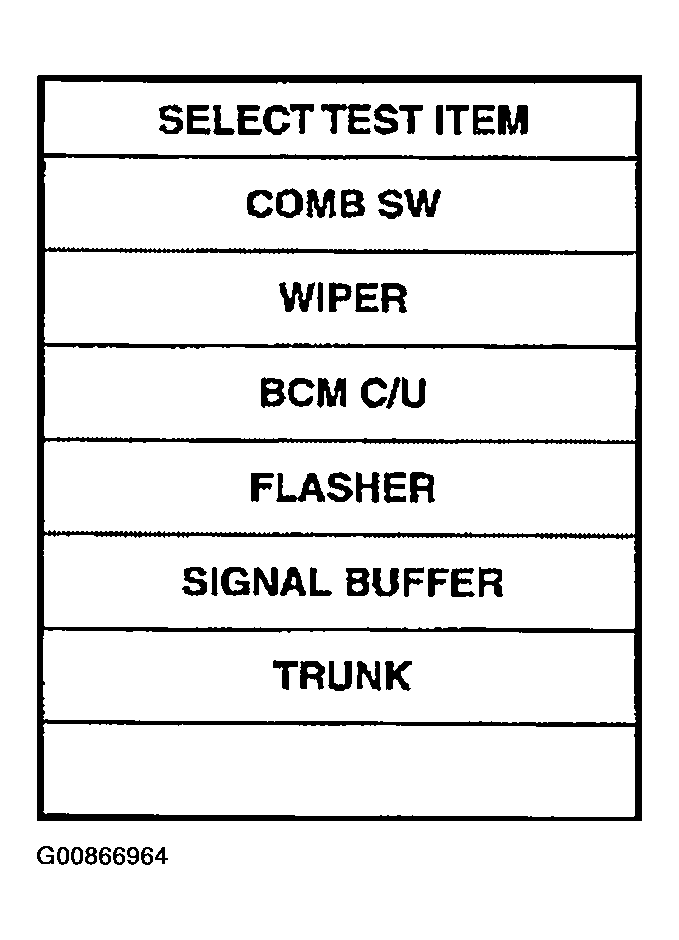

Fig 3: "Select Test Item" Screen Display

Courtesy of NISSAN MOTOR CO., U.S.A.
