Symptom Chart

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Always check the "Trouble Diagnosis Procedure" before troubleshooting. Refer to "TROUBLE DIAGNOSIS PROCEDURE ".
Always check key fob battery before replacing key fob. Refer to "KEY FOB BATTERY AND FUNCTION CHECK ".
The panic alarm operation and trunk lid opener operation of remote keyless entry system do not activate with the ignition key inserted in the ignition key cylinder.
Use Remote Keyless Entry Tester J-43241 (follow instructions on tester) to check operation of key fob before replacing key fob.

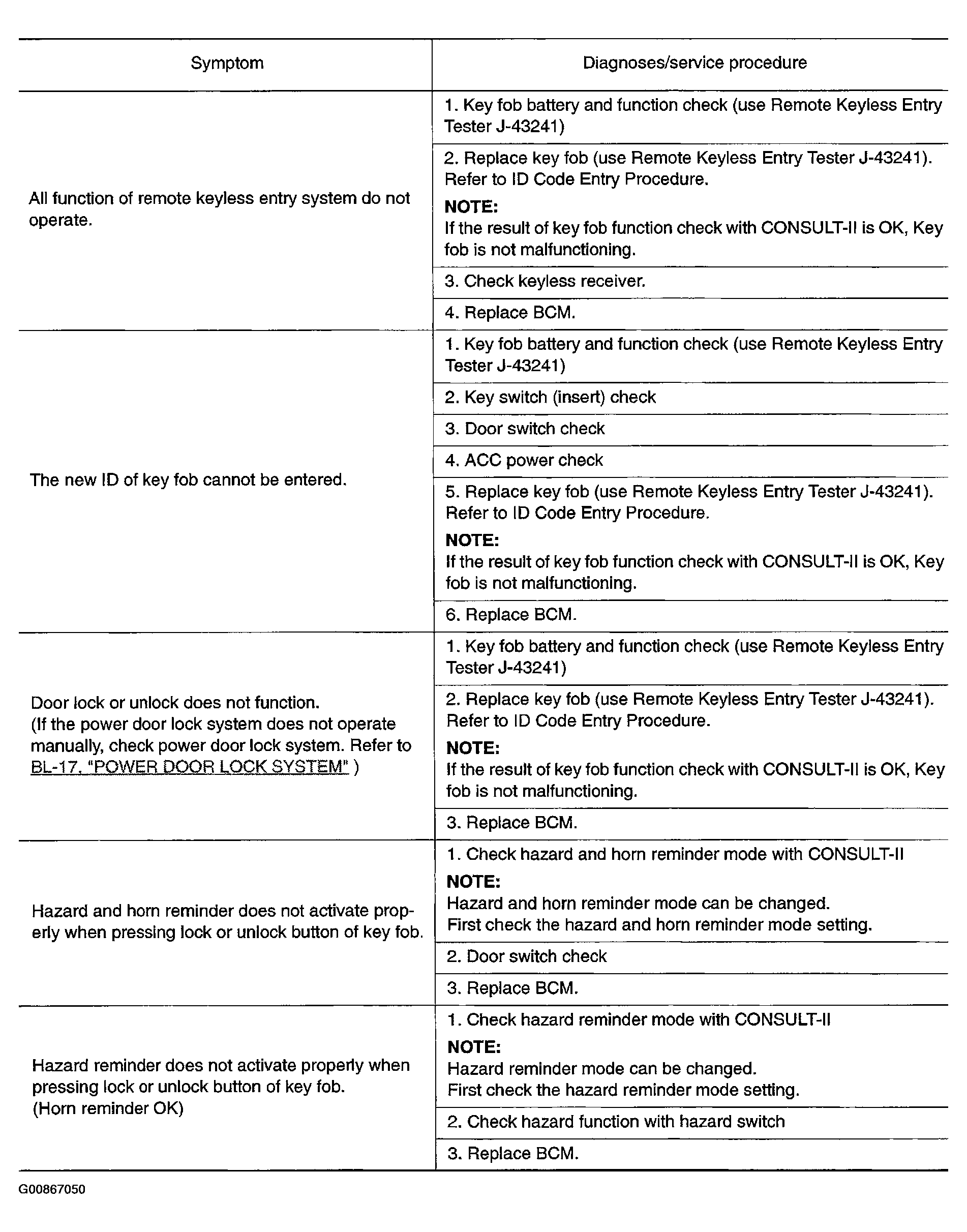

Fig 1: Trouble Diagnoses Symptom Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

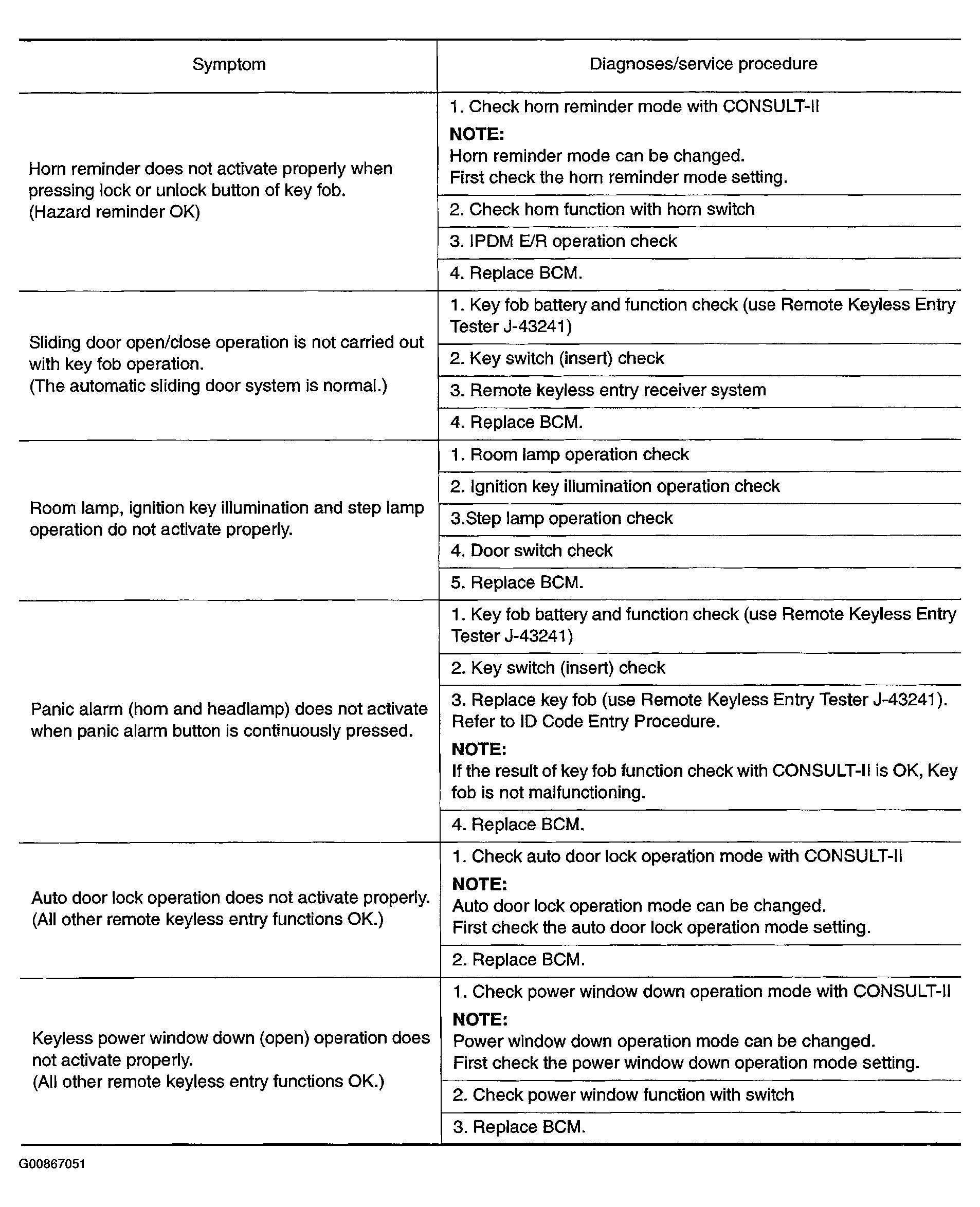

Fig 2: Trouble Diagnoses Symptom Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
