Component Location Graphics

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

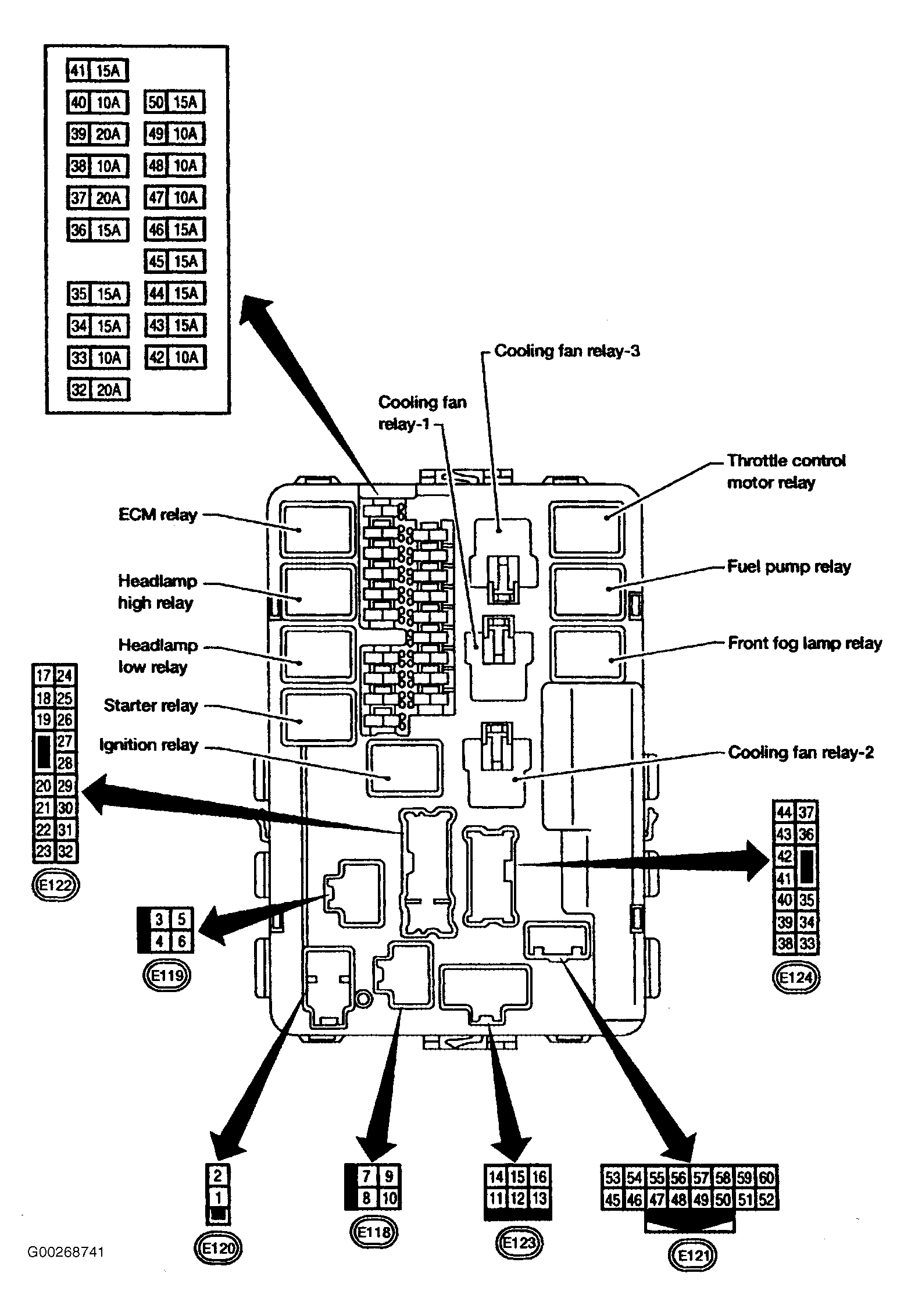

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room)

G00268741

Courtesy of NISSAN MOTOR CO., U.S.A.

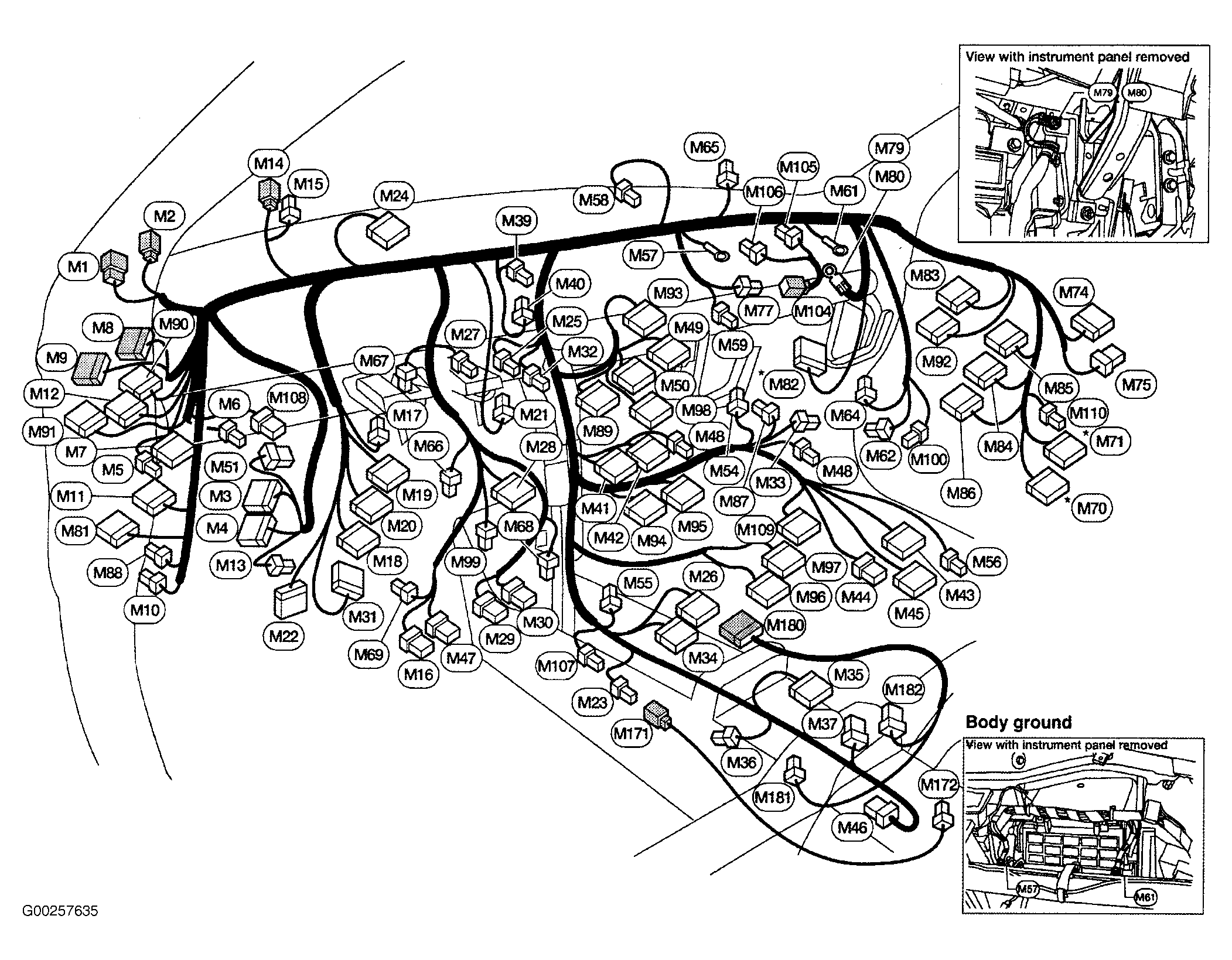

Fig 2: Dash & Center Console

G00257635

Courtesy of NISSAN MOTOR CO., U.S.A.

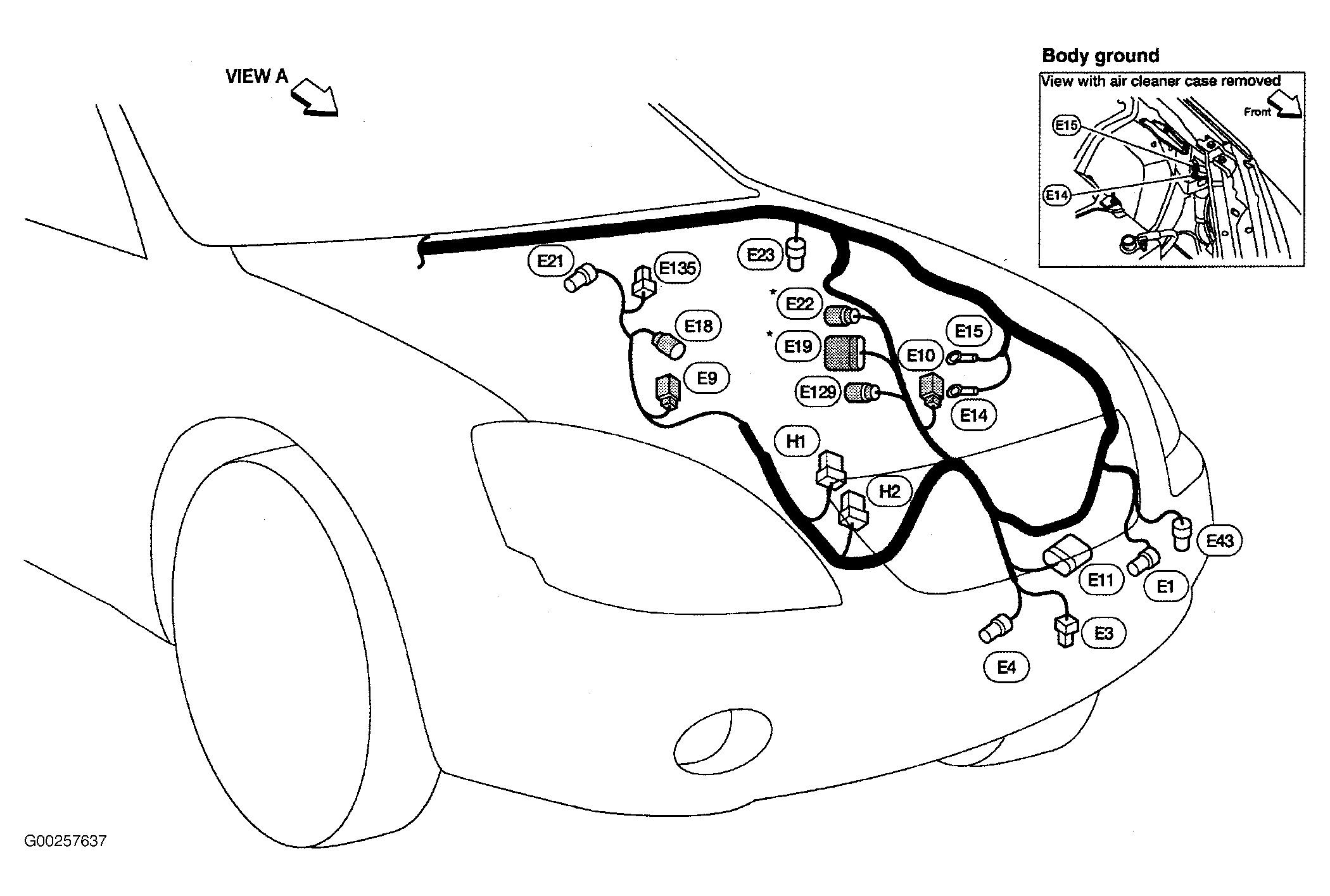

Fig 3: Left Side Of Engine Compartment

G00257637

Courtesy of NISSAN MOTOR CO., U.S.A.

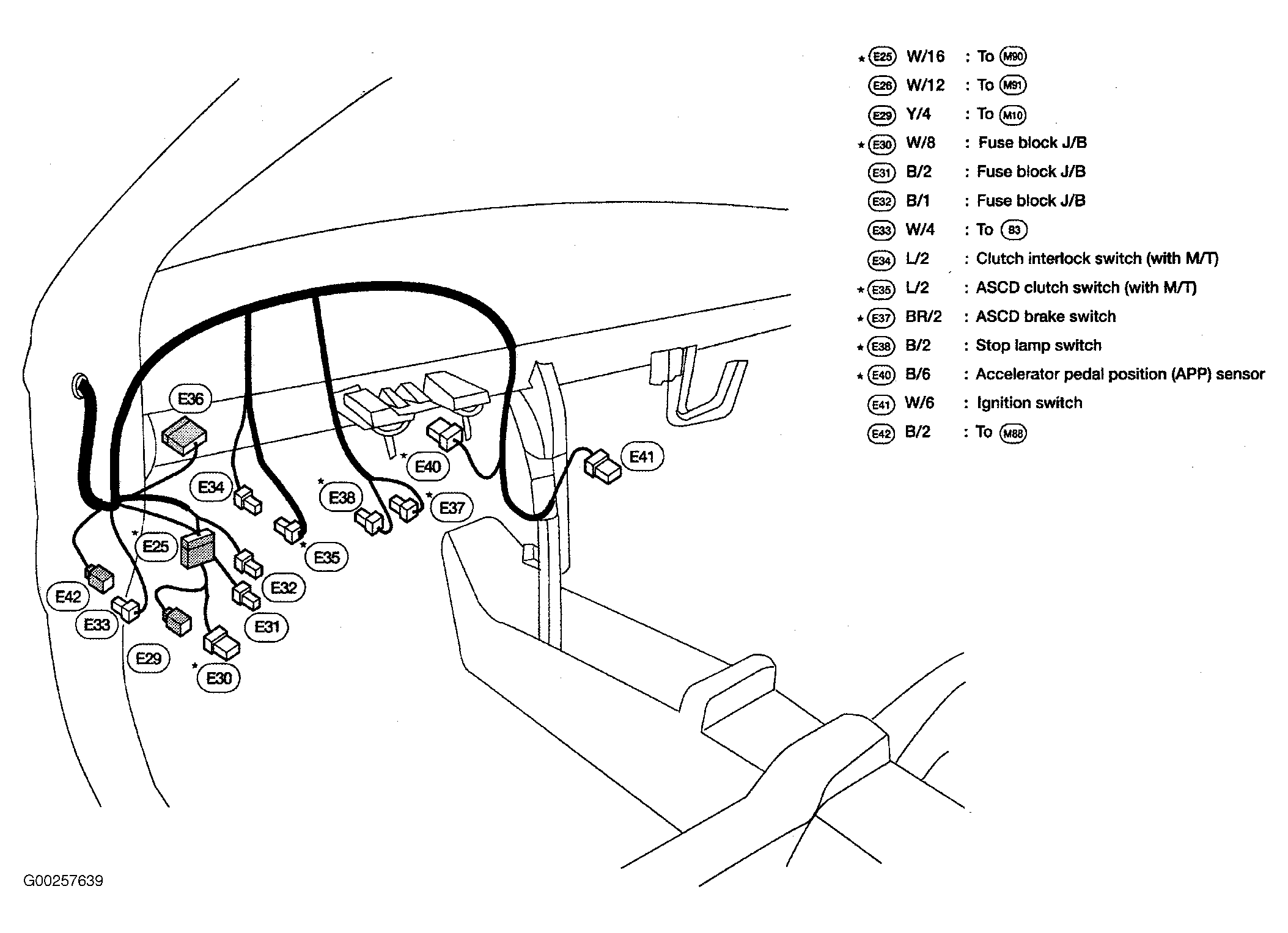

Fig 4: Left Side Of Dash

G00257639

Courtesy of NISSAN MOTOR CO., U.S.A.

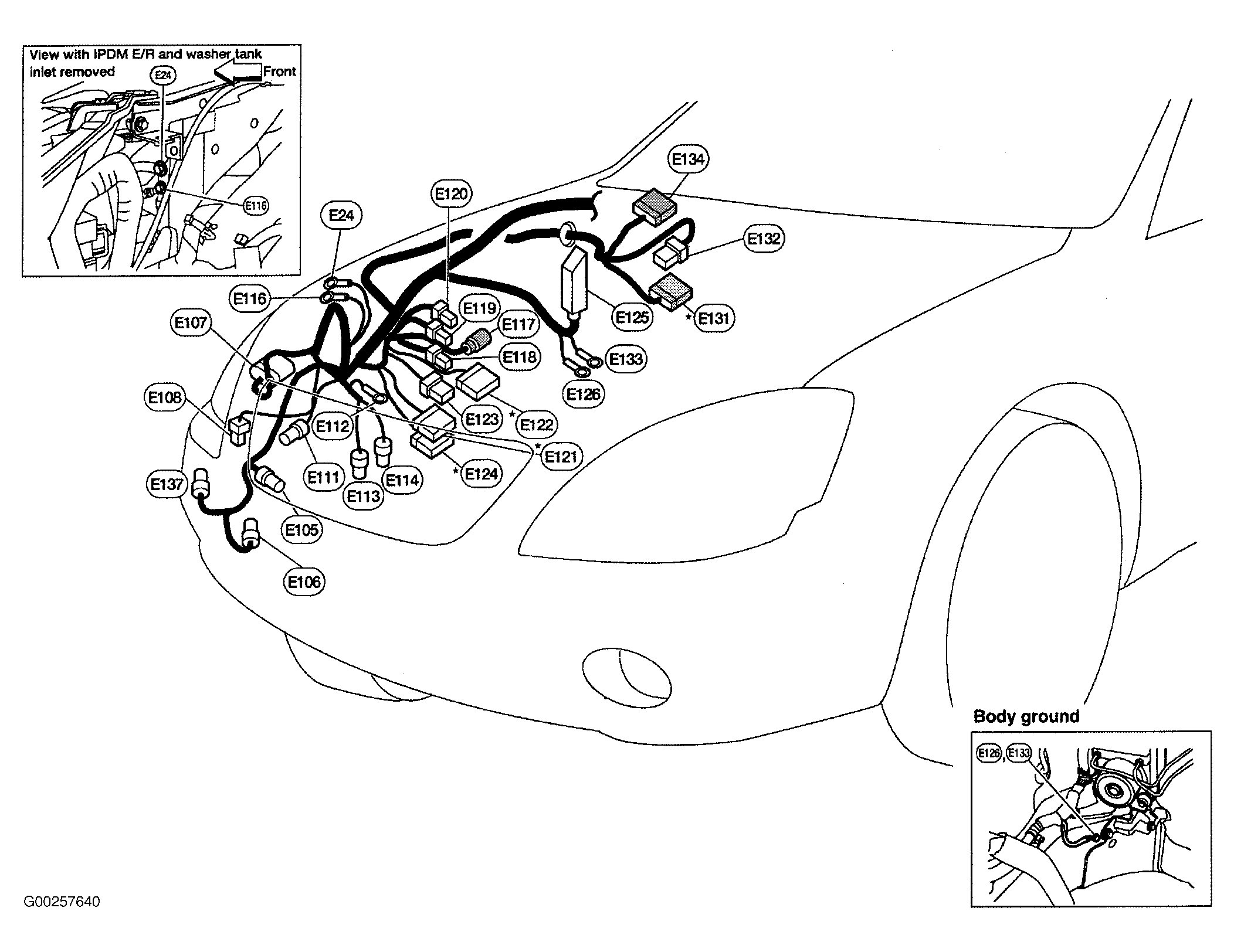

Fig 5: Right Side Of Engine Compartment

G00257640

Courtesy of NISSAN MOTOR CO., U.S.A.

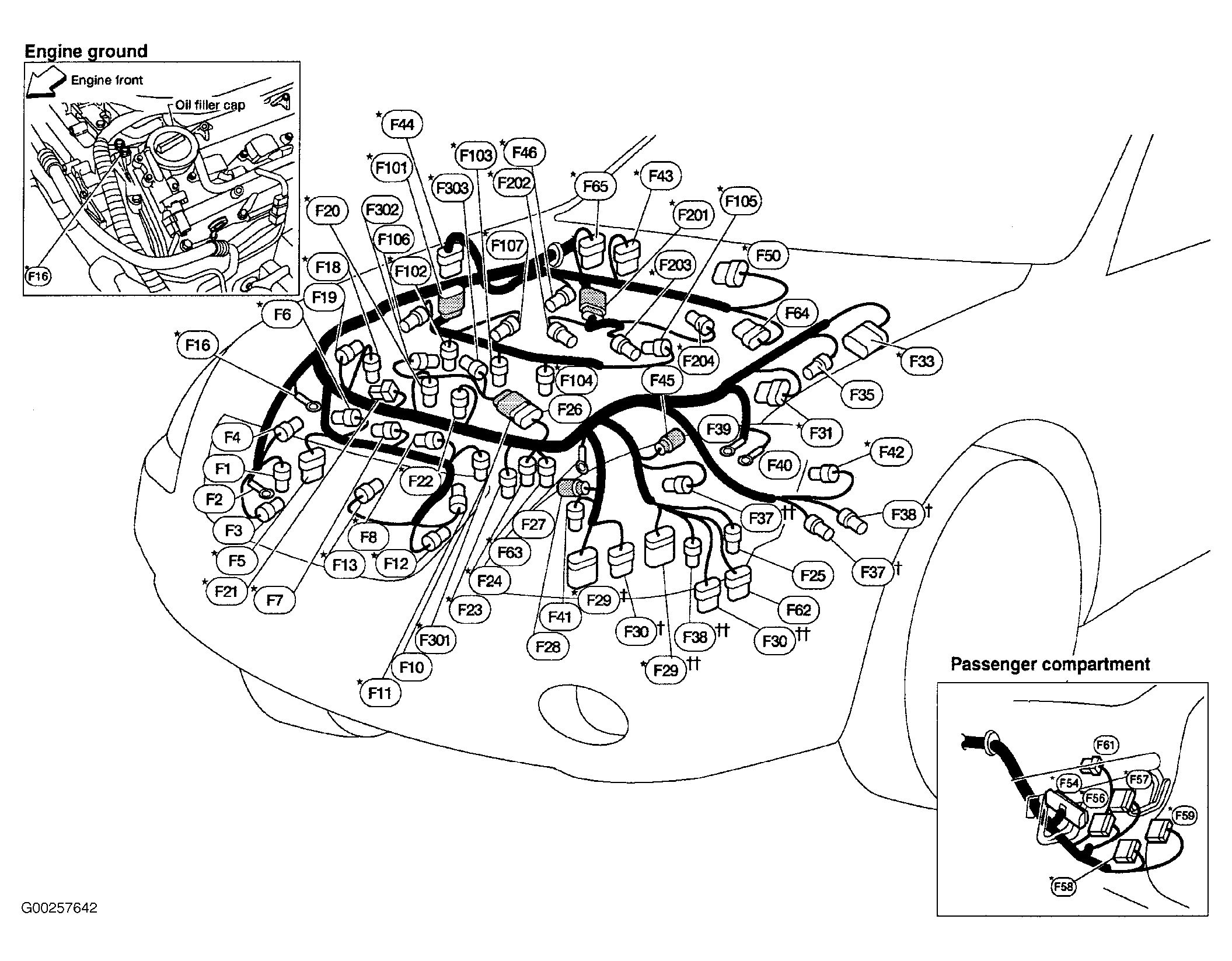

Fig 6: Engine & Right End Of Dash

G00257642

Courtesy of NISSAN MOTOR CO., U.S.A.

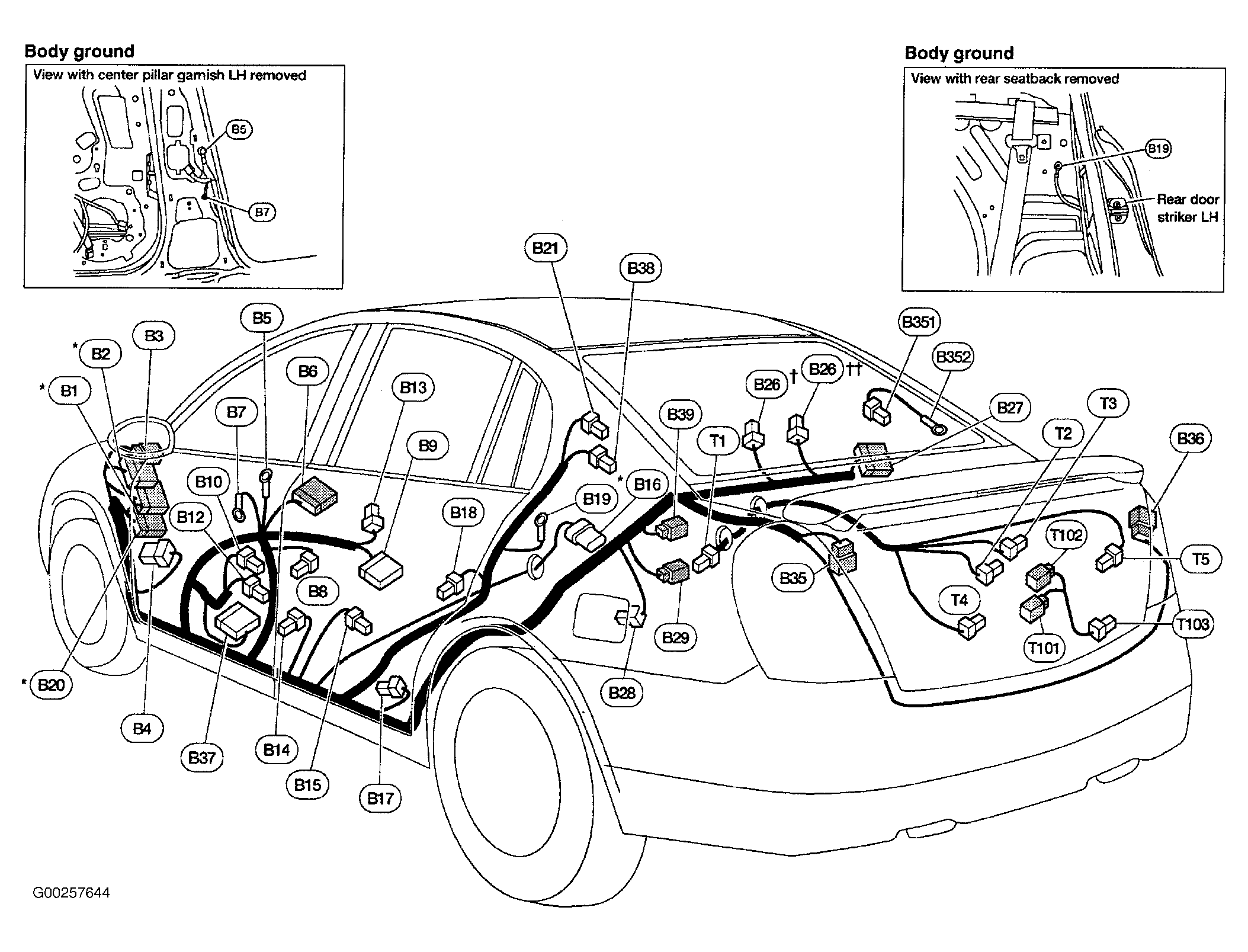

Fig 7: Left Side Of Body & Luggage Compartment Lid Harness

G00257644

Courtesy of NISSAN MOTOR CO., U.S.A.

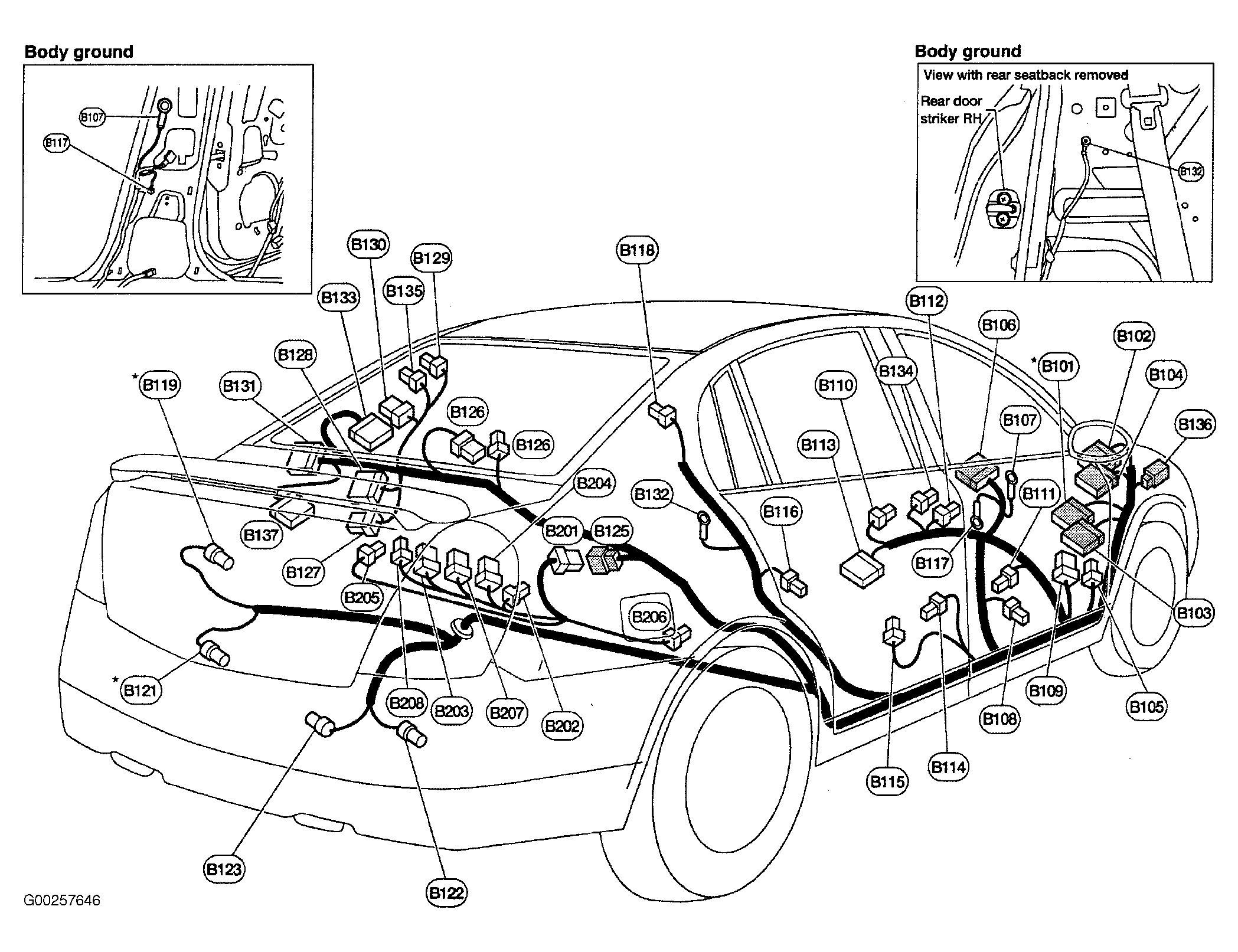

Fig 8: Right Side Of Body & Luggage Compartment Harness

G00257646

Courtesy of NISSAN MOTOR CO., U.S.A.

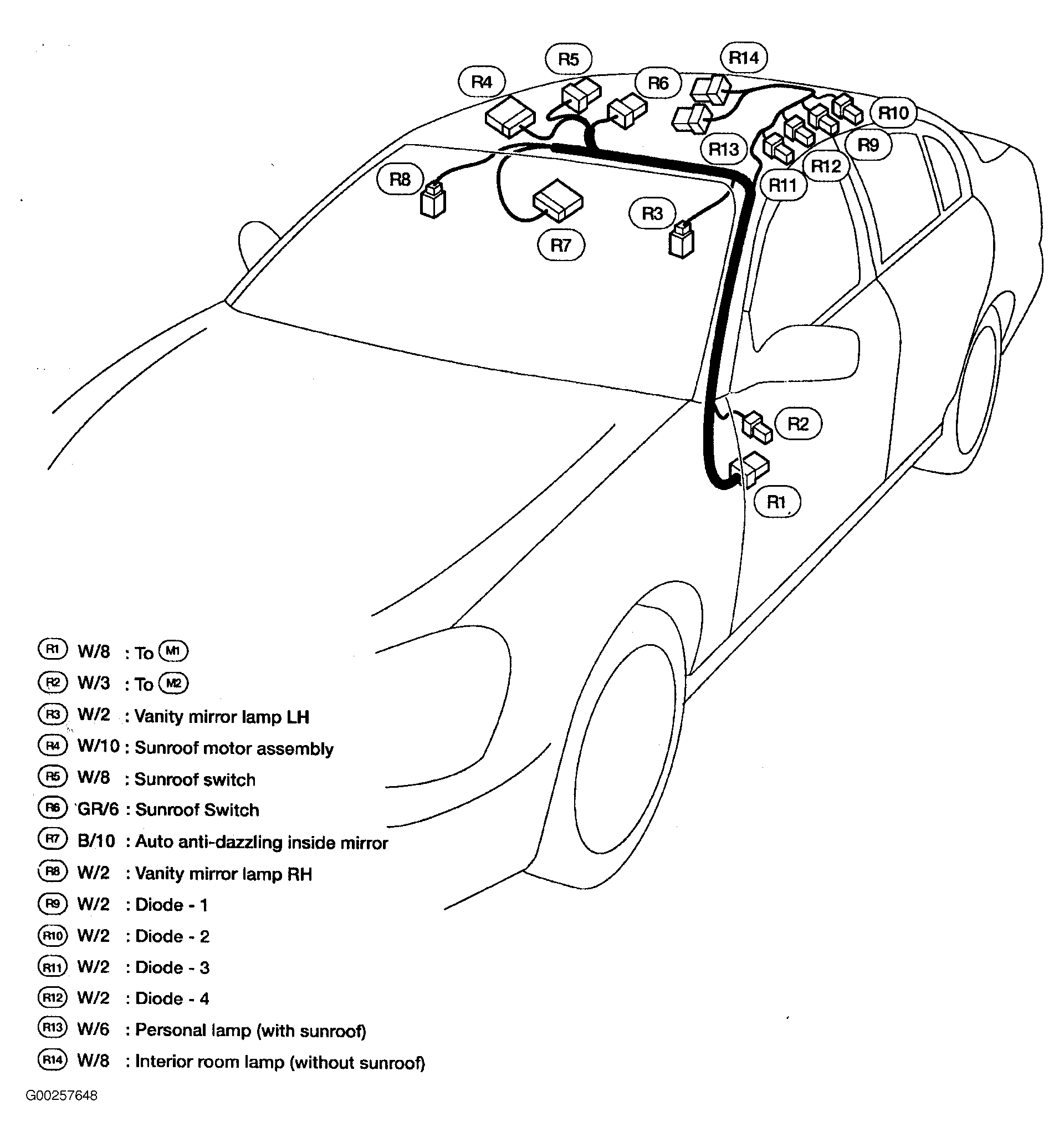

Fig 9: Roof

G00257648

Courtesy of NISSAN MOTOR CO., U.S.A.

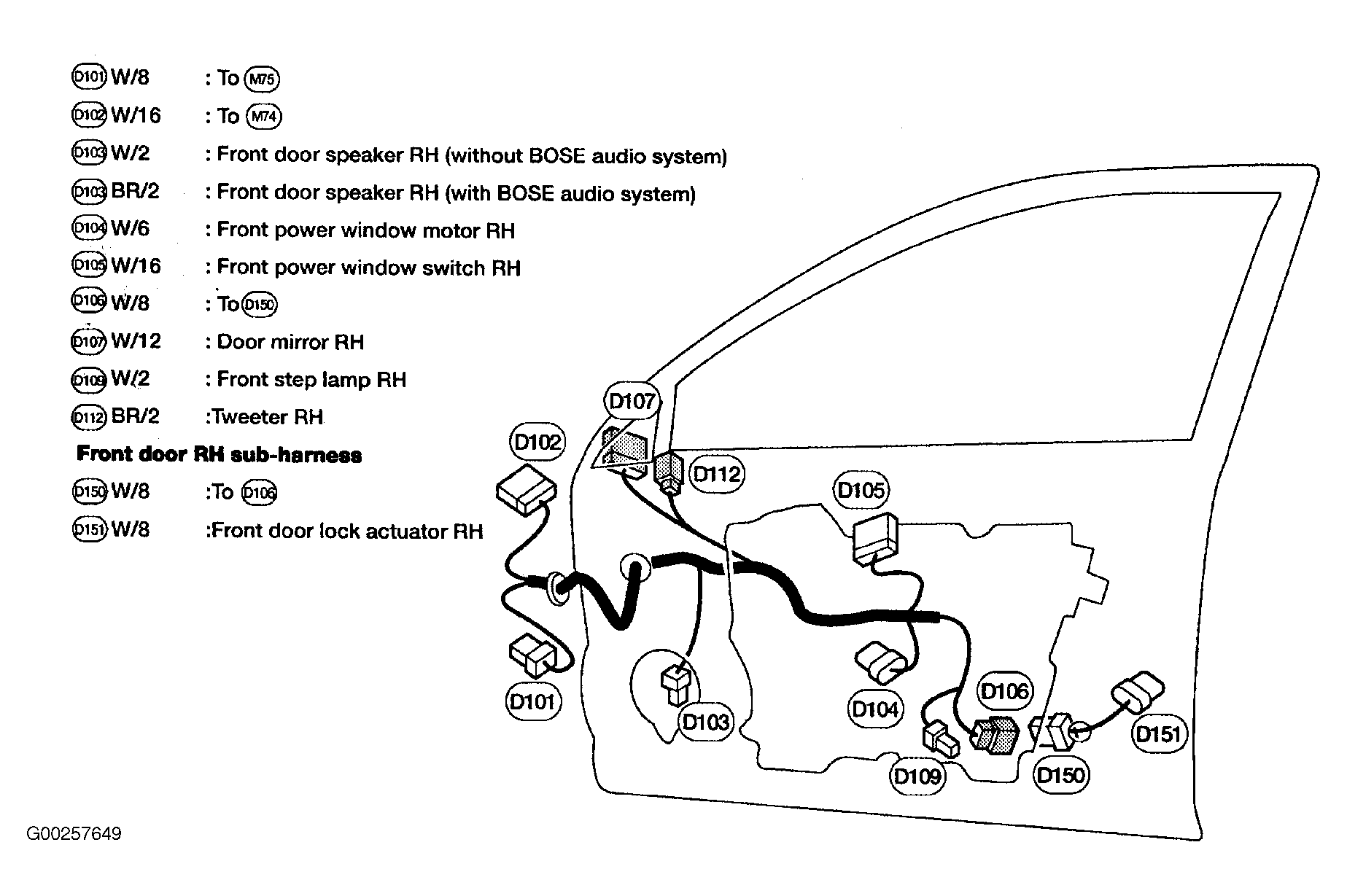

Fig 10: Right Front Door

G00257649

Courtesy of NISSAN MOTOR CO., U.S.A.

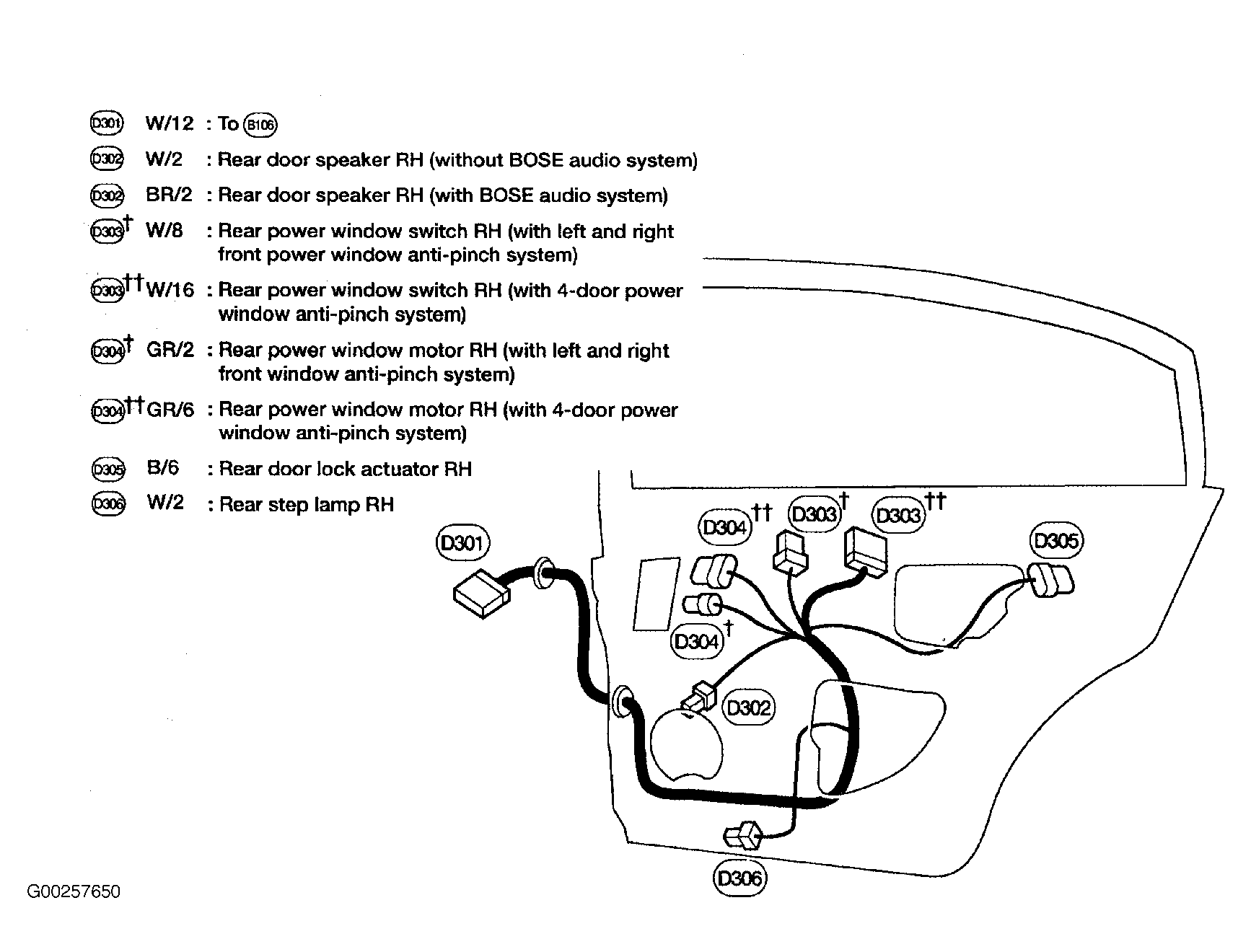

Fig 11: Right Rear Door

G00257650

Courtesy of NISSAN MOTOR CO., U.S.A.

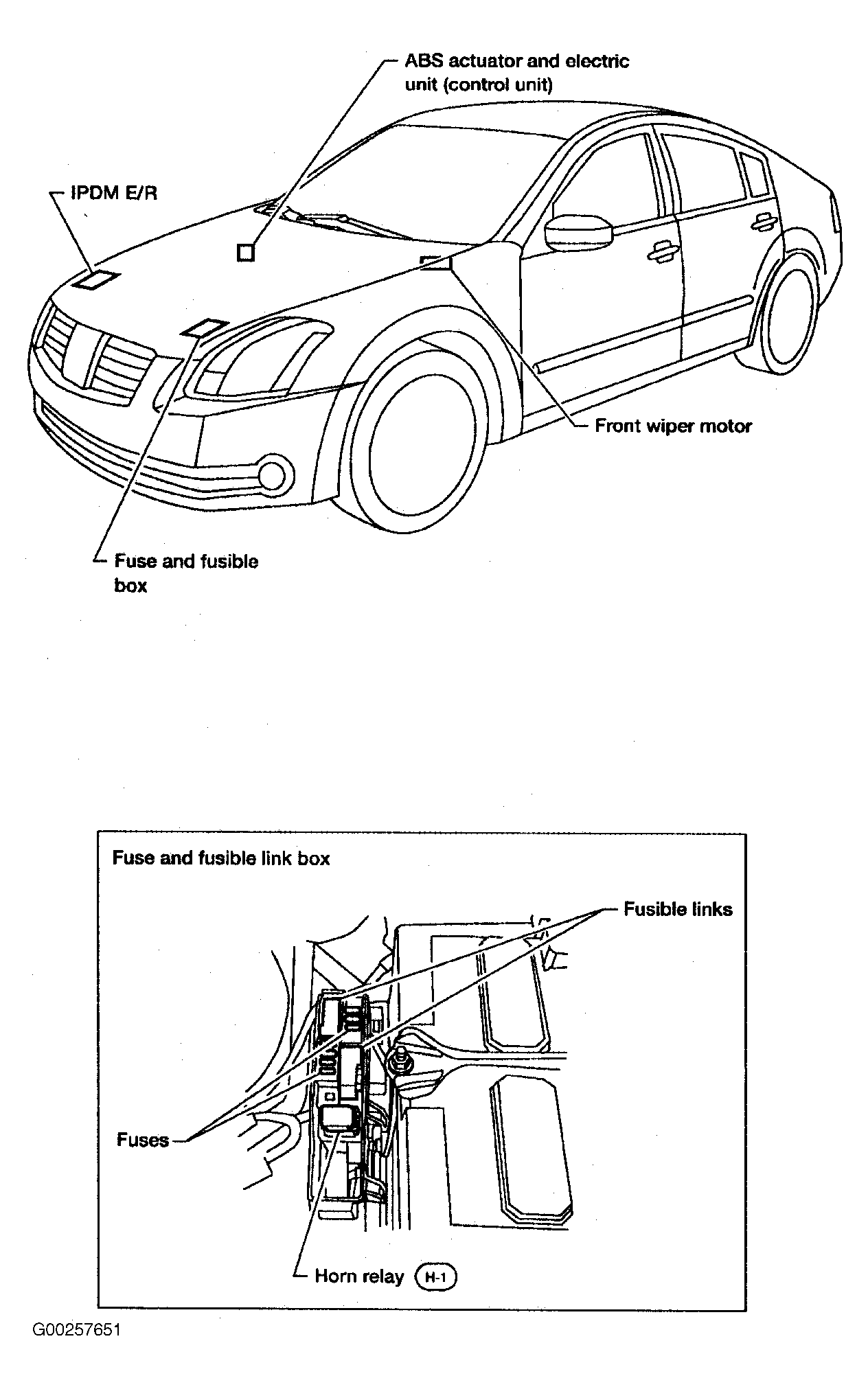

Fig 12: Engine Compartment

G00257651

Courtesy of NISSAN MOTOR CO., U.S.A.

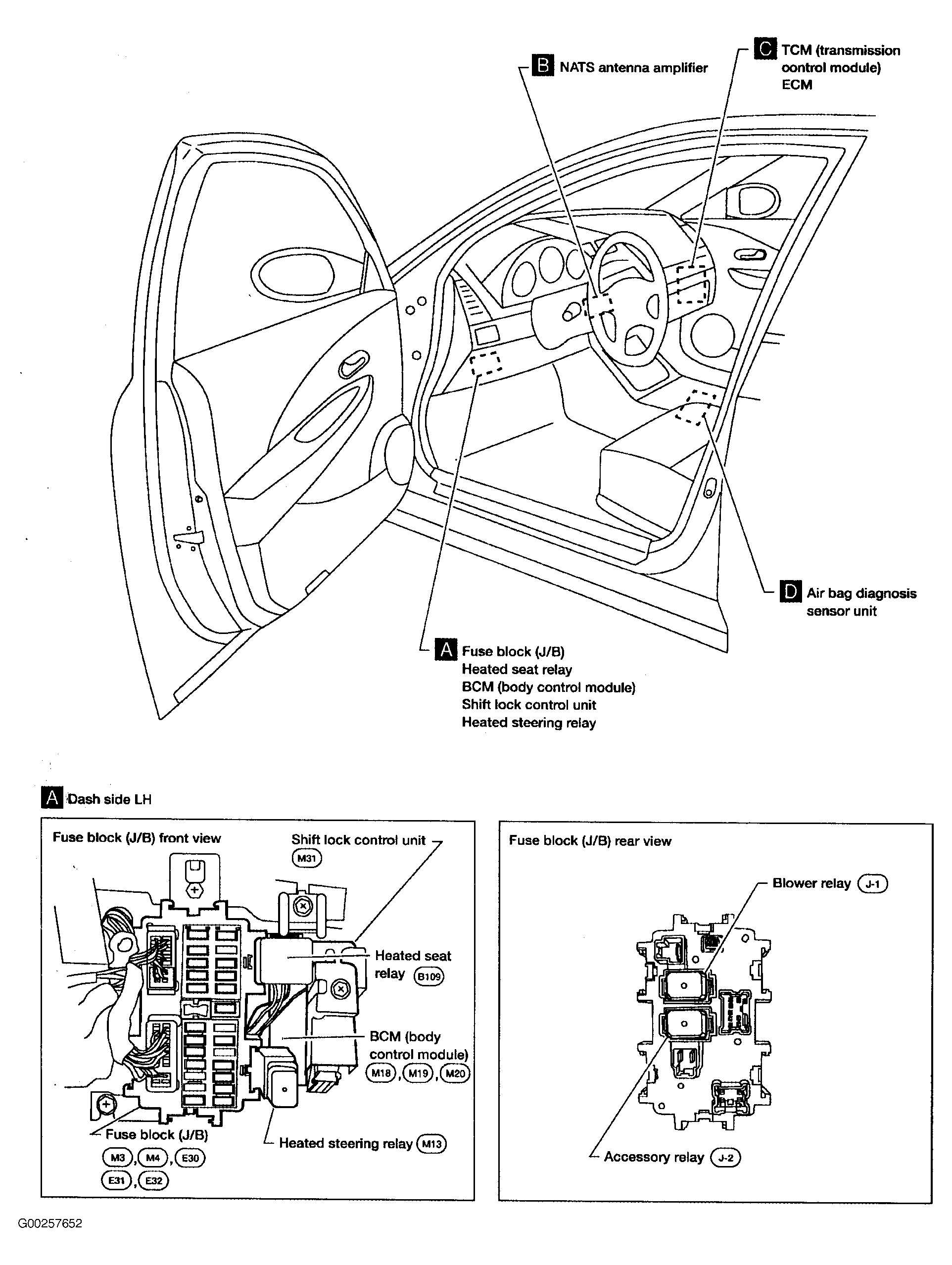

Fig 13: Dash Views (1 Of 2)

G00257652

Courtesy of NISSAN MOTOR CO., U.S.A.

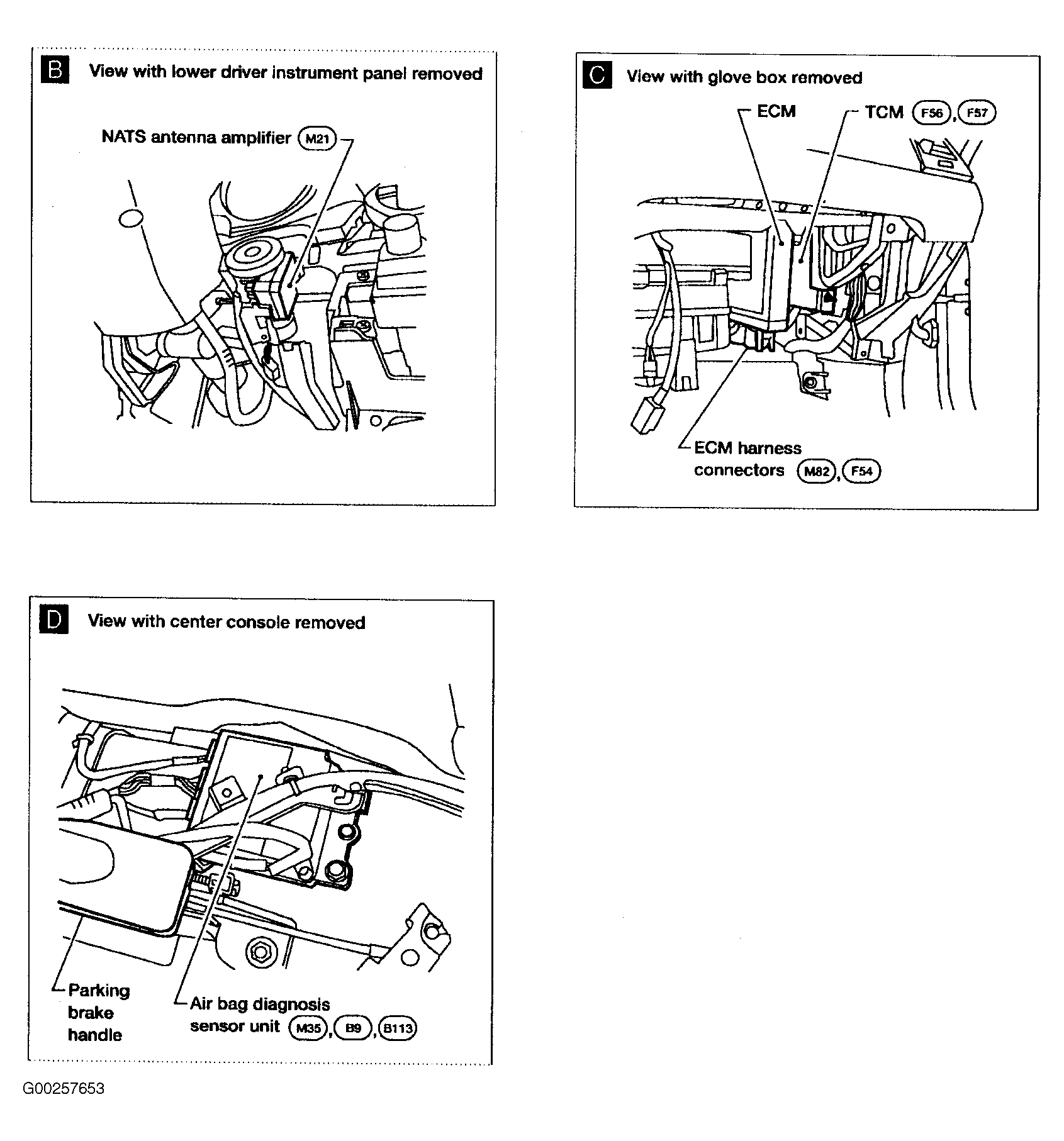

Fig 14: Dash Views (2 Of 2)

G00257653

Courtesy of NISSAN MOTOR CO., U.S.A.

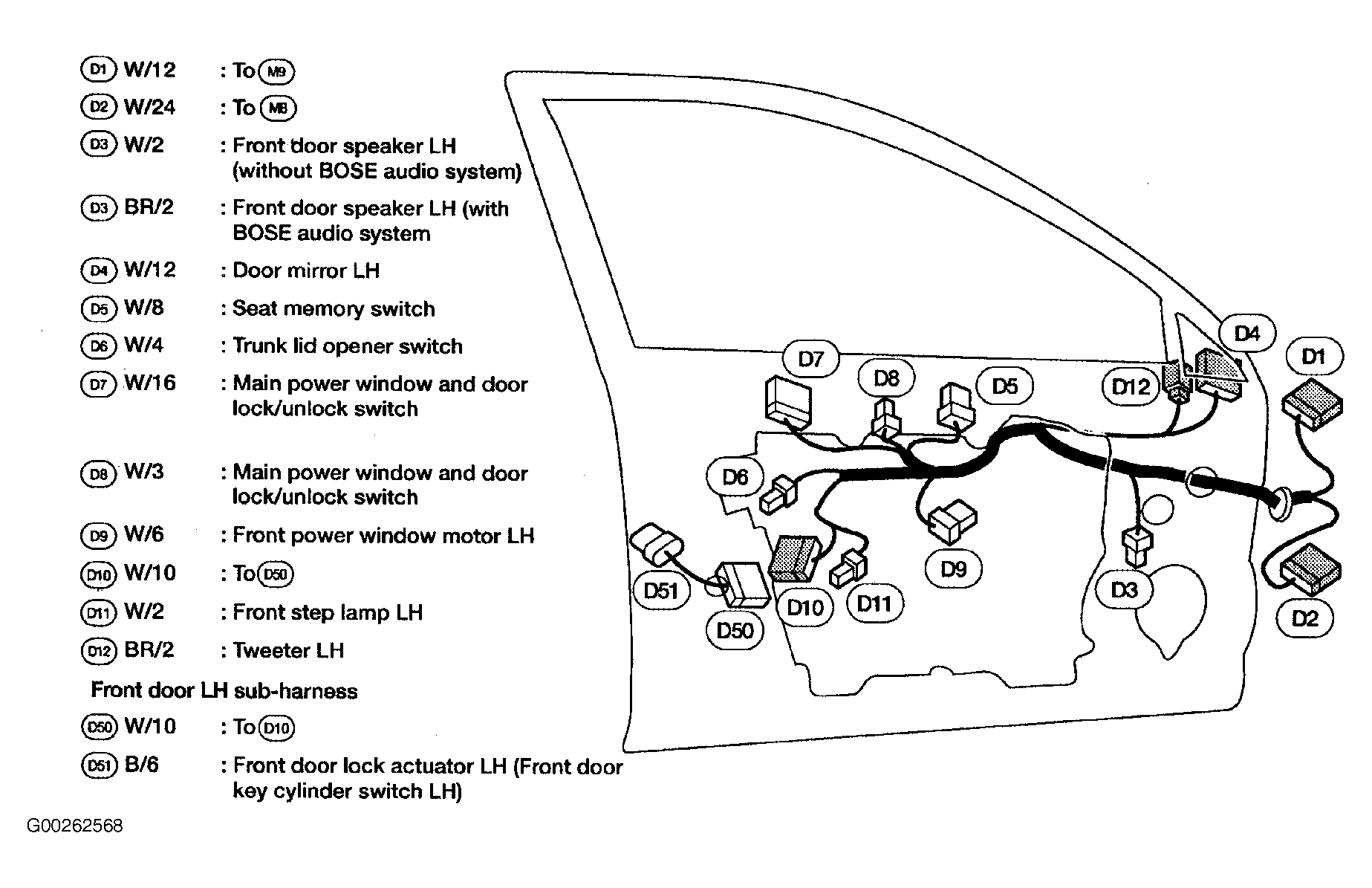

Fig 15: Left Front Door

G00262568

Courtesy of NISSAN MOTOR CO., U.S.A.

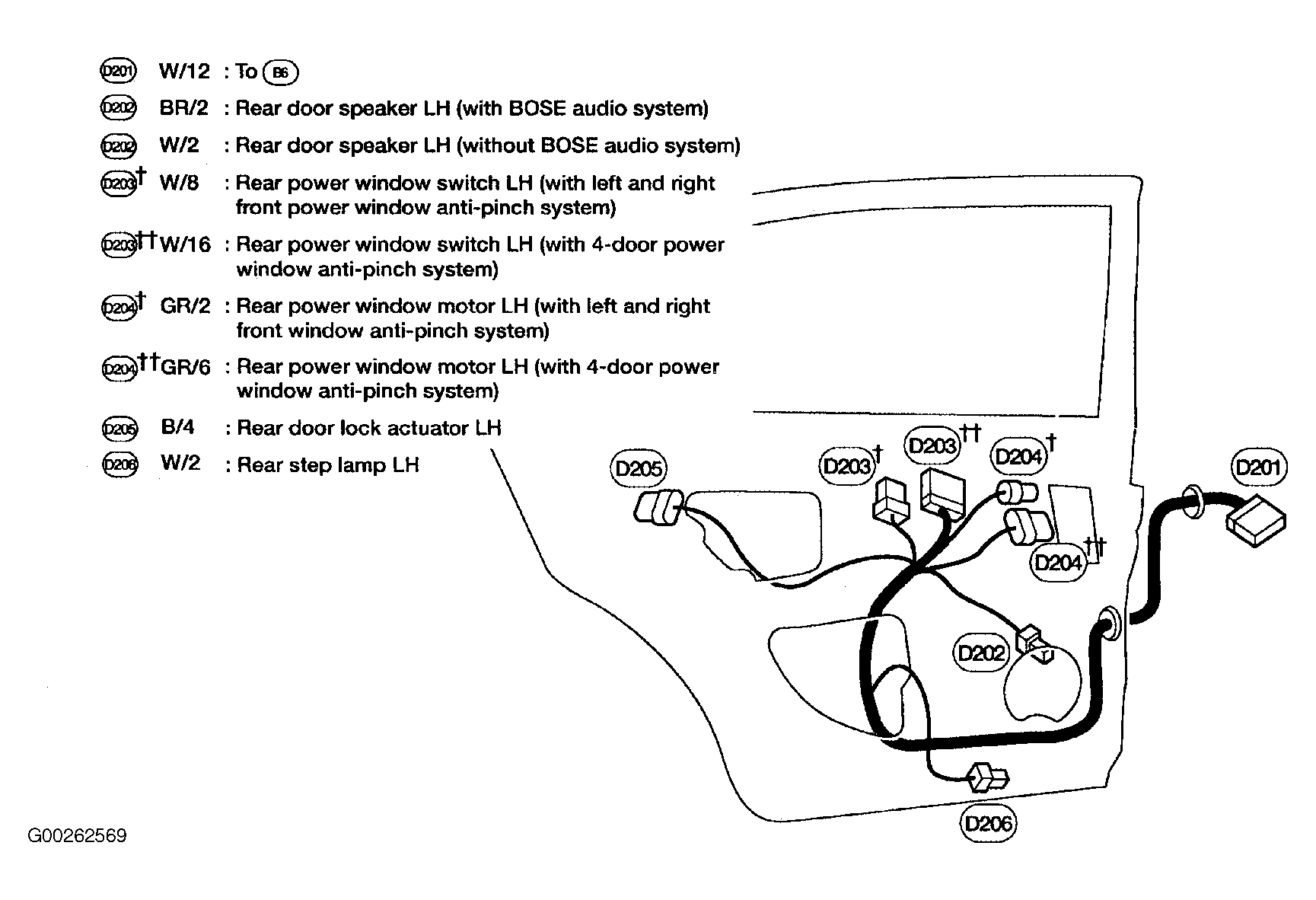

Fig 16: Left Rear Door

G00262569

Courtesy of NISSAN MOTOR CO., U.S.A.
