Control Units
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | At right rear corner of engine compartment. See Figure . |

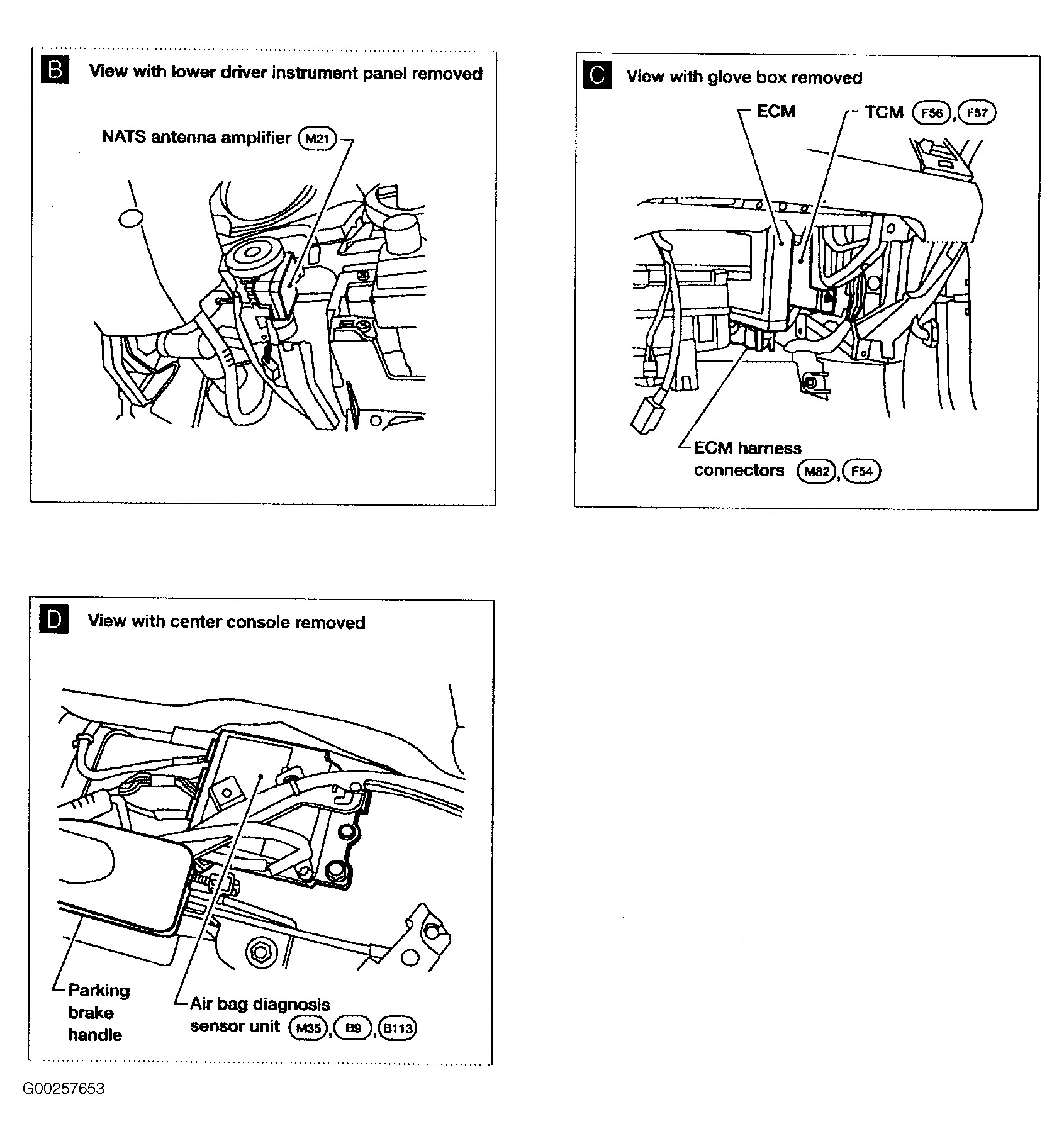

| Air Bag Diagnosis Sensor Unit | Under rear of floor center console. See Figure . |
| Automatic Drive Pos Control Unit (M41) | Behind center of dash. See Figure . |
| BCM (Body Control Module) | Near fuse block (J/B). See Figure . |
| Display Control Unit (M94) | Behind center of dash. See Figure . |
| ECM | Behind right side of dash. See Figure . |
| NAVI Control Unit (M96) | Behind center of dash. See Figure . |
| Passenger Air Bag Module (M105) | Behind right side of dash. See Figure . |
| Shift Lock Control Unit | Near fuse block (J/B). See Figure . |
| Side Air Bag Module (Left Front) (B10) | Under left front seat. See Figure . |
| Side Air Bag Module (Right Front) (B10) | Under right front seat. See Figure . |

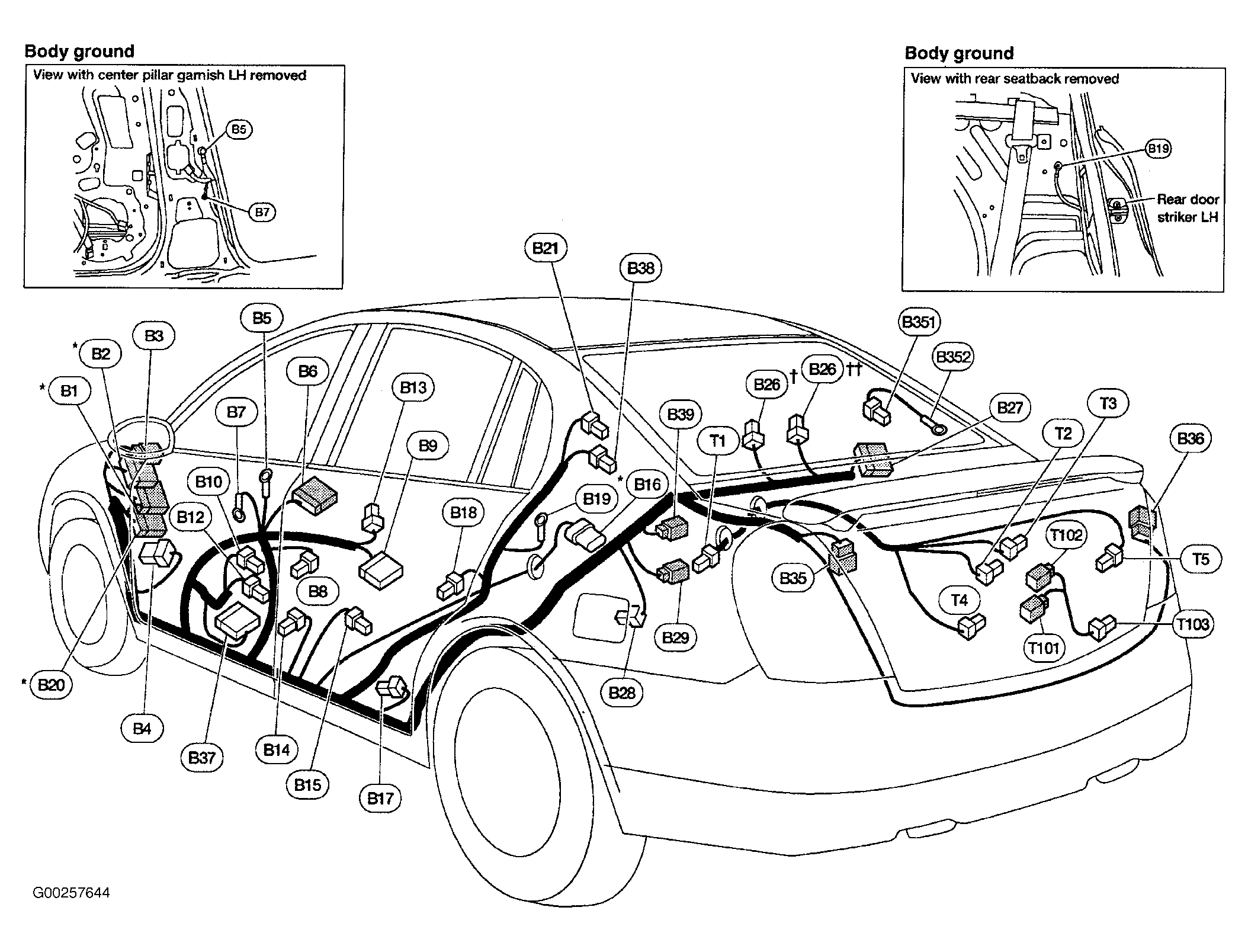

| Side Curtain Air Bag Module (Left) (B38) | At left "C" pillar. See Figure . |

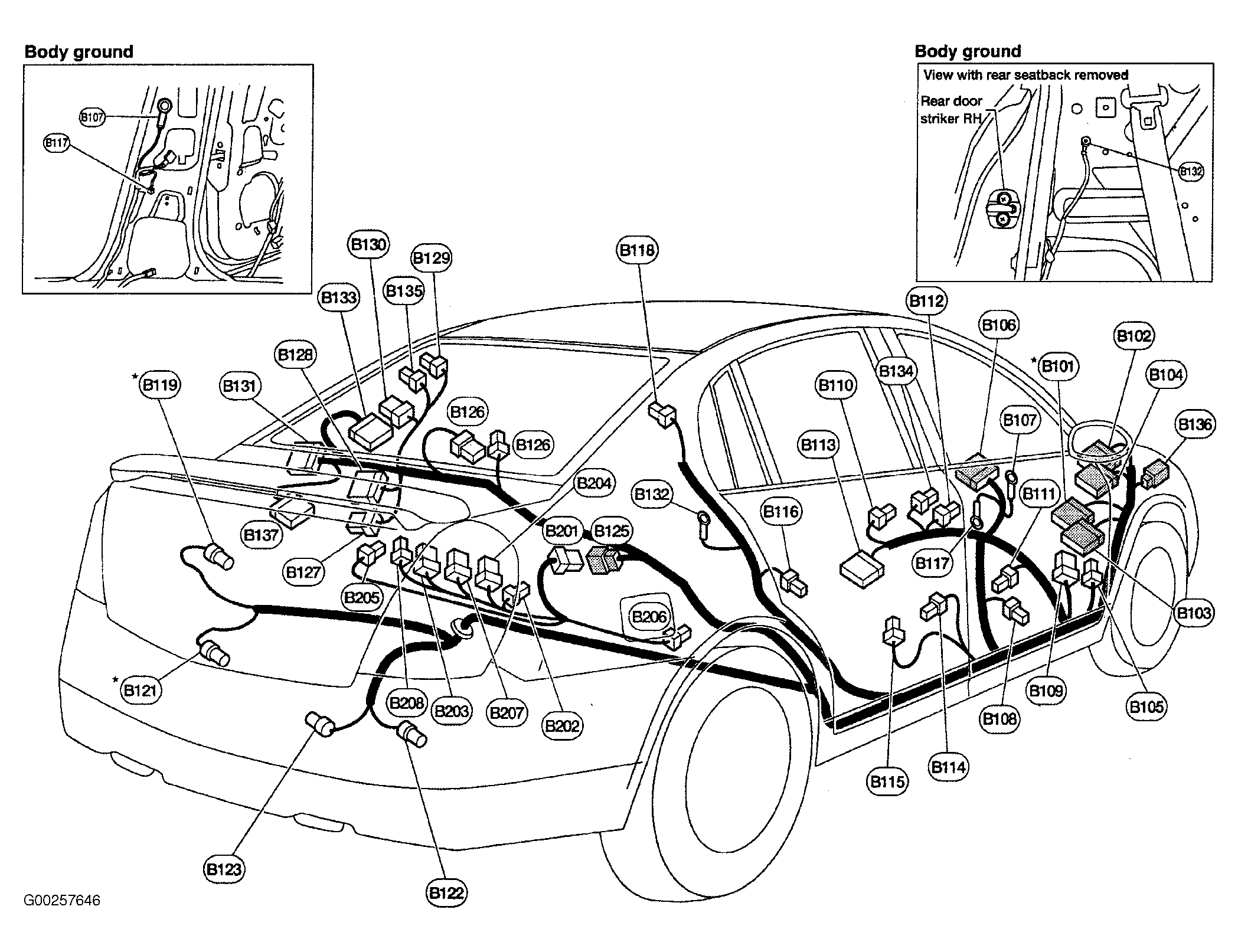

| Side Curtain Air Bag Module (Right) (B119) | At right "C" pillar. See Figure . |
| TCM | Behind right side of dash. See Figure . |
