CONSULT-II Inspection Procedure: Notes

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Connect "CONSULT-II and CONSULT-II CONVERTER" to the data link connector.

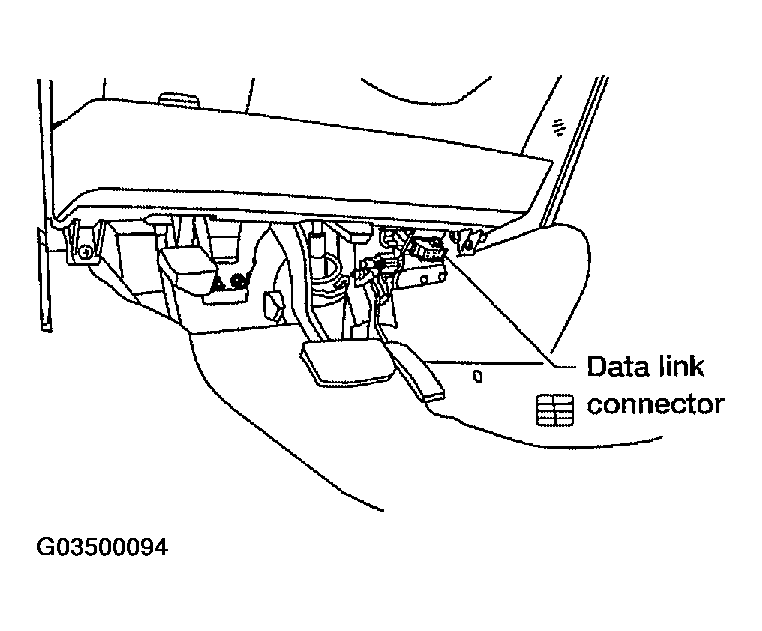

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

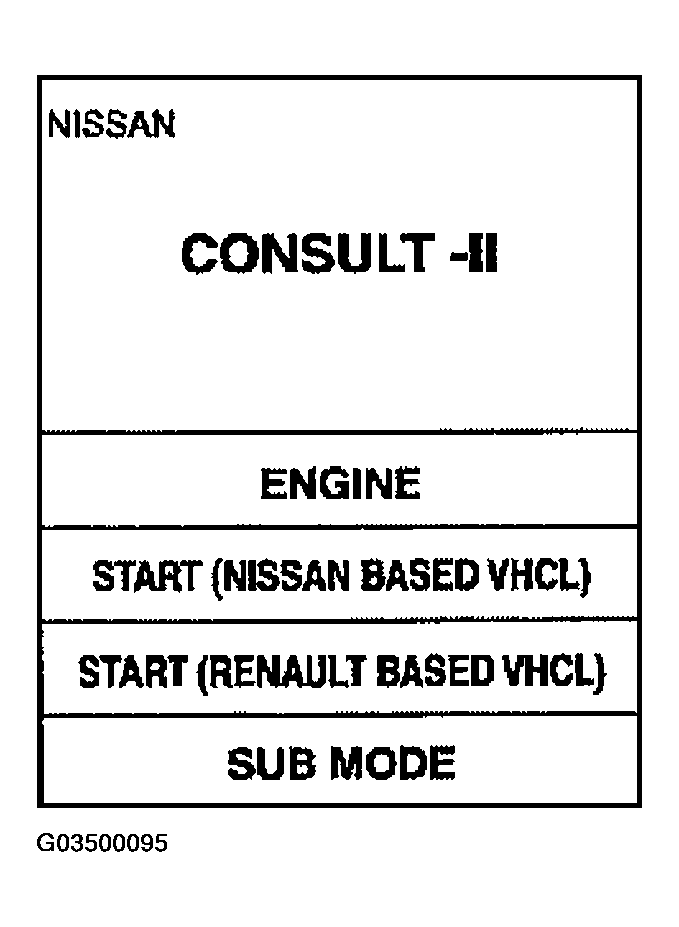

Fig 2: Display CONSULT II (Start (Nissan Based VHCL))
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

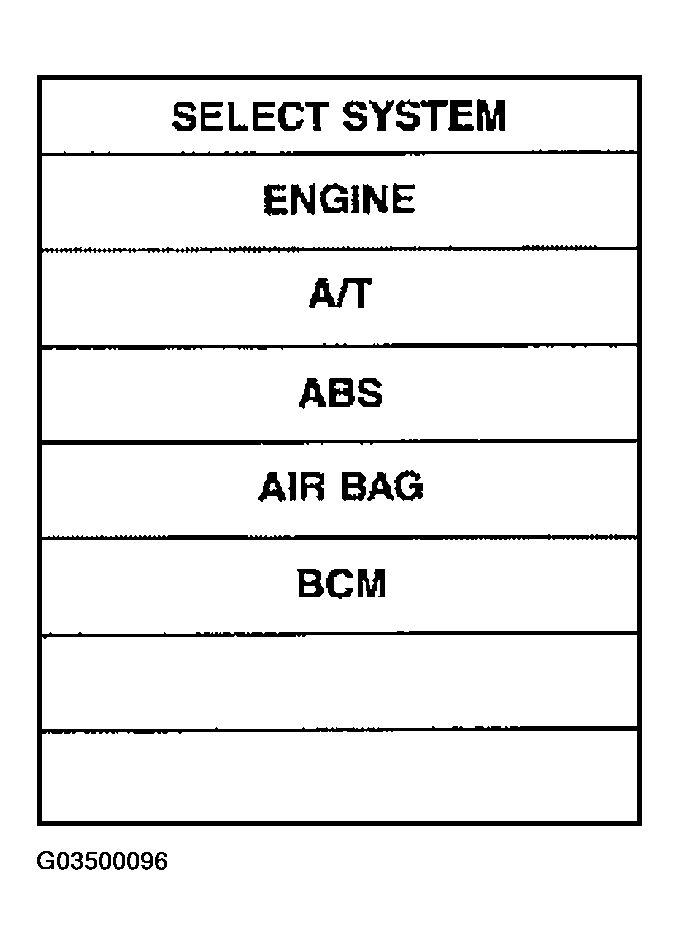

Fig 3: Display CONSULT II (Select System)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

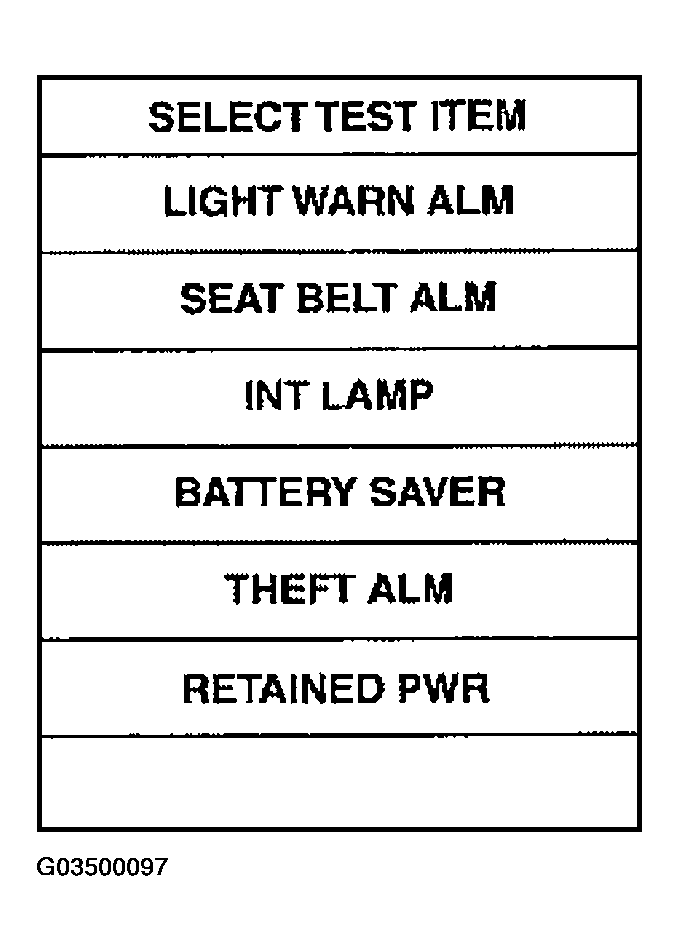

Fig 4: Display CONSULT II (Select Test Item)
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"ACTIVE TEST " and "WORK SUPPORT" are available.

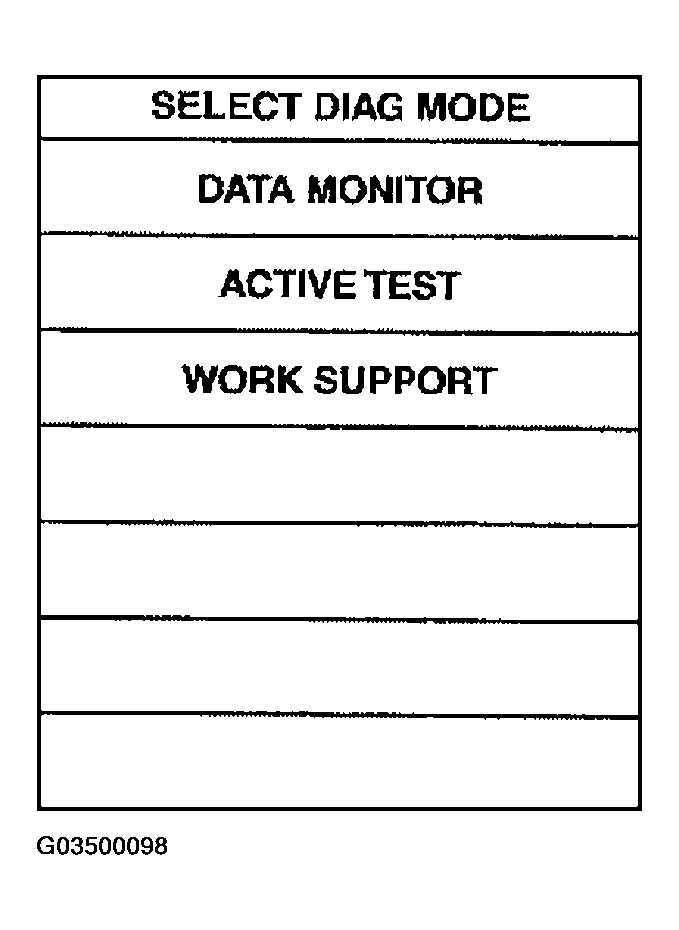

Fig 5: Display CONSULT II (Select Diagnosis Mode)
Courtesy of NISSAN MOTOR CO., U.S.A.
