Front Power Window Motor RH Circuit Check

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FRONT POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL

Connect front power window and door lock/unlock switch RH.
Turn ignition switch ON.
Check voltage between front power window and door lock/unlock switch RH connector D105 terminal 8, 9 and ground.

FRONT POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH CONNECTORS VOLTAGE

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
	(+)	(-)
D105	9(G)	Ground	Closing	0
			Opening	Battery voltage
	8(L)		Closing	Battery voltage
			Opening	0

OK or NG

OK: GO TO 2.
NG: Replace front power window and door lock/unlock switch RH.

Fig 1: Checking Voltage Between Front Power Window And Door Lock/Unlock Switch RH Connector D105 Terminal 8, 9 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor RH and front power window and door lock/unlock switch RH.
3. Check continuity between front power window and door lock/unlock switch RH connector D105 terminals 8, 9 and front power window motor RH connector D104 terminals 1, 3.
1. 8 (L) - 3 (L): Continuity should exist.
2. 9 (G) -1 (G): Continuity should exist.
OK or NG
1. OK: Replace front power window motor RH.
2. NG: Repair or replace harness.

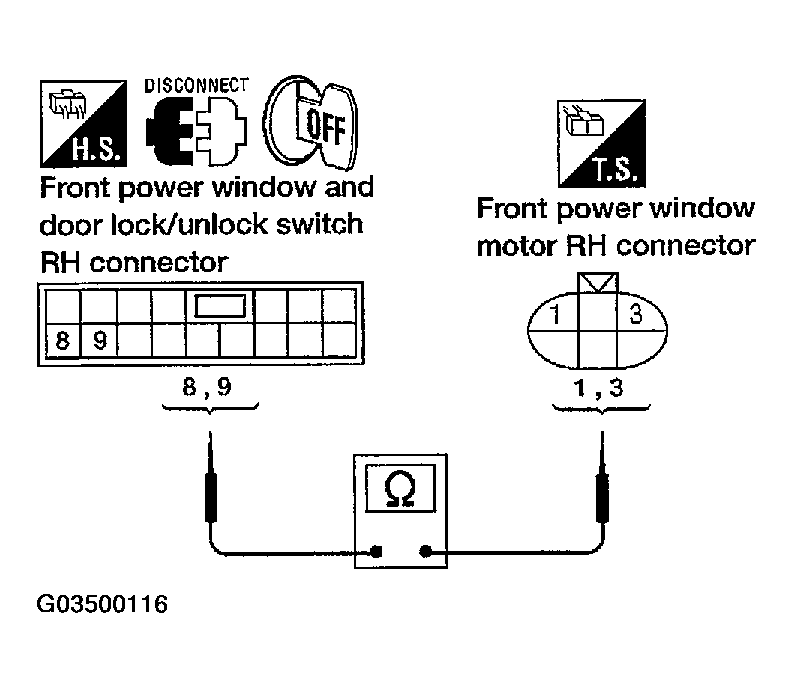

Fig 2: Checking Continuity Between Front Power Window And Door Lock/Unlock Switch RH Connector Terminals And Front Power Window Motor RH Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
