Component Location Graphics

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Dash & Center Console

G00257537

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Left Side Of Engine Compartment

G00257539

Courtesy of NISSAN MOTOR CO., U.S.A.

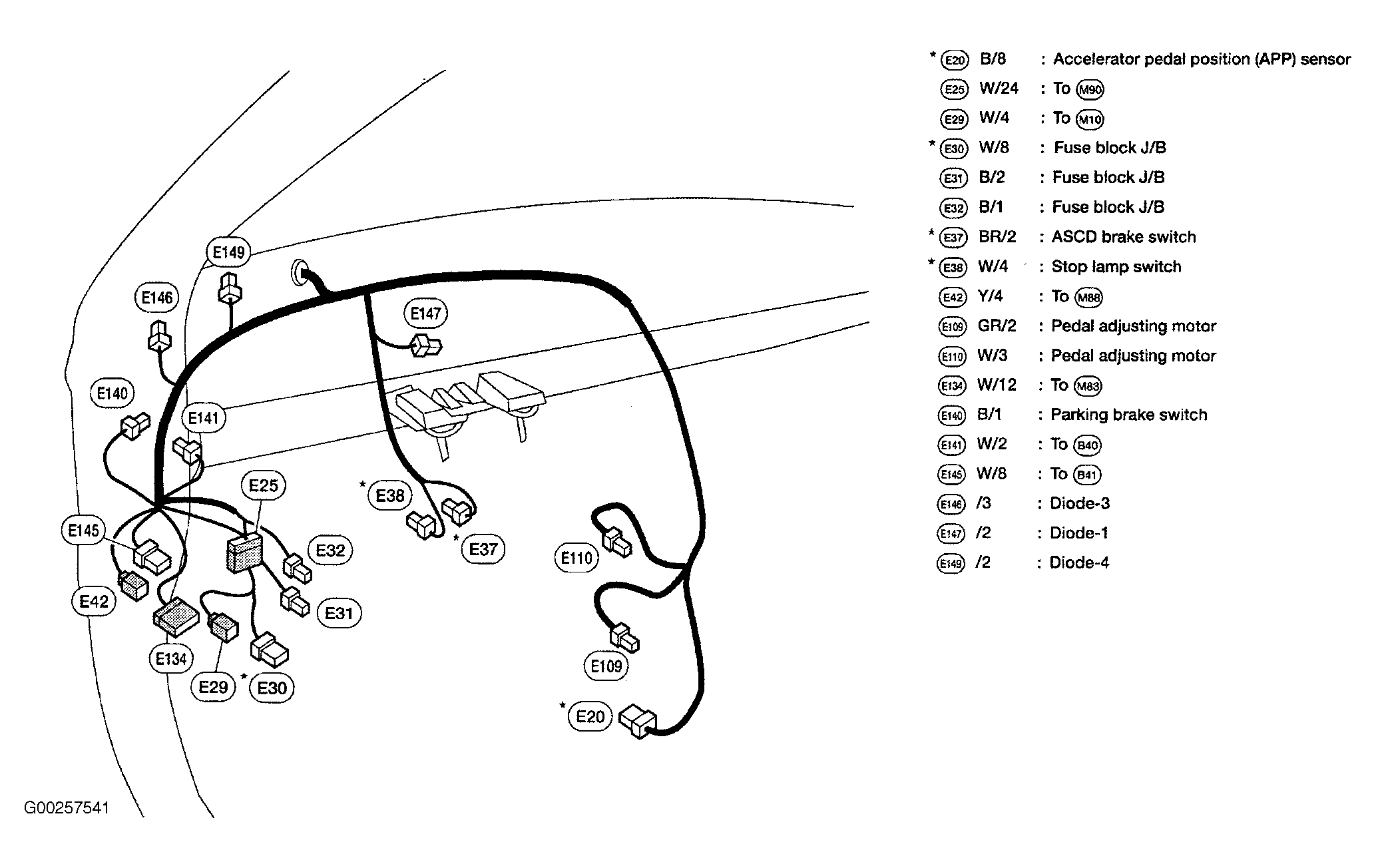

Fig 3: Left Side Of Dash & Left Kick Panel

G00257541

Courtesy of NISSAN MOTOR CO., U.S.A.

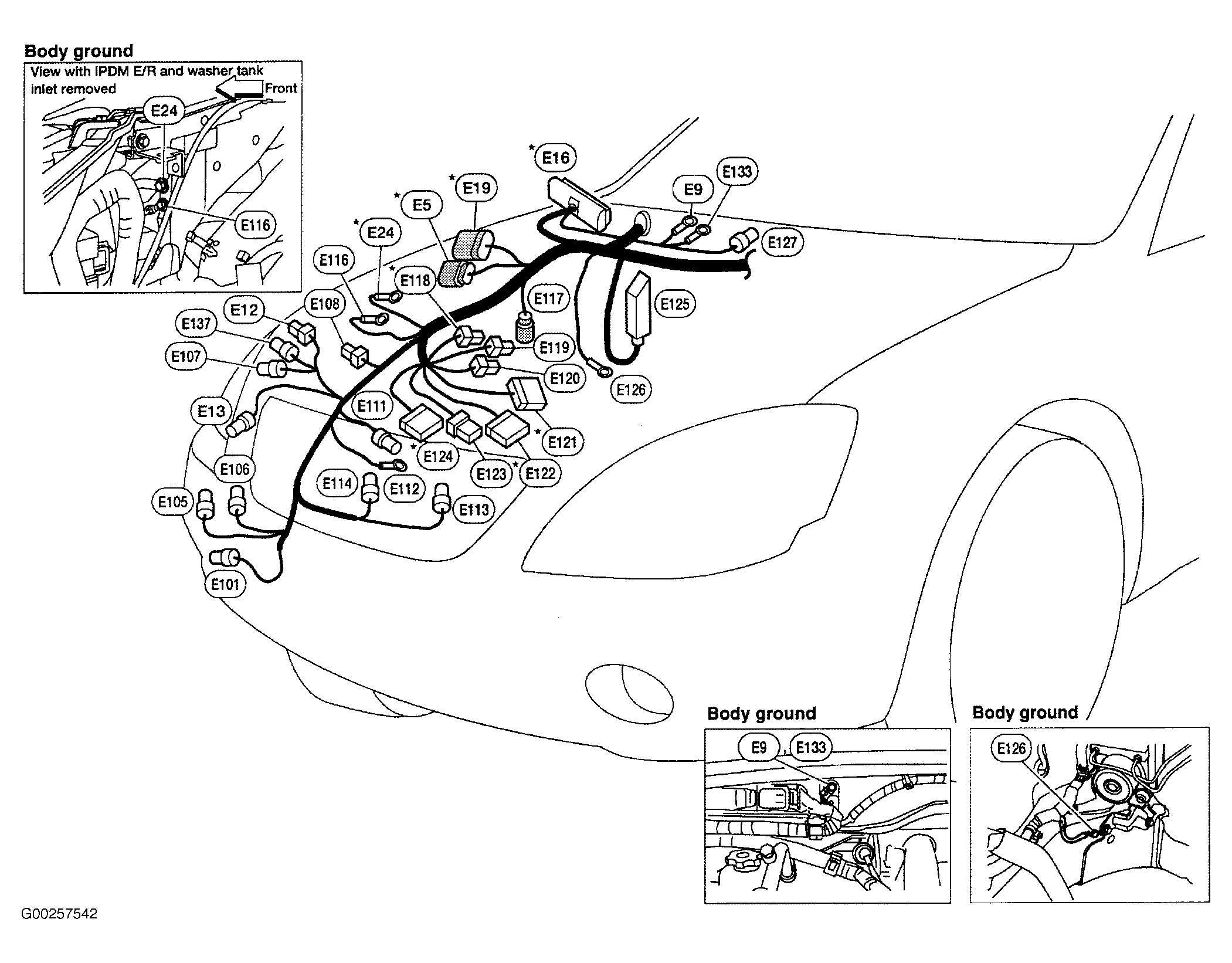

Fig 4: Right Side Of Engine Compartment

G00257542

Courtesy of NISSAN MOTOR CO., U.S.A.

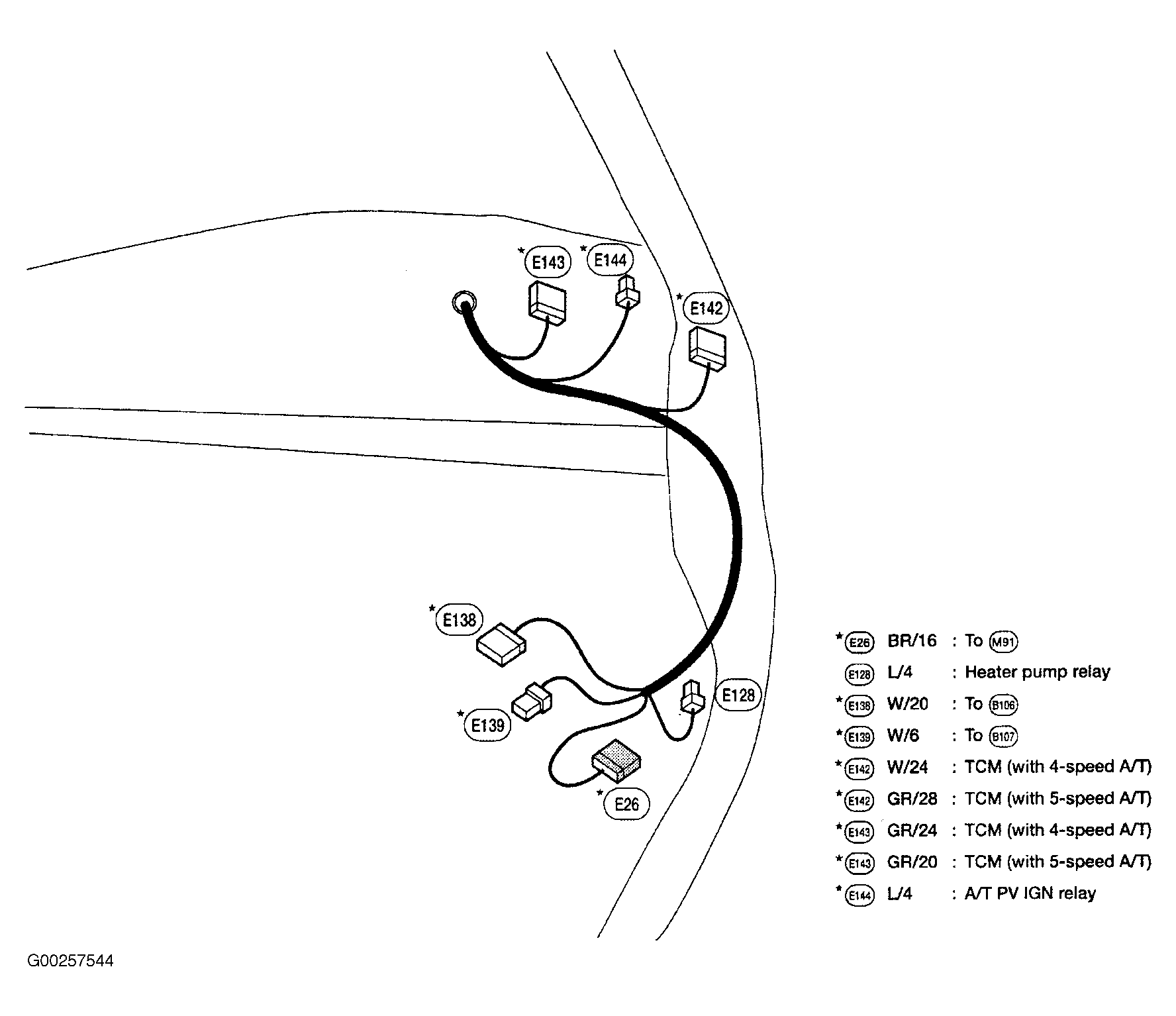

Fig 5: Right End Of Dash & Right Kick Panel

G00257544

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Engine & Engine Compartment

G00257545

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Left Side Of Vehicle

G00257547

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Right Side Of Vehicle

G00257549

Courtesy of NISSAN MOTOR CO., U.S.A.

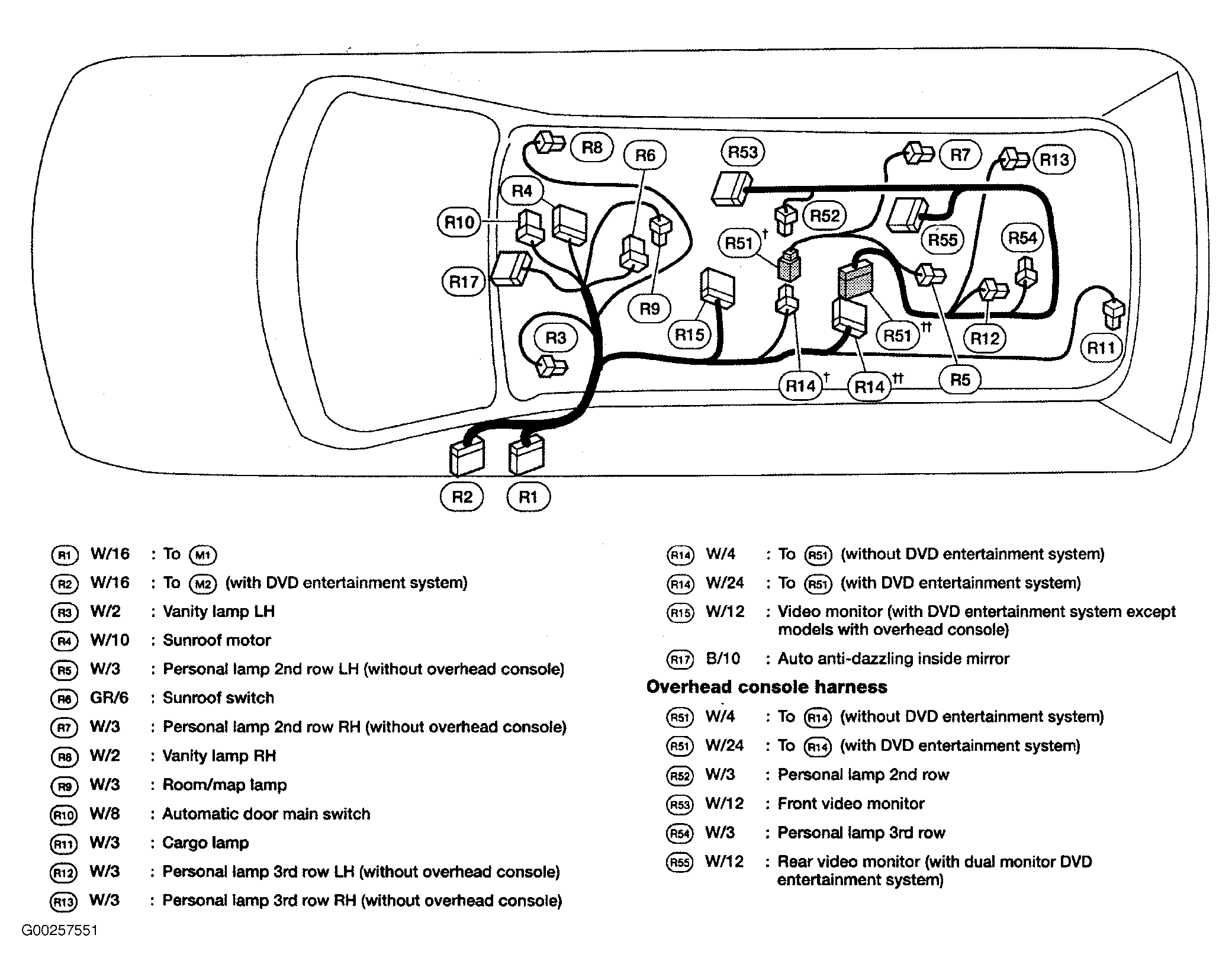

Fig 9: Roof

G00257551

Courtesy of NISSAN MOTOR CO., U.S.A.

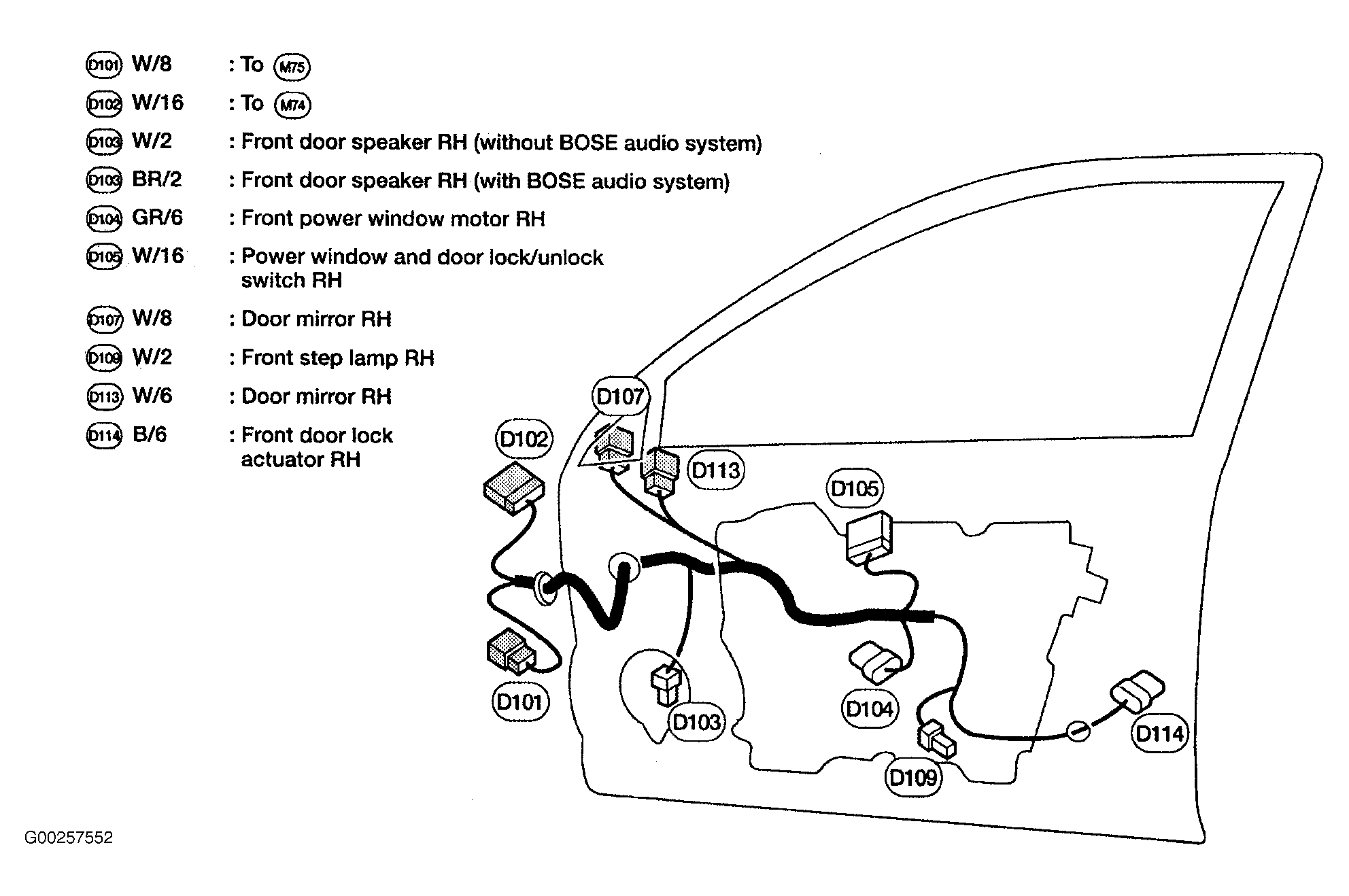

Fig 10: Right Front Door

G00257552

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Right Sliding Door

G00257553

Courtesy of NISSAN MOTOR CO., U.S.A.

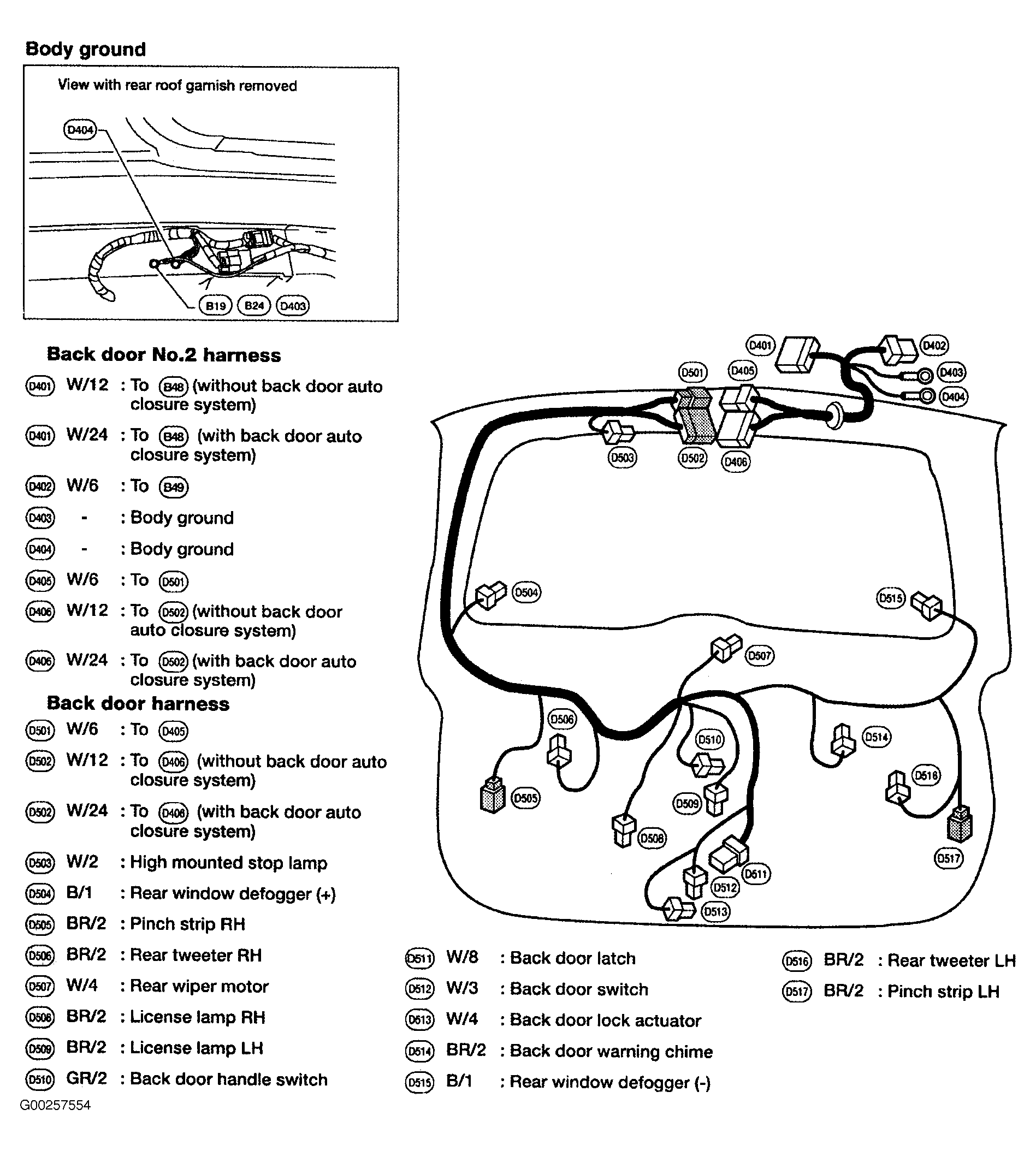

Fig 12: Back Door

G00257554

Courtesy of NISSAN MOTOR CO., U.S.A.

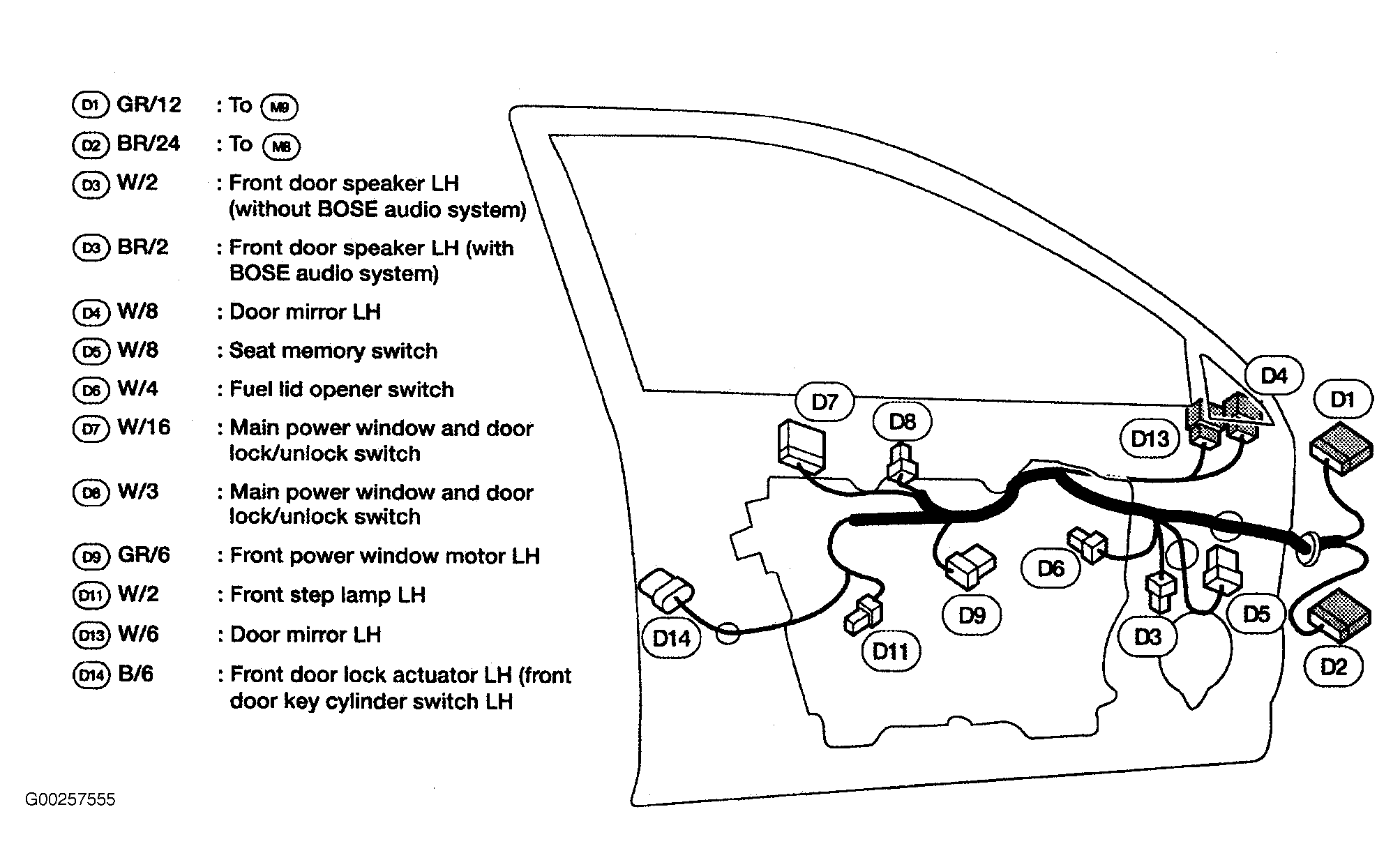

Fig 13: Left Front Door

G00257555

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Left Sliding Door

G00257556

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Engine Compartment

G00257558

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Dash Views (1 Of 2)

G00257559

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Dash Views (2 Of 2)

G00257560

Courtesy of NISSAN MOTOR CO., U.S.A.

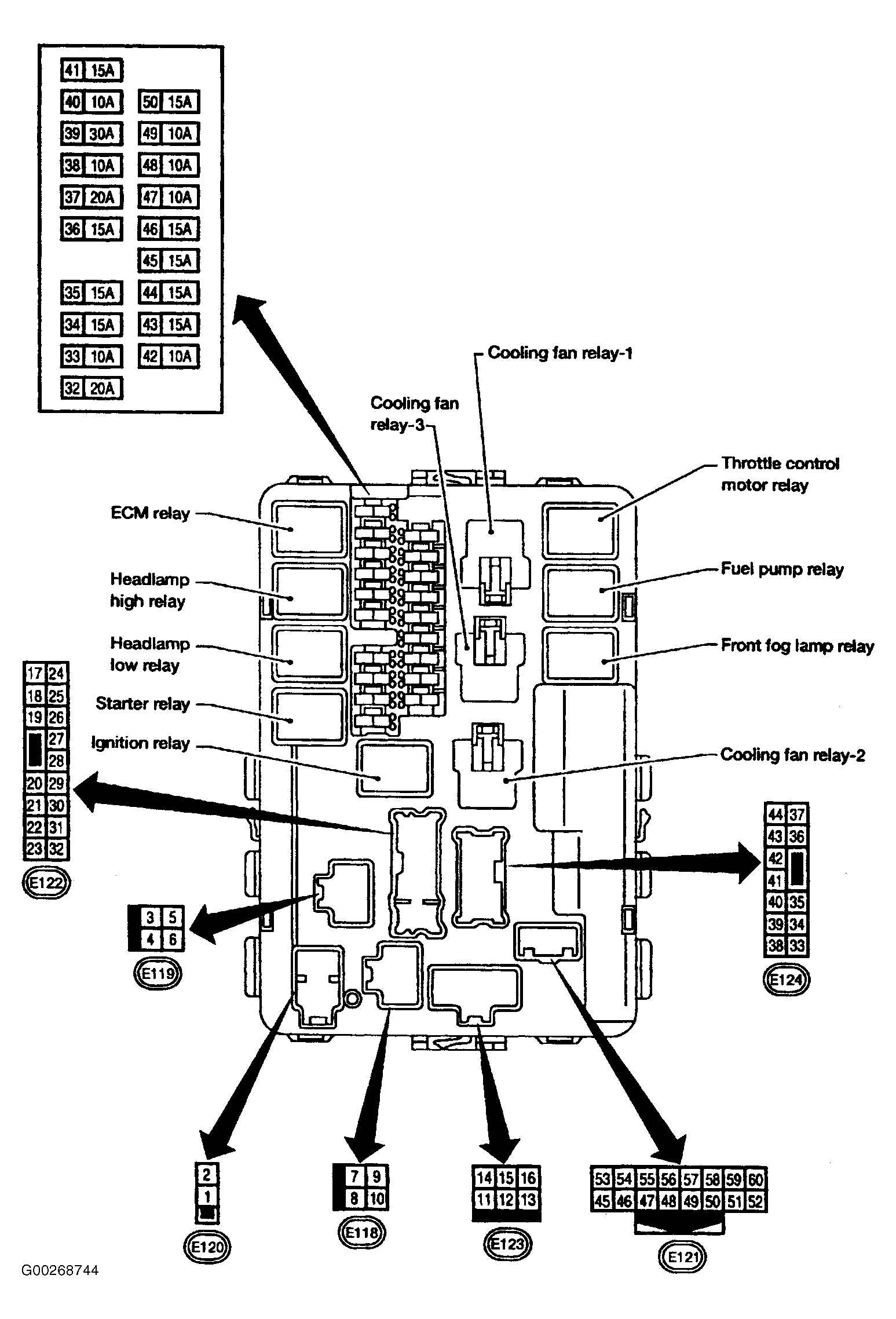

Fig 18: IPDM E/R (Intelligent Power Distribution Module Engine Room)

G00268744

Courtesy of NISSAN MOTOR CO., U.S.A.
