Section 12 (Electrical Component Locator): Connectors
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTORS LOCATION
| Component | Location |
|---|---|
| B1 (White, 16 Pin) | At left "A" pillar. See Figure . |
| B2 (Gray, 24 Pin) | At left "A" pillar. See Figure . |
| B20 (White, 16 Pin) | At left "A" pillar. See Figure . |
| B37 (W/Memory Seat) (White, 16 Pin) | Under driver seat. See Figure . |
| B37 (W/O Memory Seat) (White, 6 Pin) | Under driver seat. See Figure . |
| B40 (White, 2 Pin) | At top of left "A" pillar. See Figure . |
| B41 (White, 8 Pin) | At left "A" pillar. See Figure . |
| B43 (White, 8 Pin) | At left rear corner of vehicle. See Figure . |
| B47 (Gray, 6 Pin) | At left rear corner of vehicle. See Figure . |
| B48 (W/Back Door Auto Closure System) (White, 24 Pin) | At top of left "D" pillar. See Figure . |
| B48 (W/O Back Door Auto Closure System) (White, 12 Pin) | At top of left "D" pillar. See Figure . |
| B49 (White, 4 Pin) | At top of left "D" pillar. See Figure . |
| B53 (Gray, 1 Pin) | At left rear corner of vehicle. See Figure . |
| B101 (White, 16 Pin) | At right kick panel. See Figure . |
| B102 (Brown, 24 Pin) | At right kick panel. See Figure . |
| B103 (Brown, 20 Pin) | At right kick panel. See Figure . |
| B104 (White, 24 Pin) | At right kick panel. See Figure . |
| B105 (White, 4 Pin) | At right kick panel. See Figure . |
| B106 (White, 20 Pin) | At right kick panel. See Figure . |
| B107 (White, 6 Pin) | At right kick panel. See Figure . |
| B111 (White, 8 Pin) | Under right rear of vehicle. See Figure . |
| B115 (White, 6 Pin) | Under right front seat. See Figure . |
| B116 (SMJ) | At right "B" pillar. See Figure . |
| B118 (Brown, 24 Pin) | At right "B" pillar. See Figure . |
| B136 (White, 8 Pin) | Under right front seat. See Figure . |
| B148 (Gray, 6 Pin) | Under right rear of vehicle. See Figure . |
| B201 (Gray, 6 Pin) | At left rear corner of vehicle. See Figure . |
| B251 (Gray, 6 Pin) | Under right rear of vehicle. See Figure . |
| D1 (Gray, 12 Pin) | Behind left end of dash. See Figure . |
| D2 (Brown, 24 Pin) | Behind left kick panel. See Figure . |
| D101 (White, 8 Pin) | Behind right kick panel. See Figure . |
| D102 (White, 16 Pin) | Behind right end of dash. See Figure . |
| D401 (W/Back Door Auto Closure System) (White, 24 Pin) | At top left rear of roof. See Figure . |
| D401 (W/O Back Door Auto Closure System) (White, 12 Pin) | At top left rear of roof. See Figure . |
| D405 (White, 6 Pin) | At top left rear of roof. See Figure . |
| D406 (W/Back Door Auto Closure System) (White, 24 Pin) | At top of back door. See Figure . |
| D406 (W/O Back Door Auto Closure System) (White, 12 Pin) | At top of back door. See Figure . |
| D501 (White, 6 Pin) | At top of back door. See Figure . |
| D502 (W/Back Door Auto Closure System) (White, 24 Pin) | At top of back door. See Figure . |
| D502 (W/O Back Door Auto Closure System) (White, 12 Pin) | At top of back door. See Figure . |
| E2 (Gray, 10 Pin) | At left rear of engine compartment. See Figure . |
| E5 (Black, 8 Pin) | At right rear of engine compartment. See Figure . |
| E7 (Green, 10 Pin) | At left rear of engine compartment. See Figure . |
| E8 (Black, 12 Pin) | At left rear of engine compartment. See Figure . |
| E19 (Gray, 9 Pin) | At right rear of engine compartment. See Figure . |
| E25 (White, 24 Pin) | Behind left end of dash. See Figure . |
| E26 (Brown, 16 Pin) | Behind right kick panel. See Figure . |
| E29 (White, 4 Pin) | Behind left end of dash. See Figure . |
| E42 (Yellow, 4 Pin) | Behind left end of dash. See Figure . |
| E134 (White, 12 Pin) | Behind left end of dash. See Figure . |
| E138 (White, 20 Pin) | Behind right kick panel. See Figure . |
| E139 (White, 6 Pin) | Behind right kick panel. See Figure . |
| E141 (White, 2 Pin) | Behind left end of dash. See Figure . |
| E145 (White, 8 Pin) | Behind left end of dash. See Figure . |
| E151 (Black, 1 Pin) | At left side of engine compartment. See Figure . |
| F14 (Black, 8 Pin) | At right rear of engine compartment. See Figure . |
| F15 (Green, 10 Pin) | At left side of engine compartment. See Figure . |
| F17 (Black, 12 Pin) | At left rear of engine compartment. See Figure . |
| F26 (Gray, 8 Pin) | At left rear of engine. See Figure . |
| F32 (Gray, 10 Pin) | At left rear of engine compartment. See Figure . |
| F33 (Gray, 9 Pin) | At right rear of engine compartment. See Figure . |
| F38 (Black, 3 Pin) | At left front of engine compartment. See Figure . |
| F43 (Green, 6 Pin) | At right rear of engine compartment. See Figure . |
| F44 (Green, 8 Pin) | At right rear of engine compartment. See Figure . |
| F66 (Black, 1 Pin) | At left side of engine compartment. See Figure . |
| F101 (Green, 8 Pin) | At right side of engine compartment. See Figure . |
| F201 (Green, 6 Pin) | At right rear of engine compartment. See Figure . |
| F301 (Gray, 6 Pin) | At left front of engine compartment. See Figure . |
| F401 (Gray, 2 Pin) | At left side of engine compartment. See Figure . |
| M1 (White, 16 Pin) | Behind left side of dash. See Figure . |
| M2 (White, 16 Pin) | Behind right end of dash. See Figure . |
| M8 (Brown, 24 Pin) | Behind left end of dash. See Figure . |
| M9 (Gray, 12 Pin) | Behind left end of dash. See Figure . |
| M10 (White, 4 Pin) | Behind left end of dash. See Figure . |
| M11 (White, 16 Pin) | Behind left kick panel. See Figure . |
| M12 (Gray, 24 Pin) | Behind left kick panel. See Figure . |
| M48 (Brown, 2 Pin) | Behind right side of dash. See Figure . |
| M53 (White, 16 Pin) | Behind right side of dash. See Figure . |
| M56 (White, 2 Pin) | Behind center of dash. See Figure . |
| M65 (White, 4 Pin) | Behind right end of dash. See Figure . |
| M74 (White, 16 Pin) | Behind right kick panel. See Figure . |
| M75 (White, 8 Pin) | Behind right kick panel. See Figure . |
| M81 (White, 16 Pin) | Behind left kick panel. See Figure . |
| M83 (White, 12 Pin) | Behind left kick panel. See Figure . |
| M84 (White, 16 Pin) | Behind right kick panel. See Figure . |
| M85 (Brown, 24 Pin) | Behind right kick panel. See Figure . |
| M86 (Brown, 20 Pin) | Behind right end of dash. See Figure . |
| M88 (Yellow, 4 Pin) | Behind left side of dash. See Figure . |
| M90 (White, 24 Pin) | Behind left kick panel. See Figure . |
| M91 (Brown, 16 Pin) | Behind right kick panel. See Figure . |
| M114 (White, 24 Pin) | Behind right end of dash. See Figure . |
| M115 (White, 4 Pin) | Behind right end of dash. See Figure . |
| M201 (White, 2 Pin) | Behind center of dash. See Figure . |
| M301 (White, 16 Pin) | Behind center of dash. See Figure . |
| M401 (White, 4 Pin) | Behind right side of dash. See Figure . |

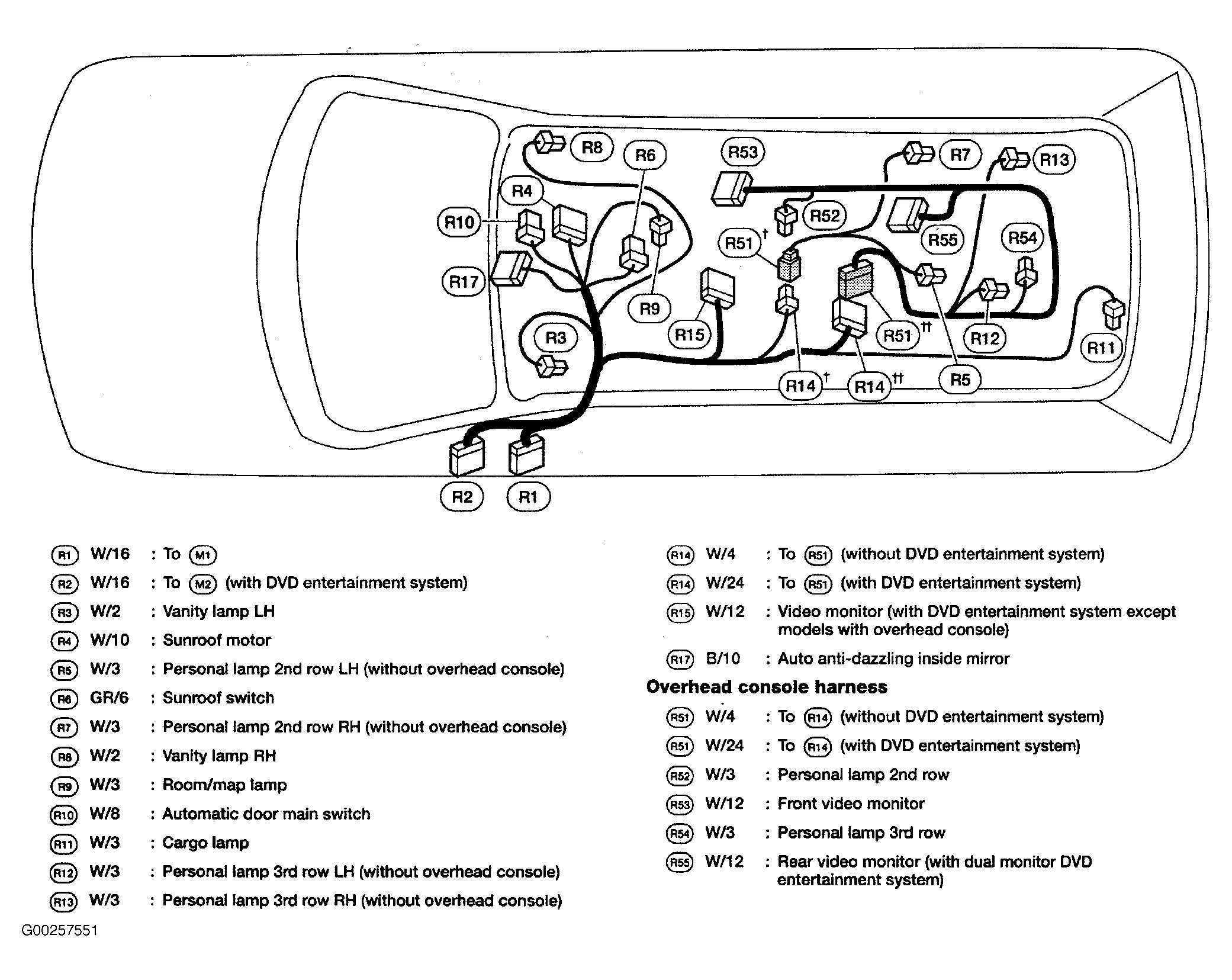

| R1 (White, 16 Pin) | At base of left "A" pillar. See Figure . |
| R2 (W/DVD Entertainment System) (White, 16 Pin) | At base of left "A" pillar. See Figure . |
| R14 (W/DVD Entertainment System) (White, 24 Pin) | At rear center of roof. See Figure . |
| R14 (W/O DVD Entertainment System) (White, 4 Pin) | At rear center of roof. See Figure . |
| R51 (W/DVD Entertainment System) (White, 24 Pin) | At center rear of roof. See Figure . |
| R51 (W/O DVD Entertainment System) (White, 4 Pin) | At center rear of roof. See Figure . |
