Circuit Protection Devices
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

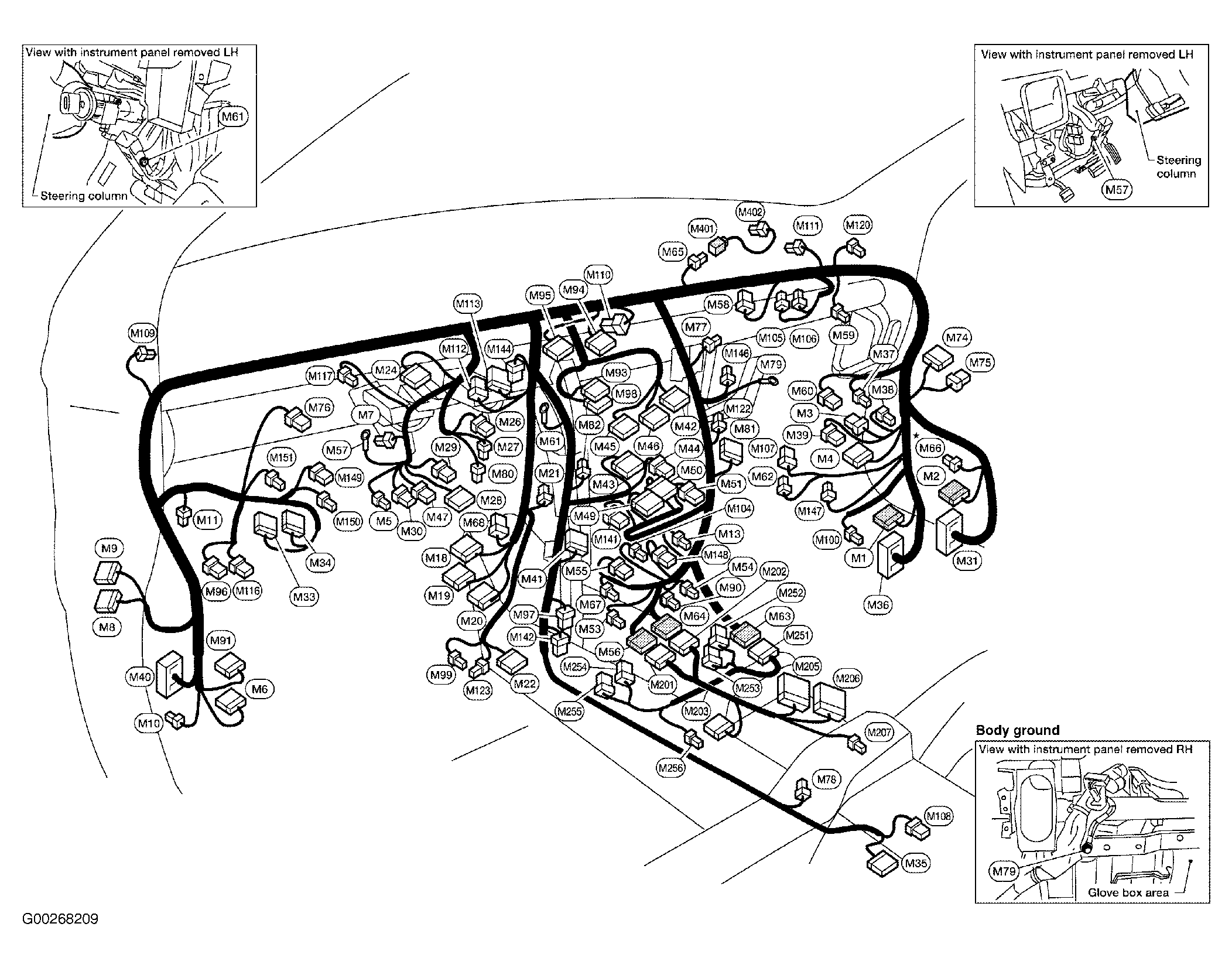

| Circuit Breaker No. 2 (M82) | Behind center of dash.Figure . |

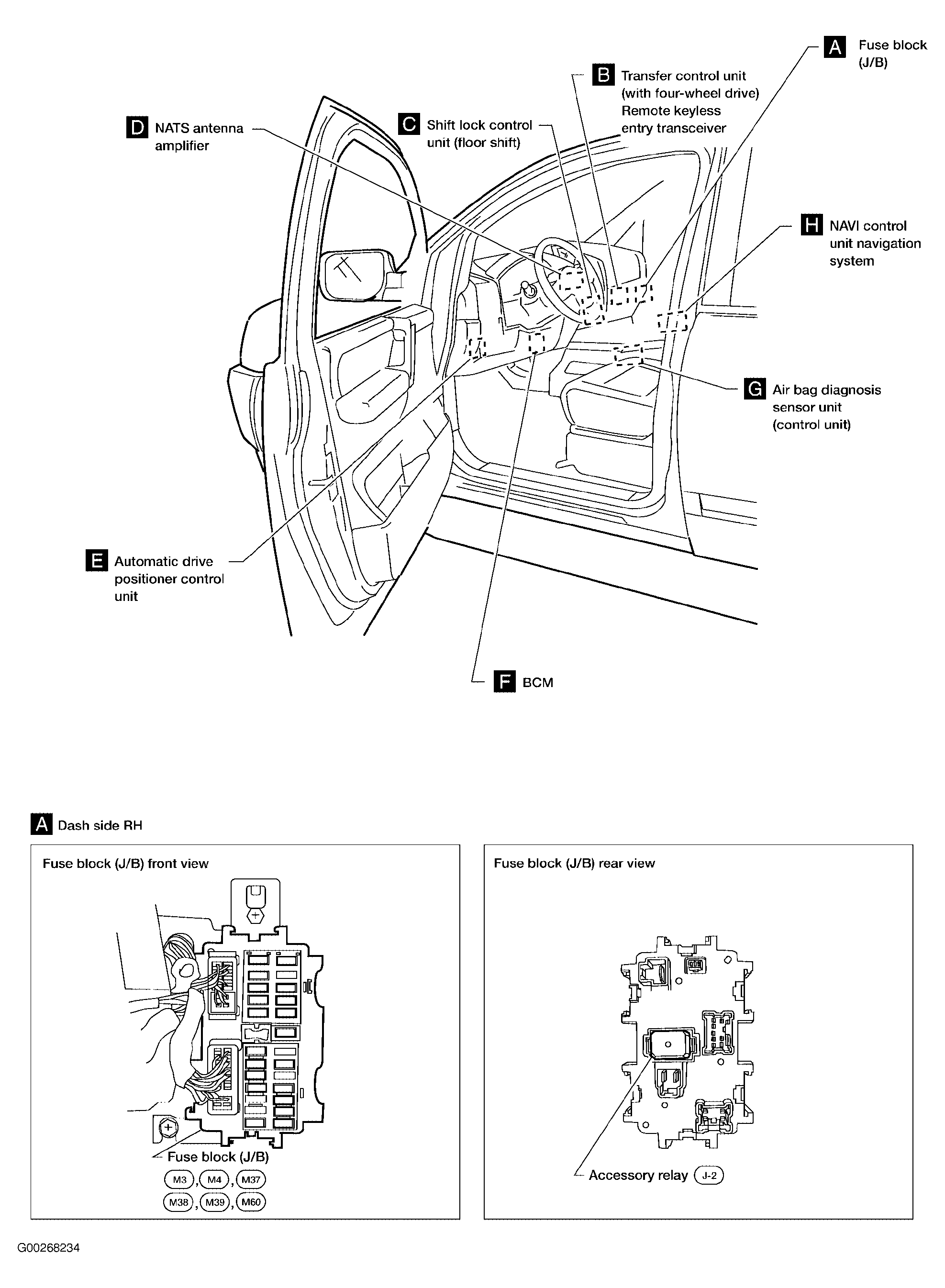

| Fuse Block (J/B) | Behind right end of dash.Figure . |

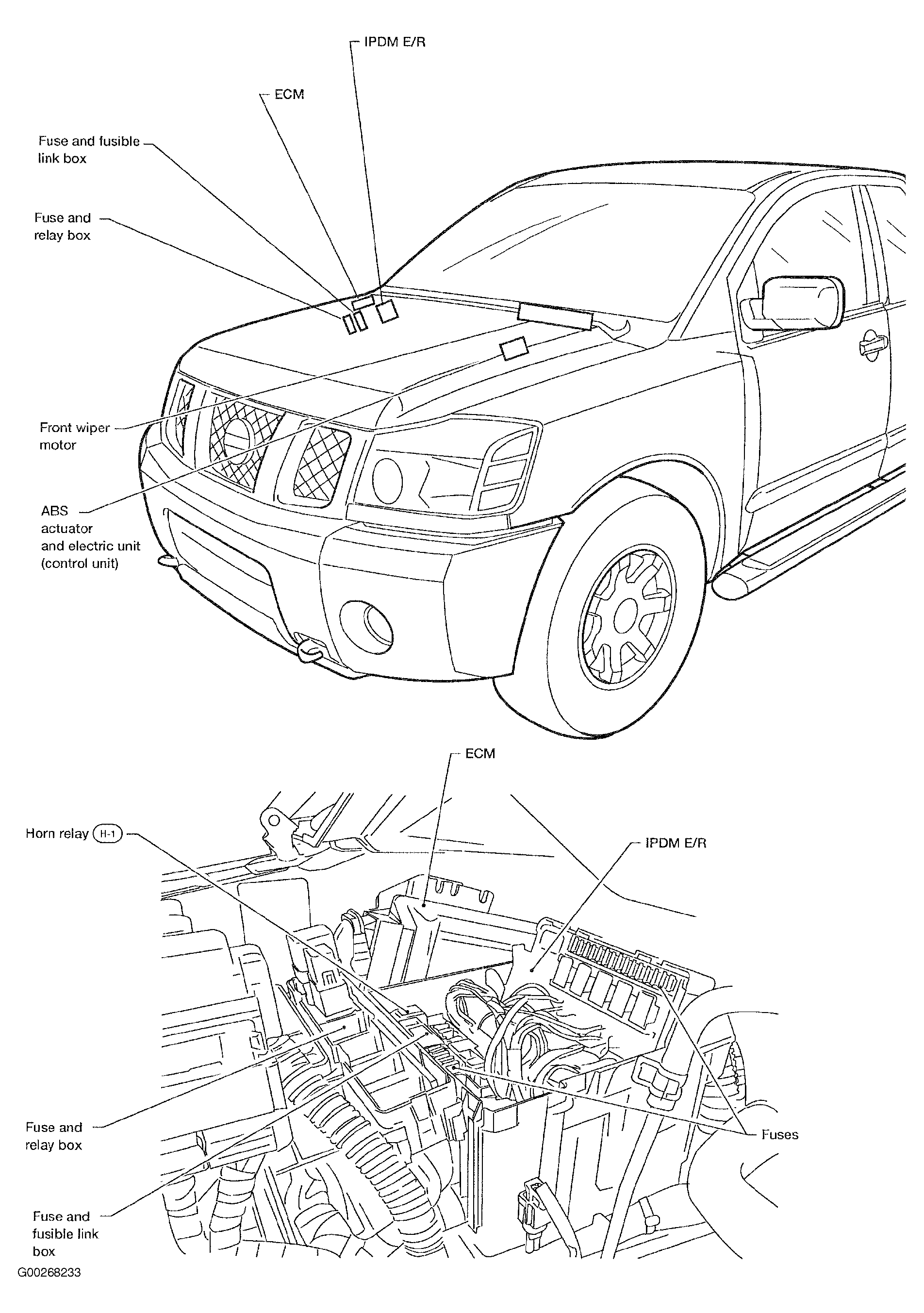

| Fuse & Fusible Link Box | At right rear of engine compartment. See Figure . |

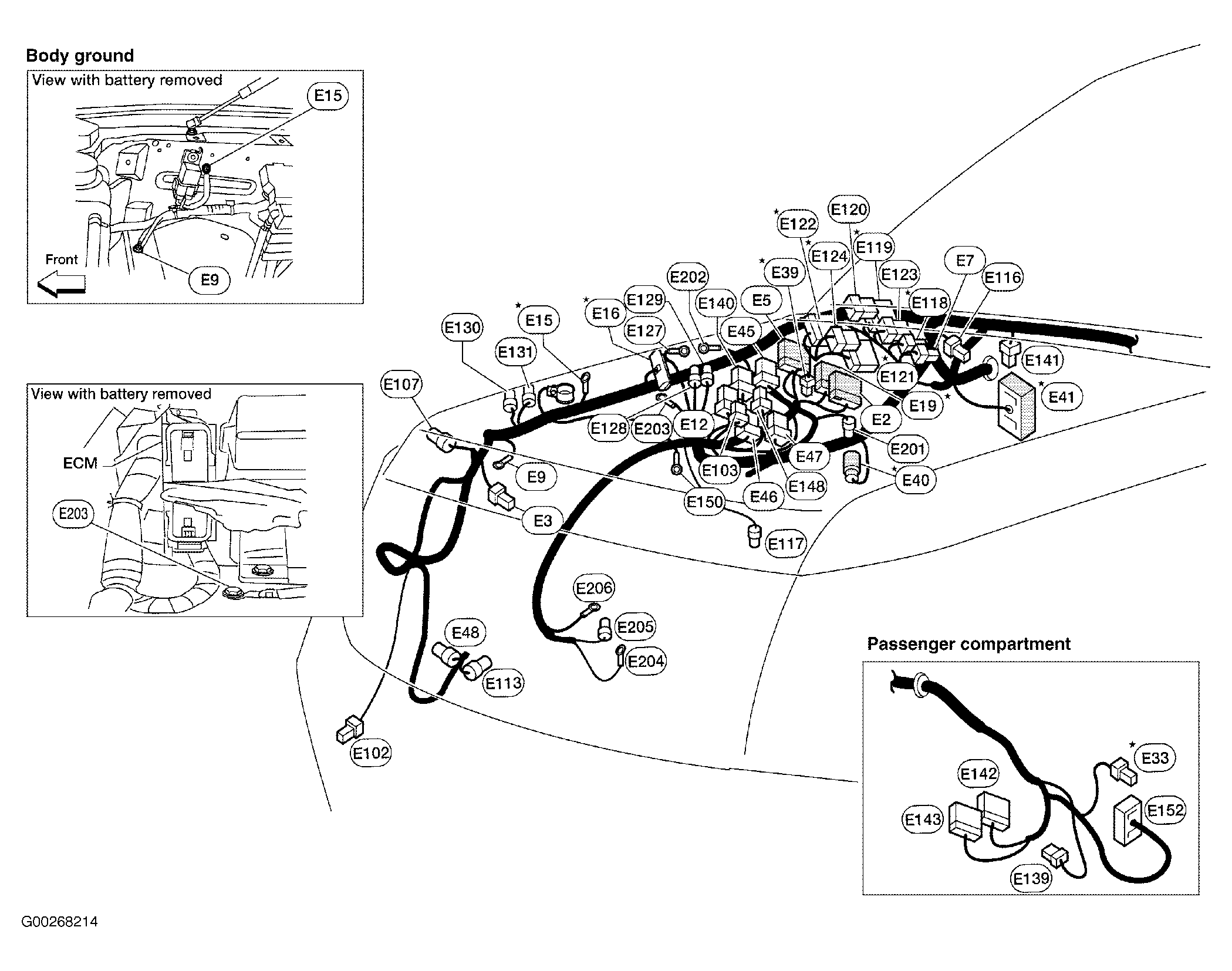

| Fuse Link Box (Battery) (E127) | At right side of engine compartment. See Figure . |
| Fuse & Relay Box | At right rear of engine compartment. See Figure . |
| IPDM E/R | At right rear of engine compartment. See Figure . |
