Component Location Graphics

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references

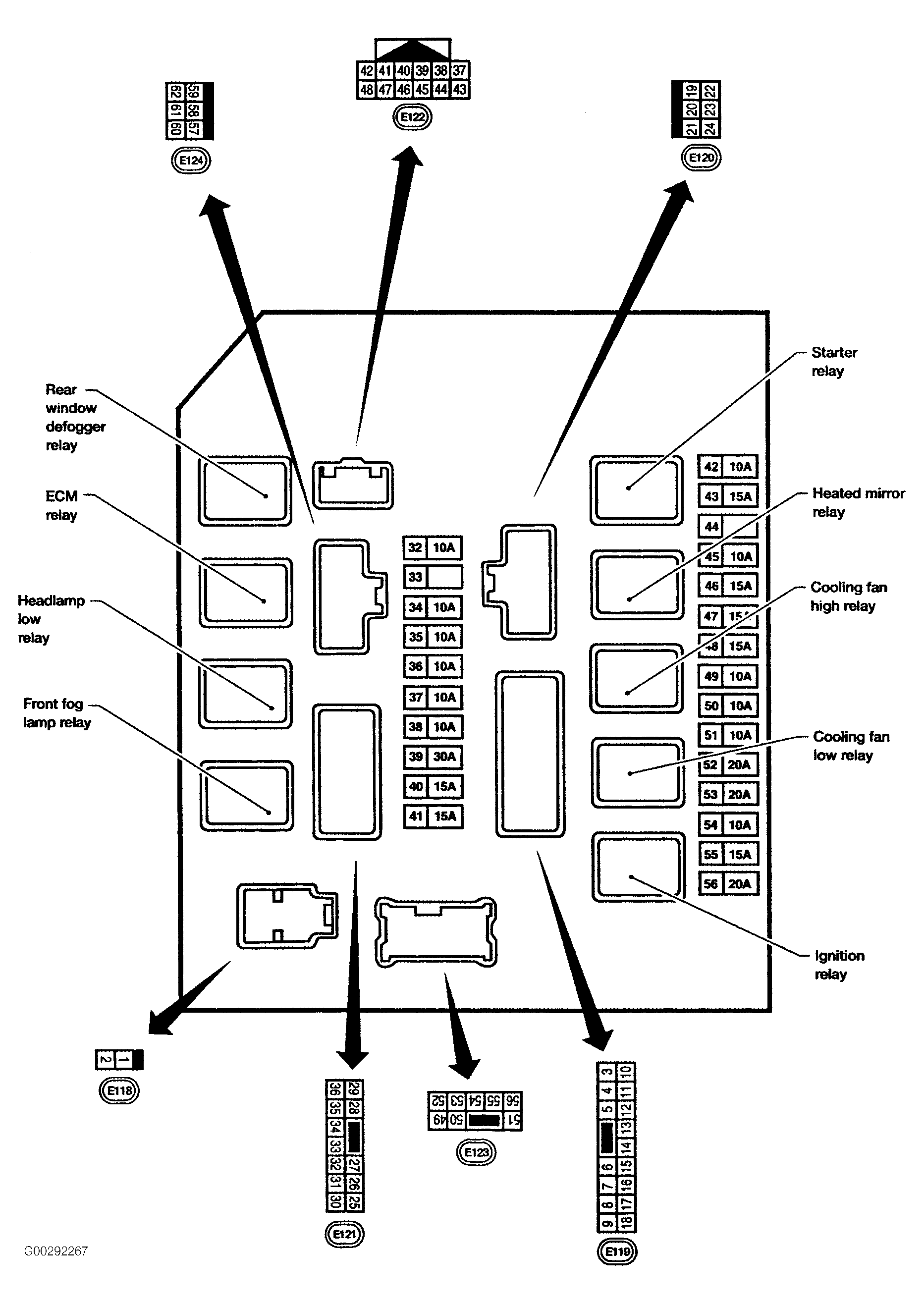

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room)

G00292267

Courtesy of NISSAN MOTOR CO., U.S.A.

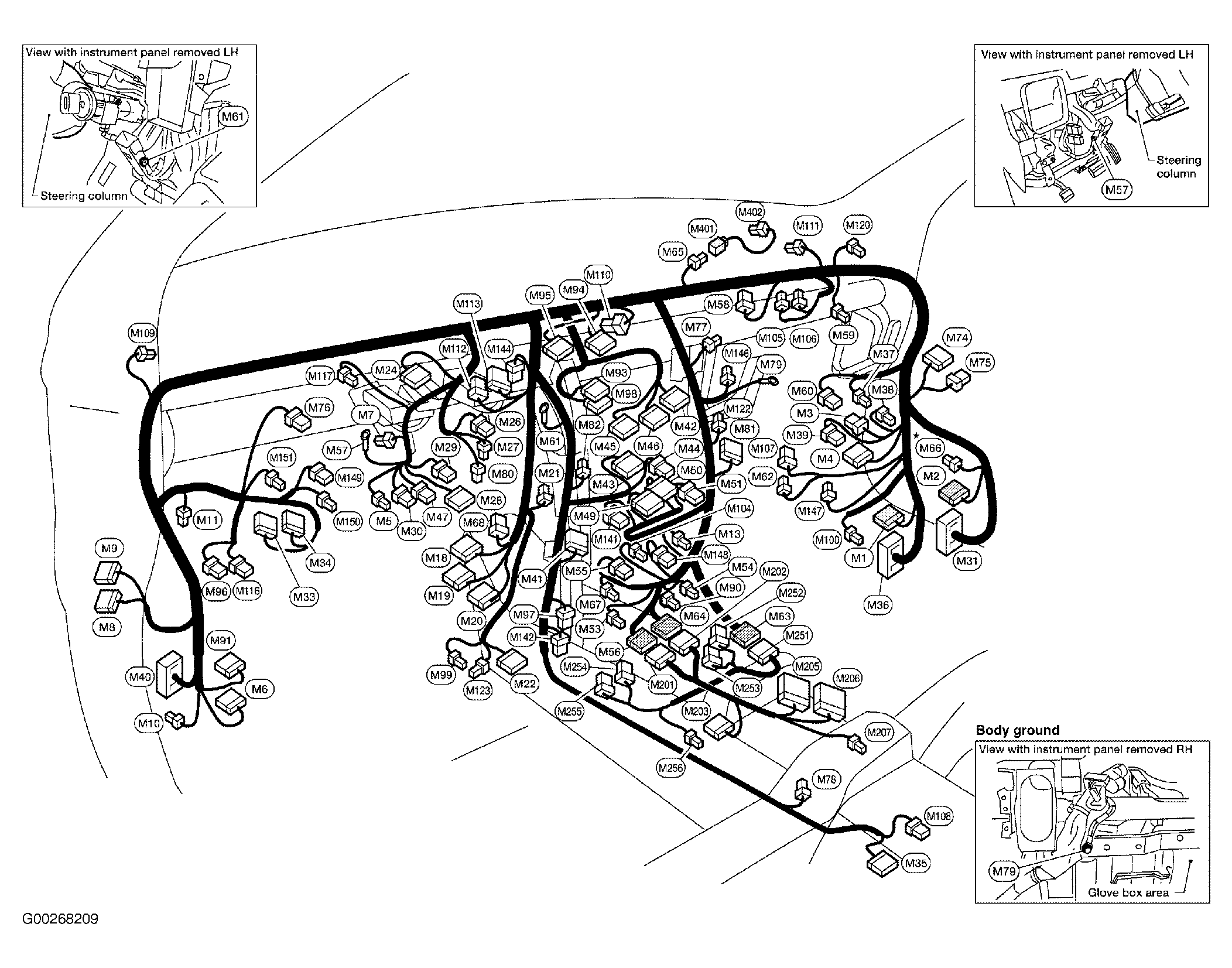

Fig 2: Dash & Center Console

G00268209

Courtesy of NISSAN MOTOR CO., U.S.A.

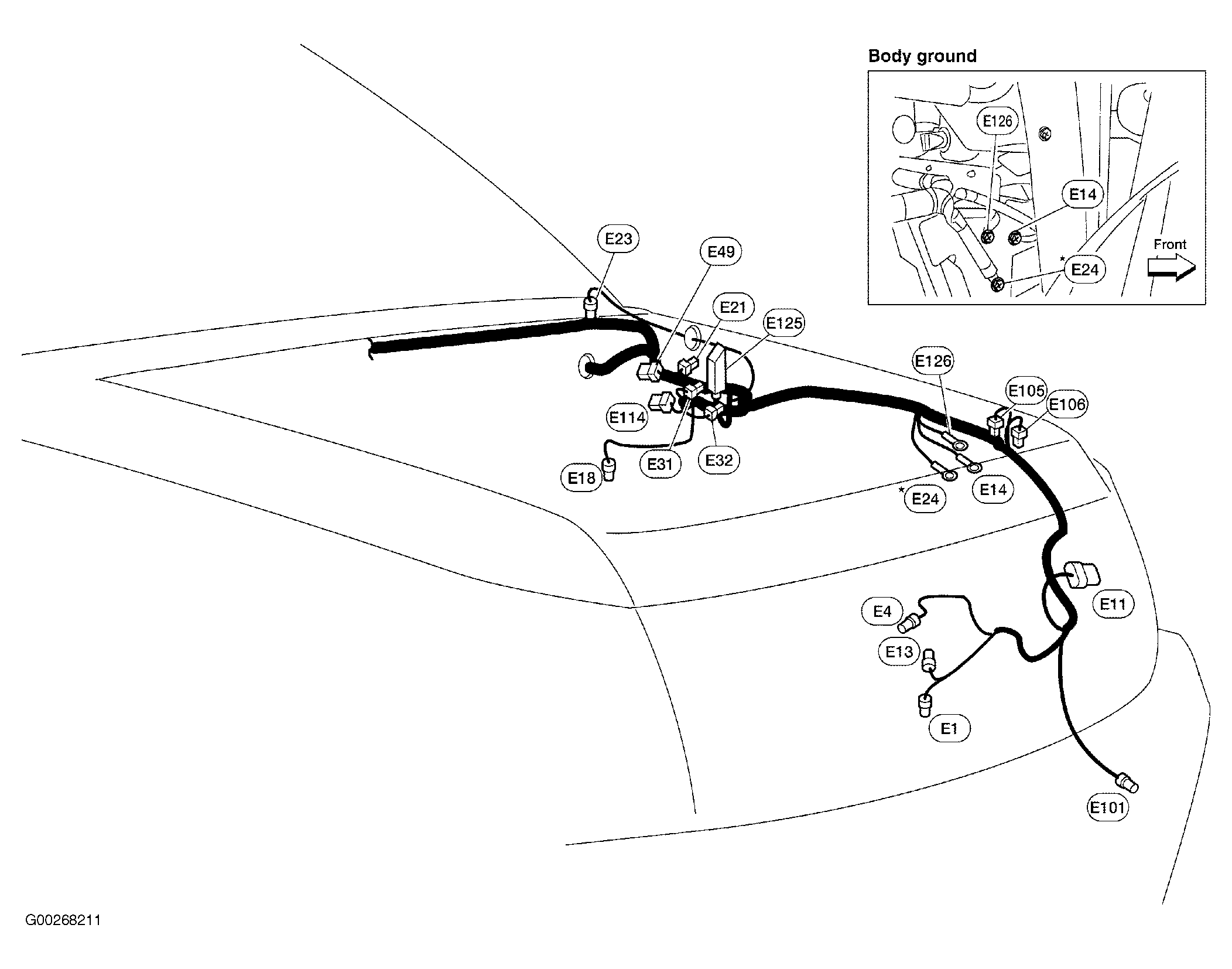

Fig 3: Left Side Of Engine Compartment

G00268211

Courtesy of NISSAN MOTOR CO., U.S.A.

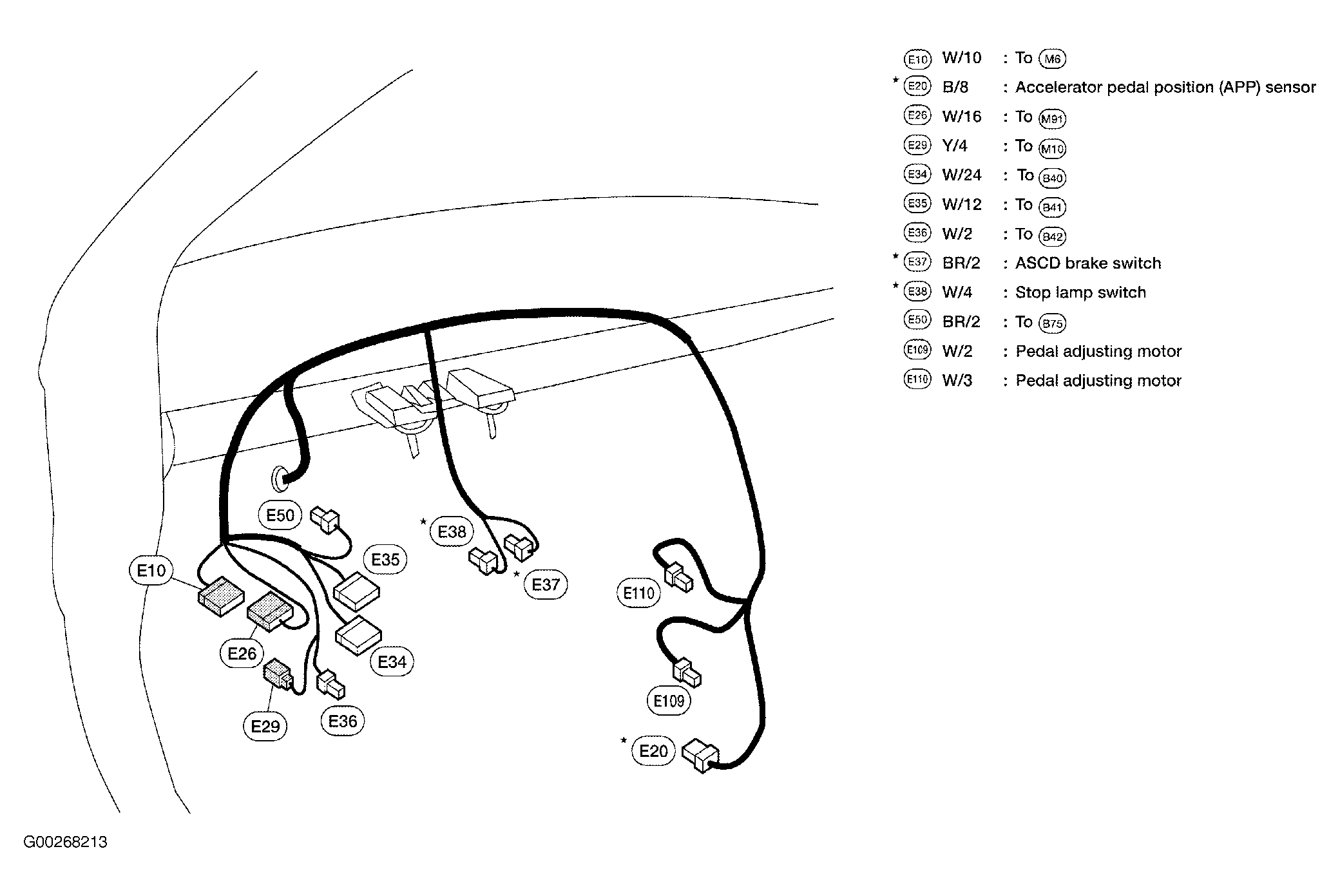

Fig 4: Left Side Of Dash

G00268213

Courtesy of NISSAN MOTOR CO., U.S.A.

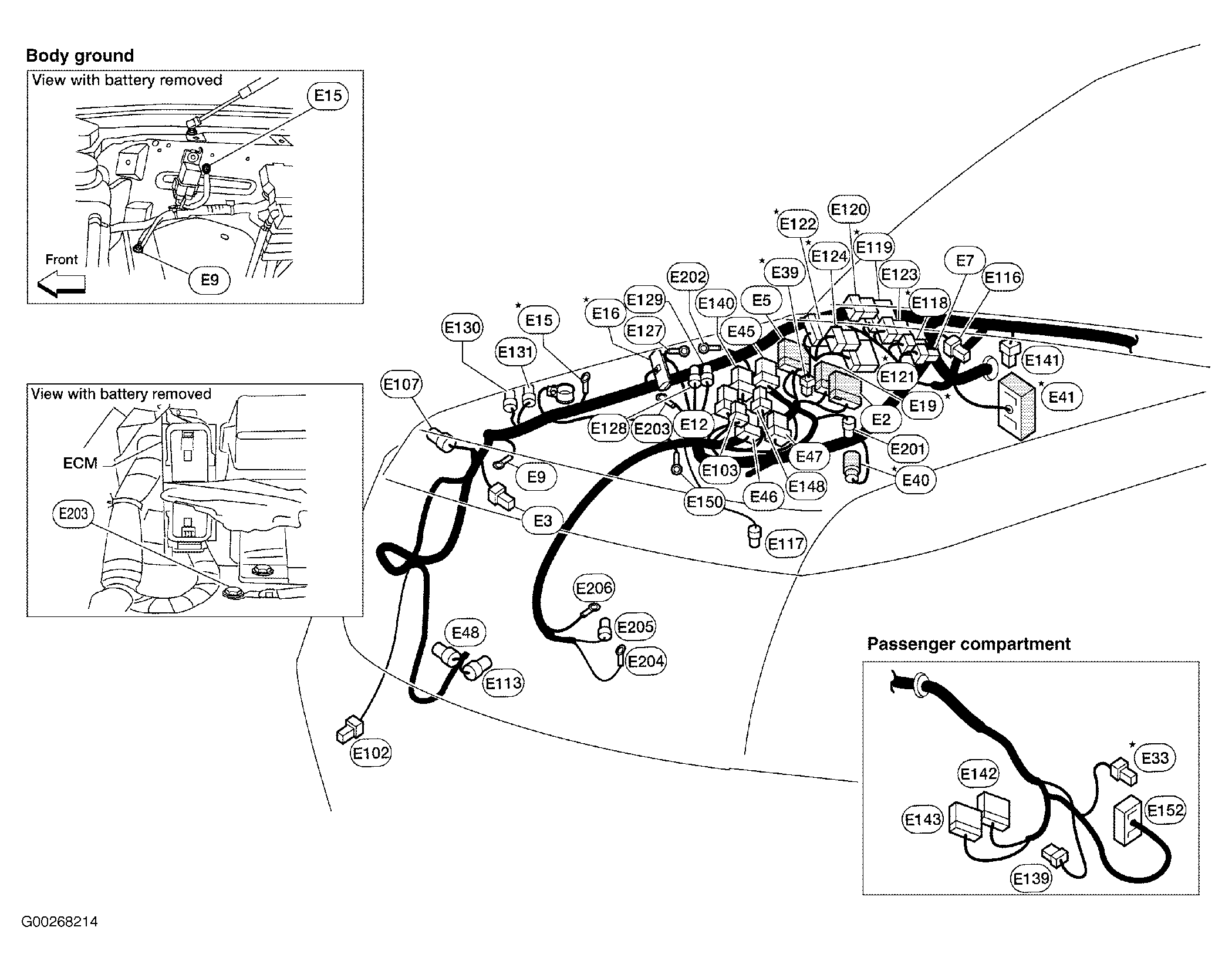

Fig 5: Right Side Of Engine Compartment

G00268214

Courtesy of NISSAN MOTOR CO., U.S.A.

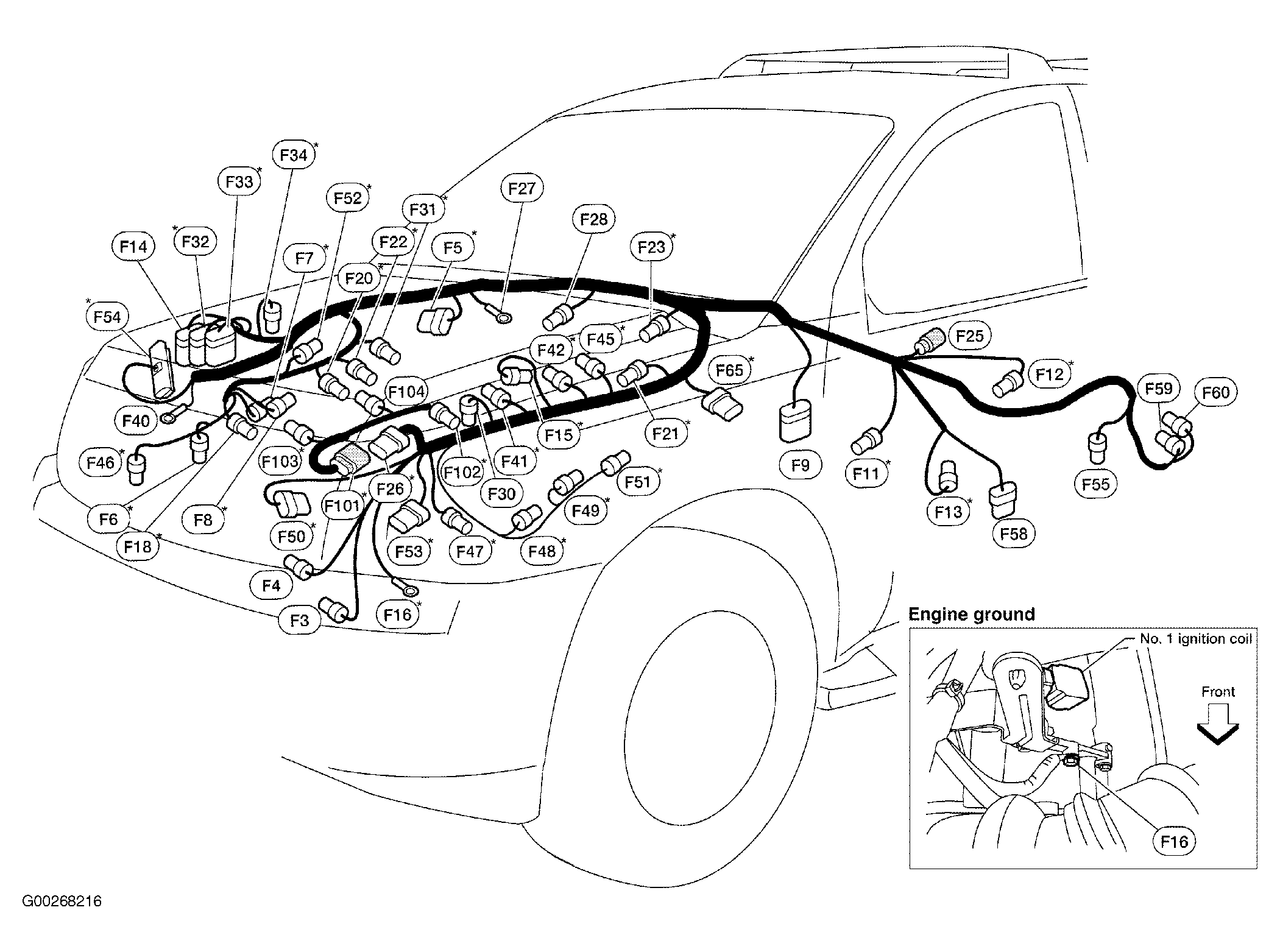

Fig 6: Engine Compartment

G00268216

Courtesy of NISSAN MOTOR CO., U.S.A.

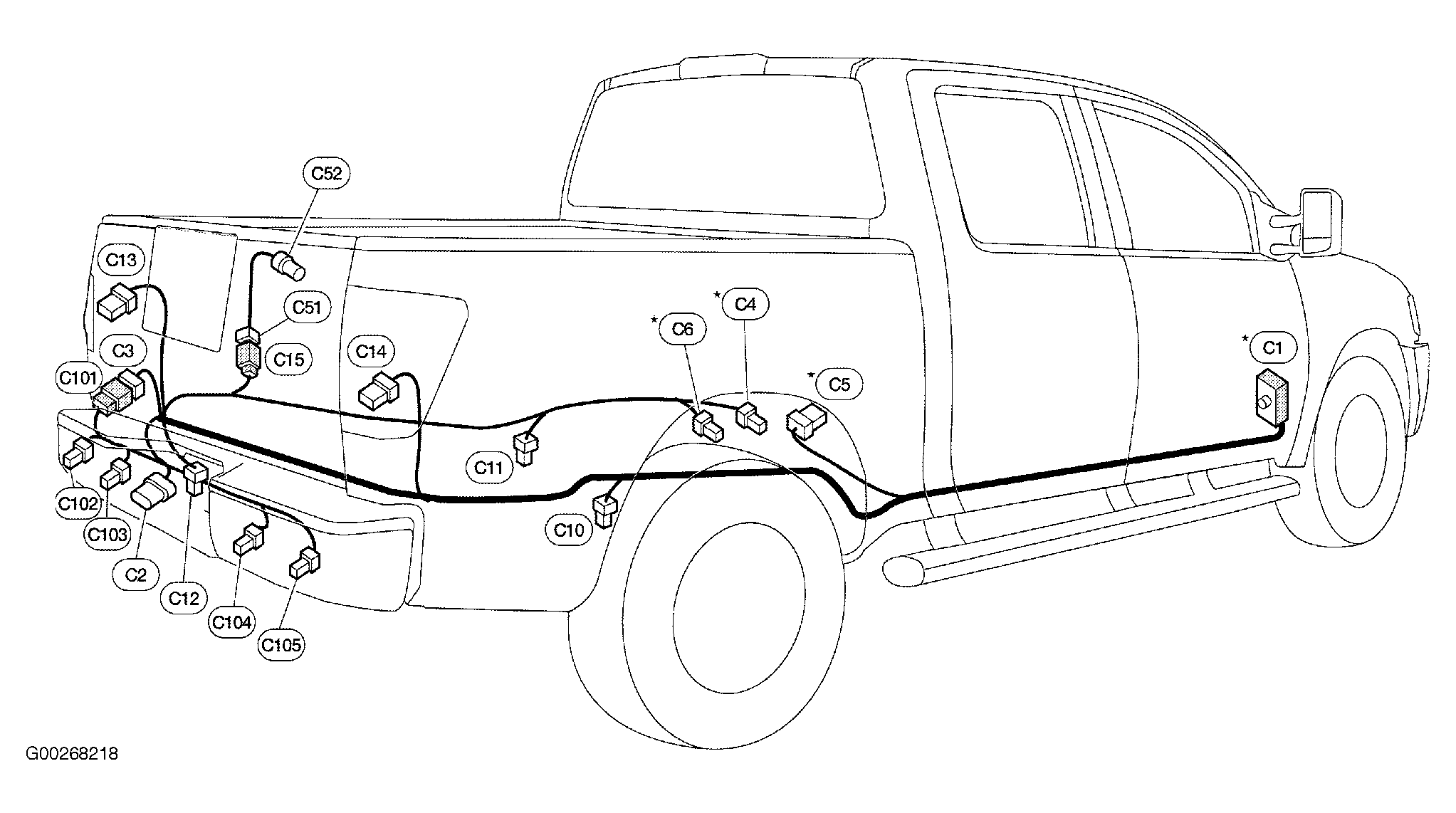

Fig 7: Rear Of Vehicle

G00268218

Courtesy of NISSAN MOTOR CO., U.S.A.

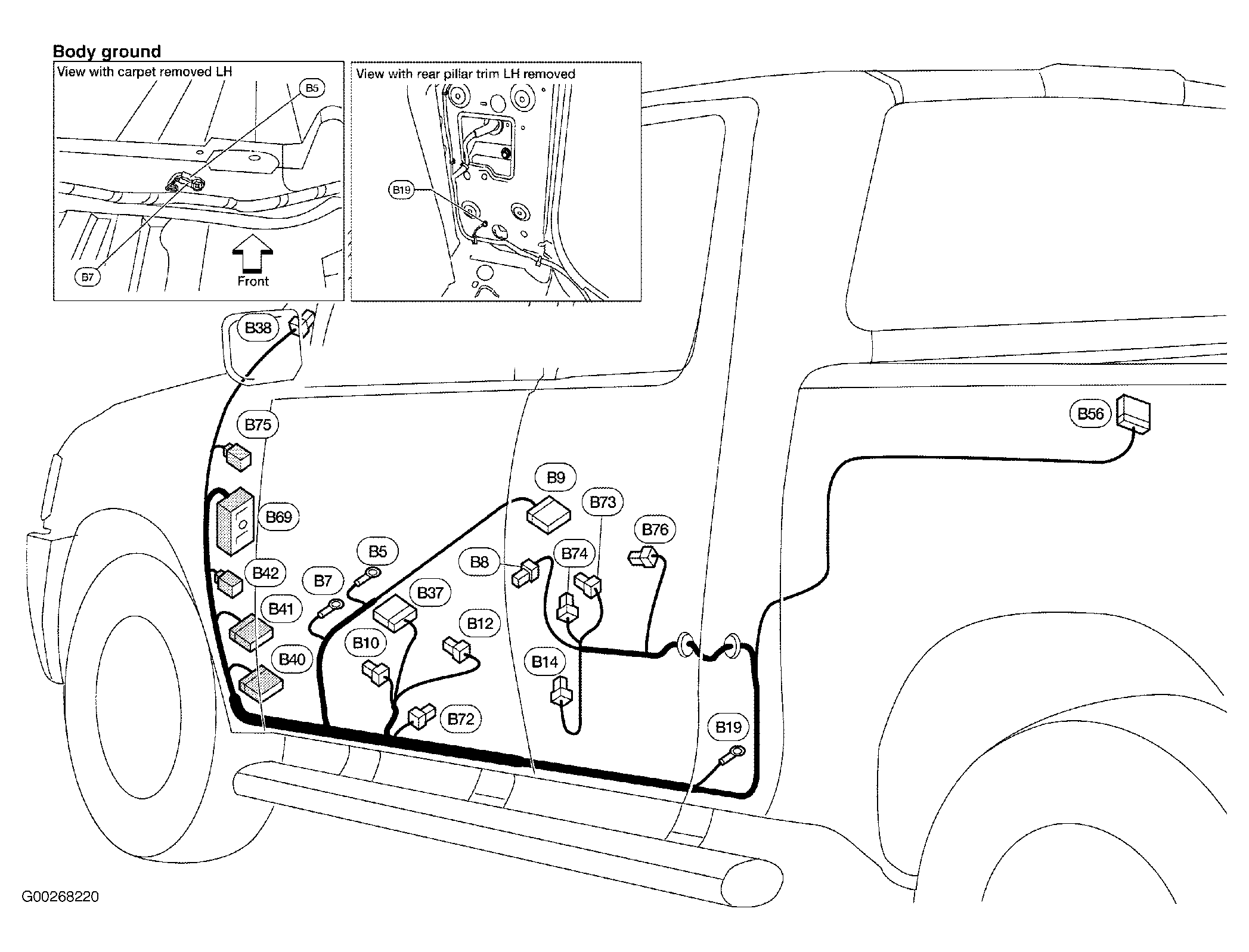

Fig 8: Left Side Of Vehicle (King Cab)

G00268220

Courtesy of NISSAN MOTOR CO., U.S.A.

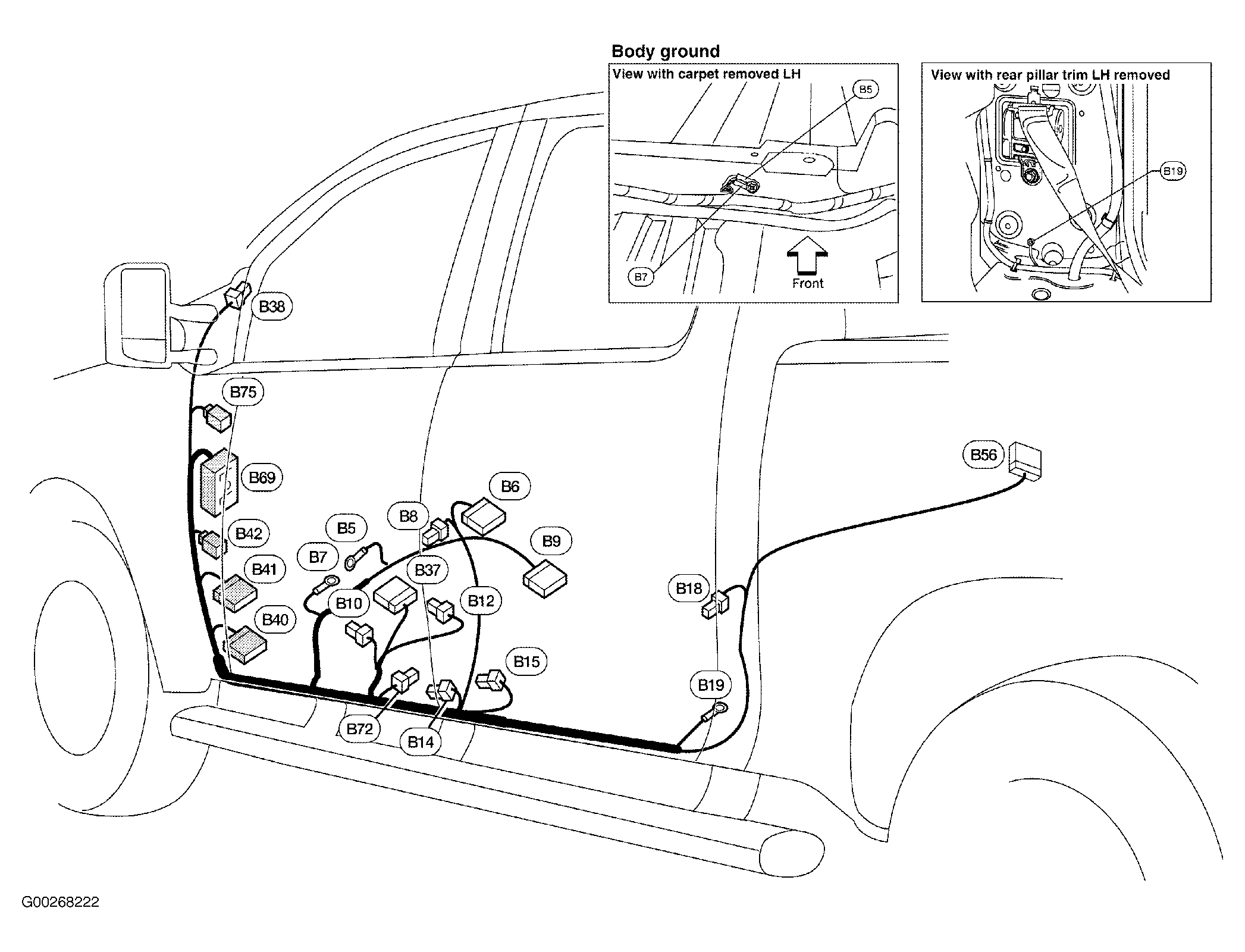

Fig 9: Left Side Of Vehicle (Crew Cab)

G00268222

Courtesy of NISSAN MOTOR CO., U.S.A.

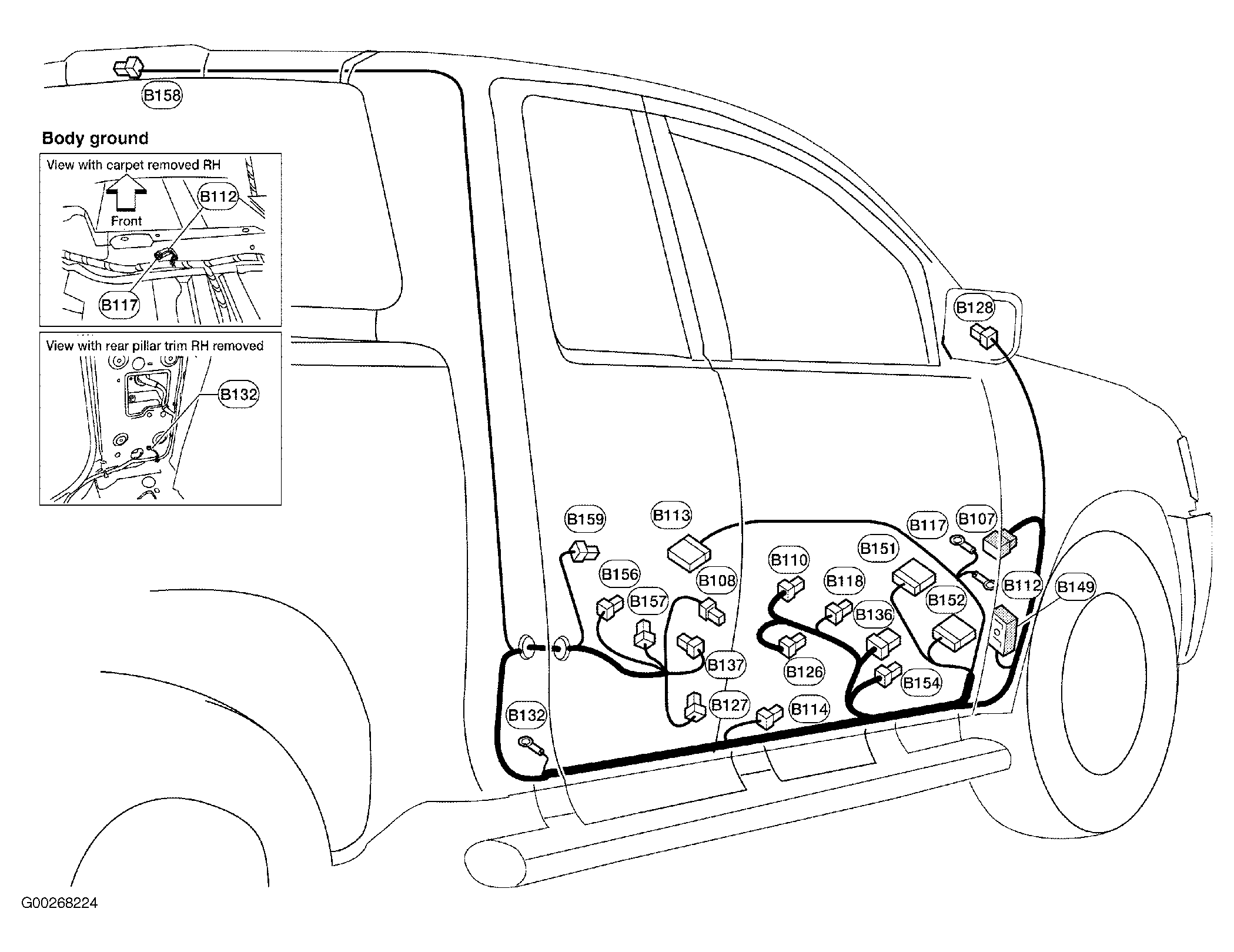

Fig 10: Right Side Of Vehicle (King Cab)

G00268224

Courtesy of NISSAN MOTOR CO., U.S.A.

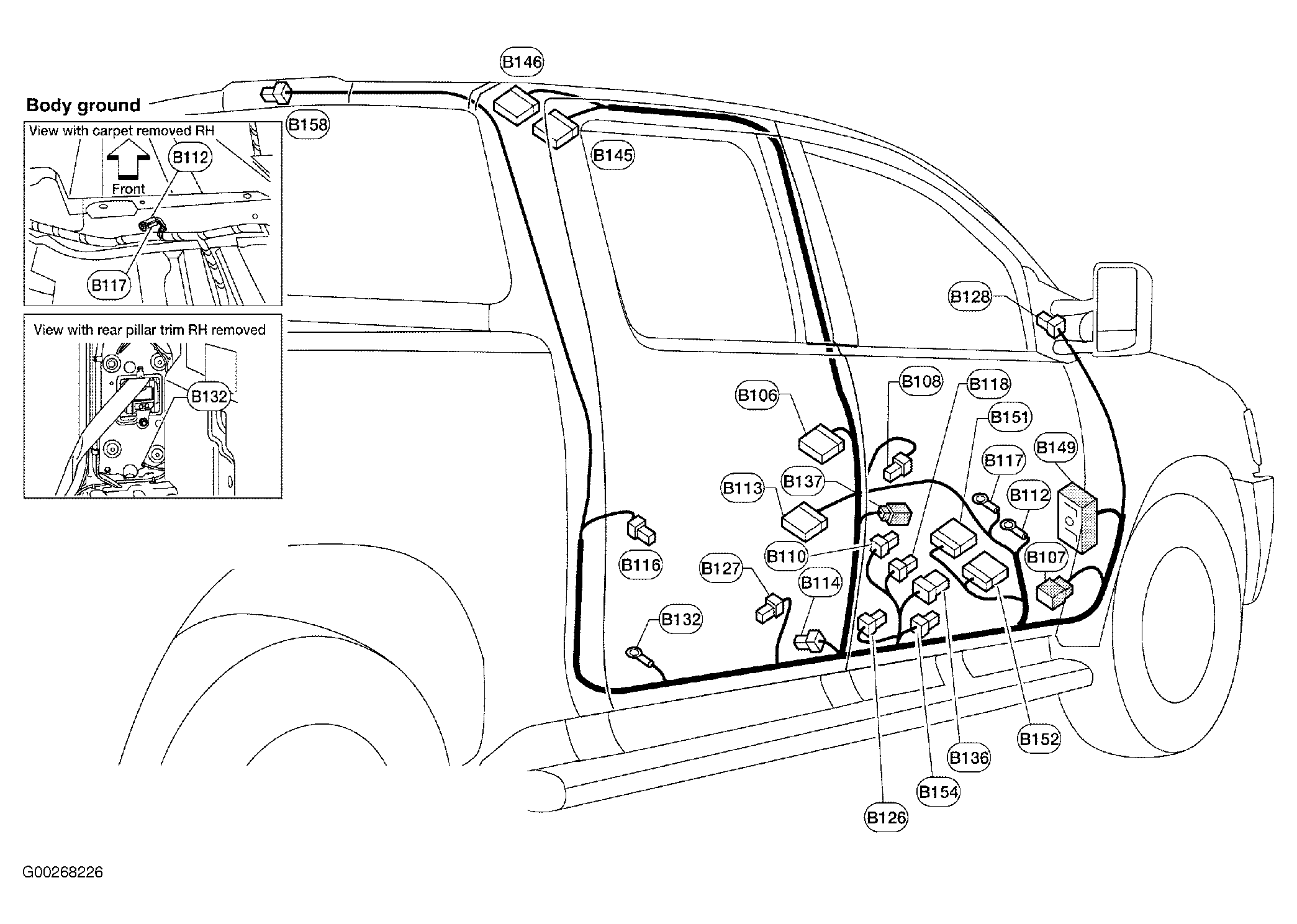

Fig 11: Right Side Of Vehicle (Crew Cab)

G00268226

Courtesy of NISSAN MOTOR CO., U.S.A.

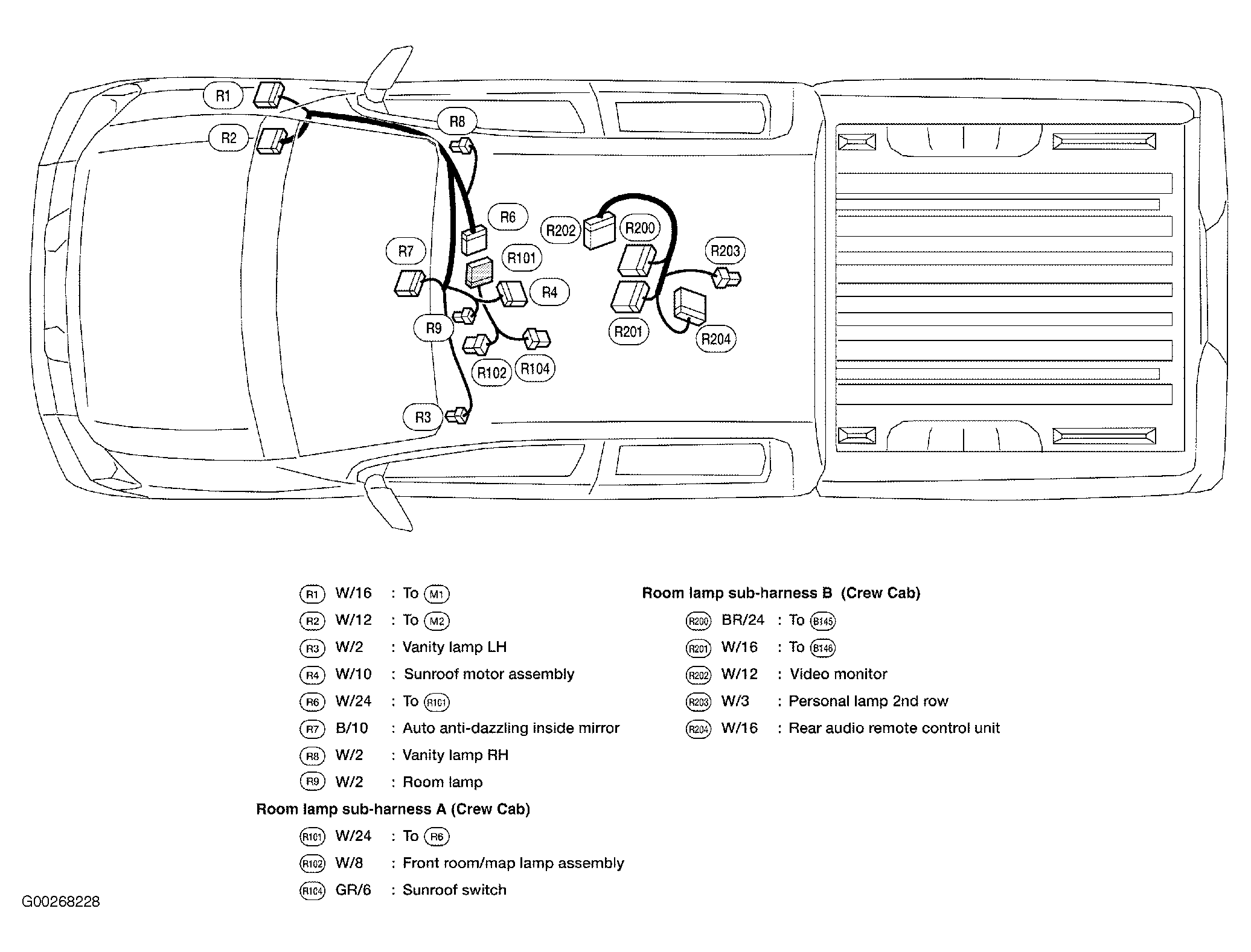

Fig 12: Roof

G00268228

Courtesy of NISSAN MOTOR CO., U.S.A.

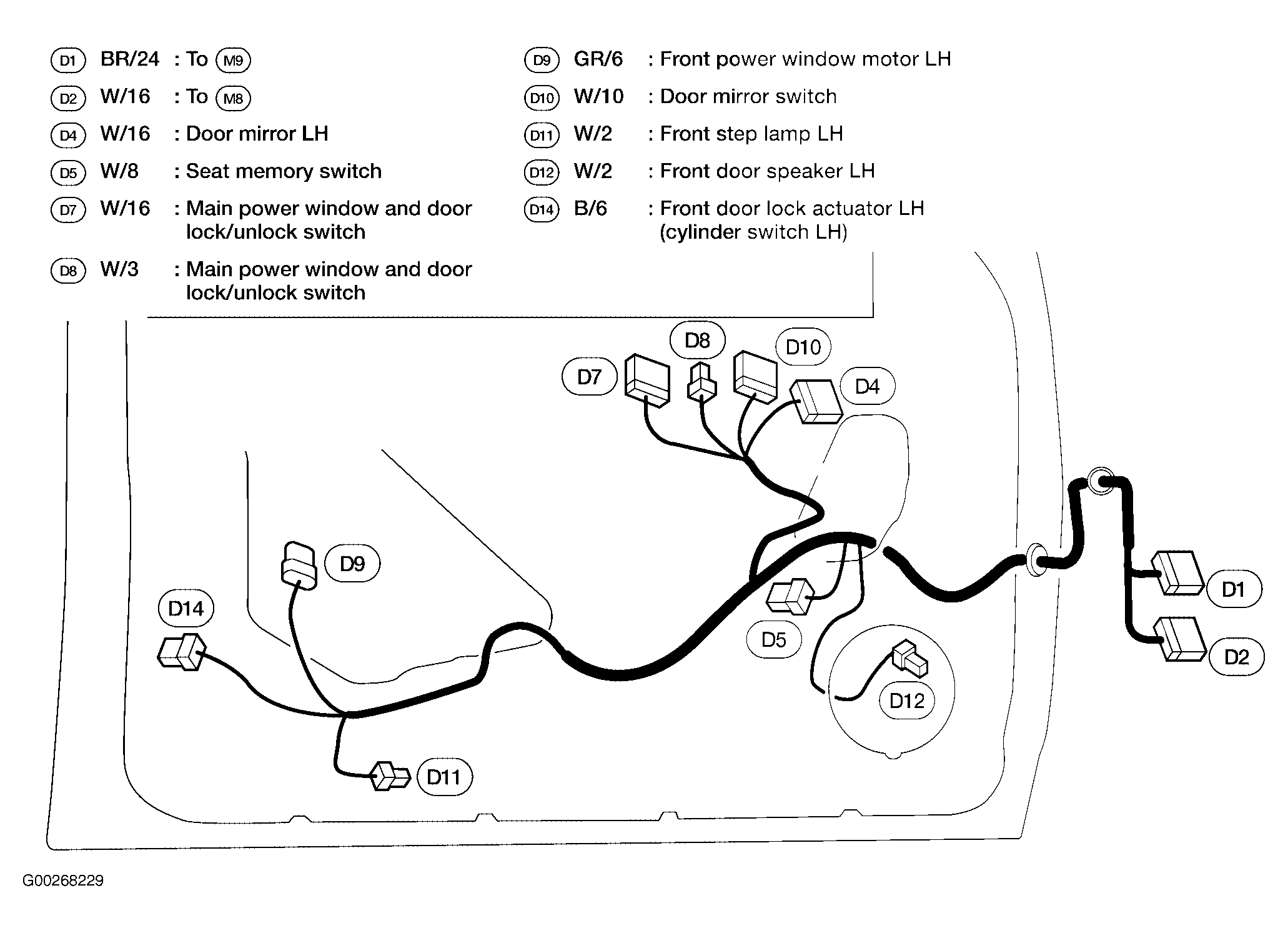

Fig 13: Left Front Door

G00268229

Courtesy of NISSAN MOTOR CO., U.S.A.

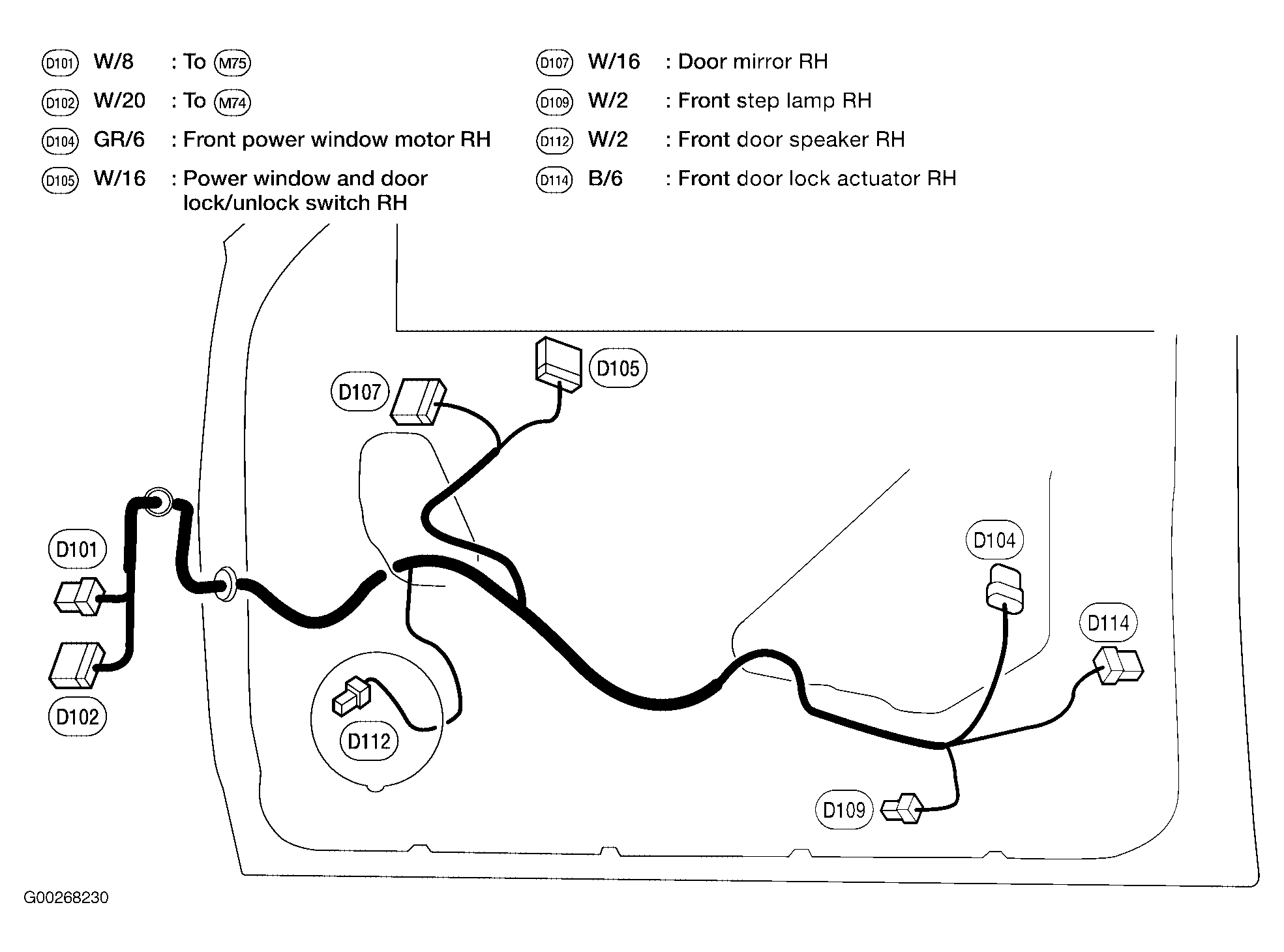

Fig 14: Right Front Door

G00268230

Courtesy of NISSAN MOTOR CO., U.S.A.

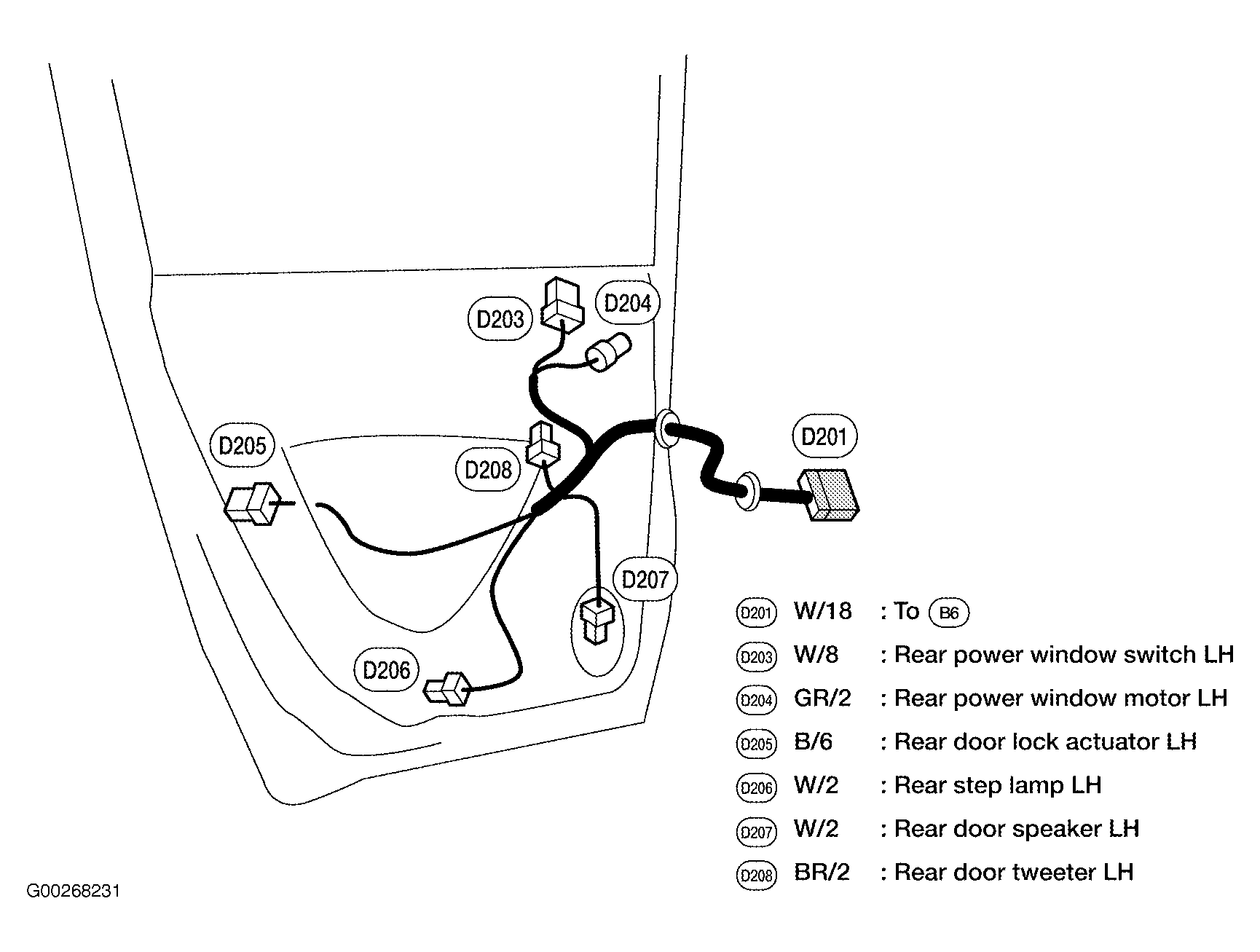

Fig 15: Left Rear Door (Crew Cab)

G00268231

Courtesy of NISSAN MOTOR CO., U.S.A.

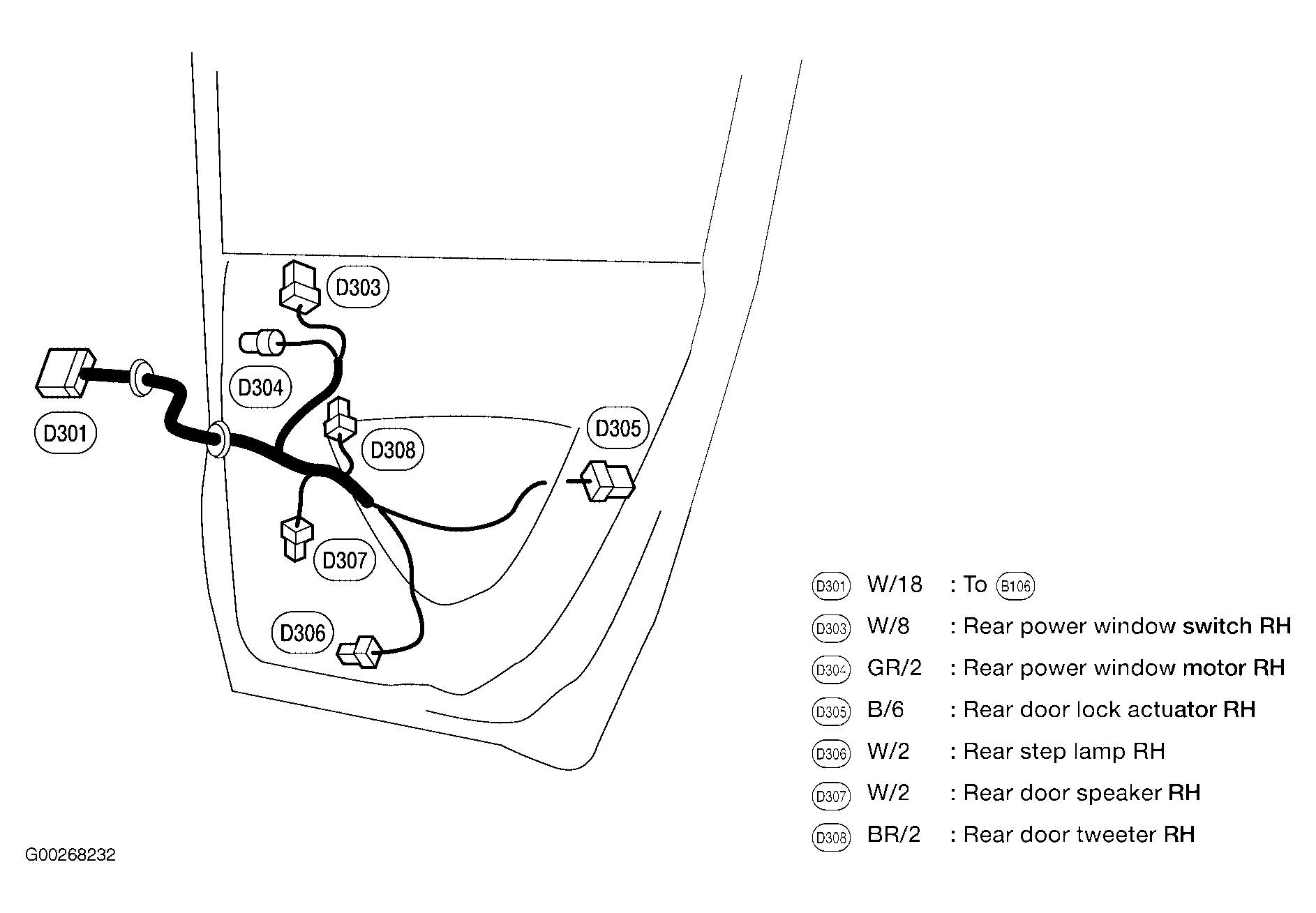

Fig 16: Right Rear Door (Crew Cab)

G00268232

Courtesy of NISSAN MOTOR CO., U.S.A.

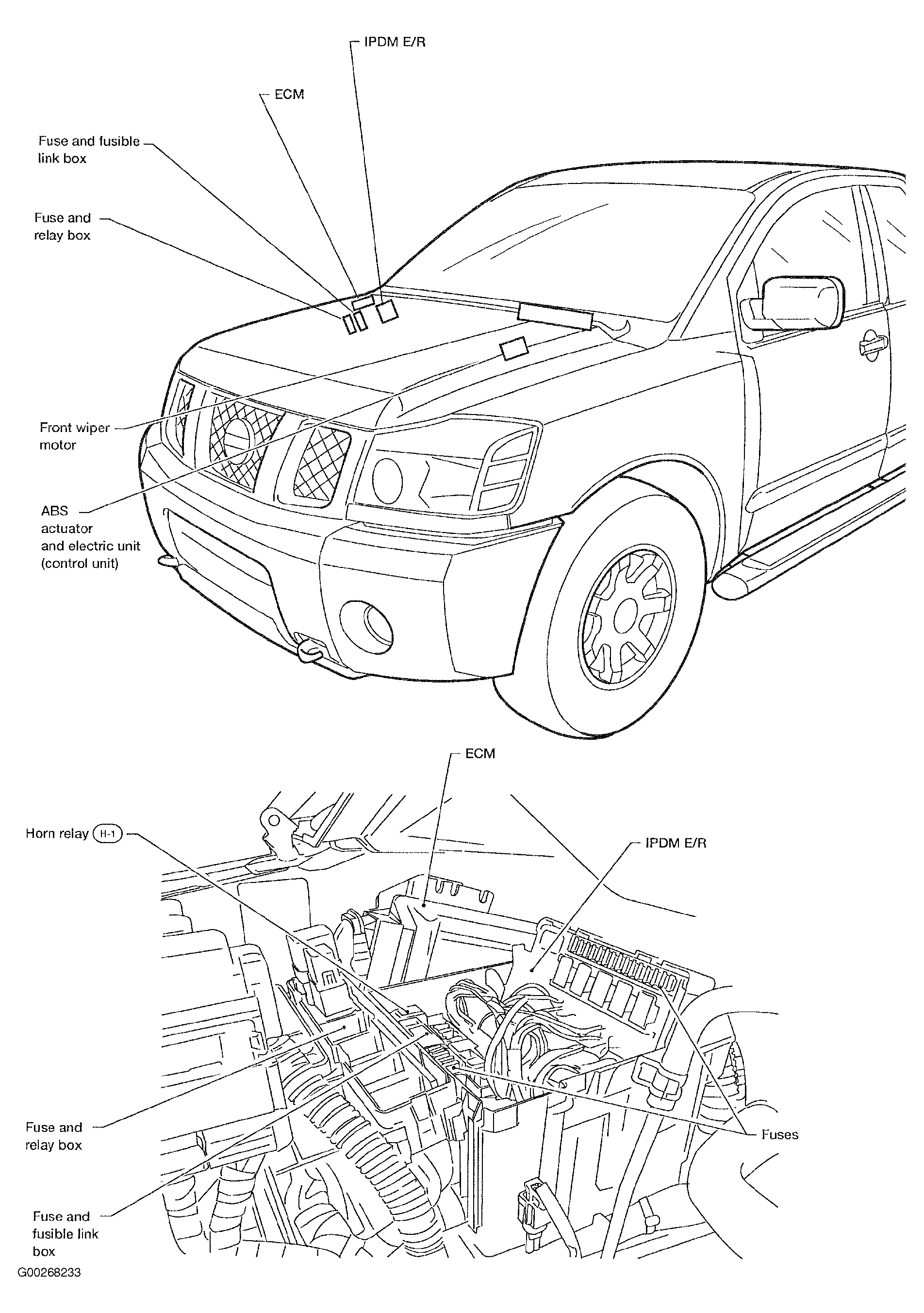

Fig 17: Engine Compartment

G00268233

Courtesy of NISSAN MOTOR CO., U.S.A.

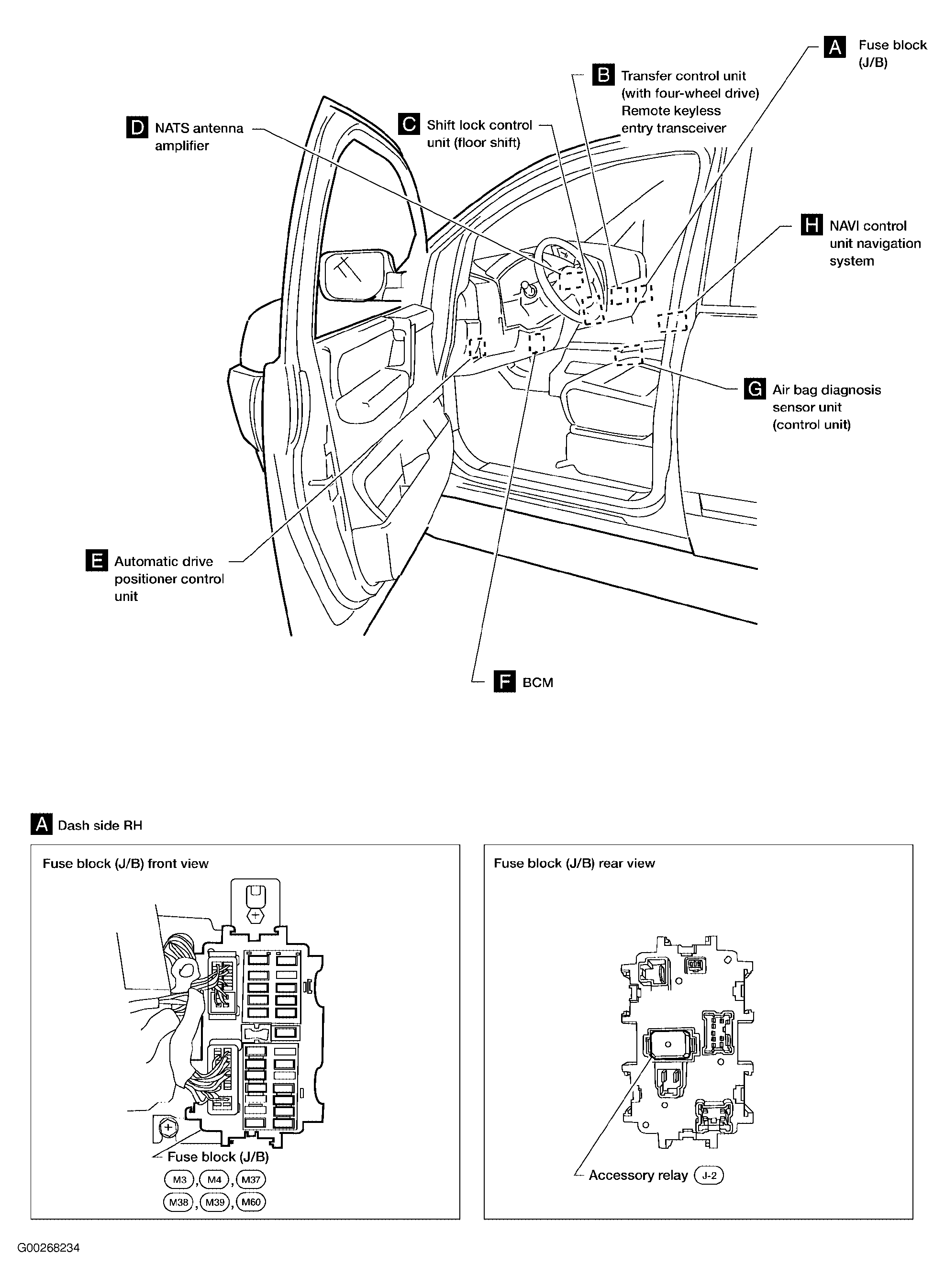

Fig 18: Dash Components (1 Of 2)

G00268234

Courtesy of NISSAN MOTOR CO., U.S.A.

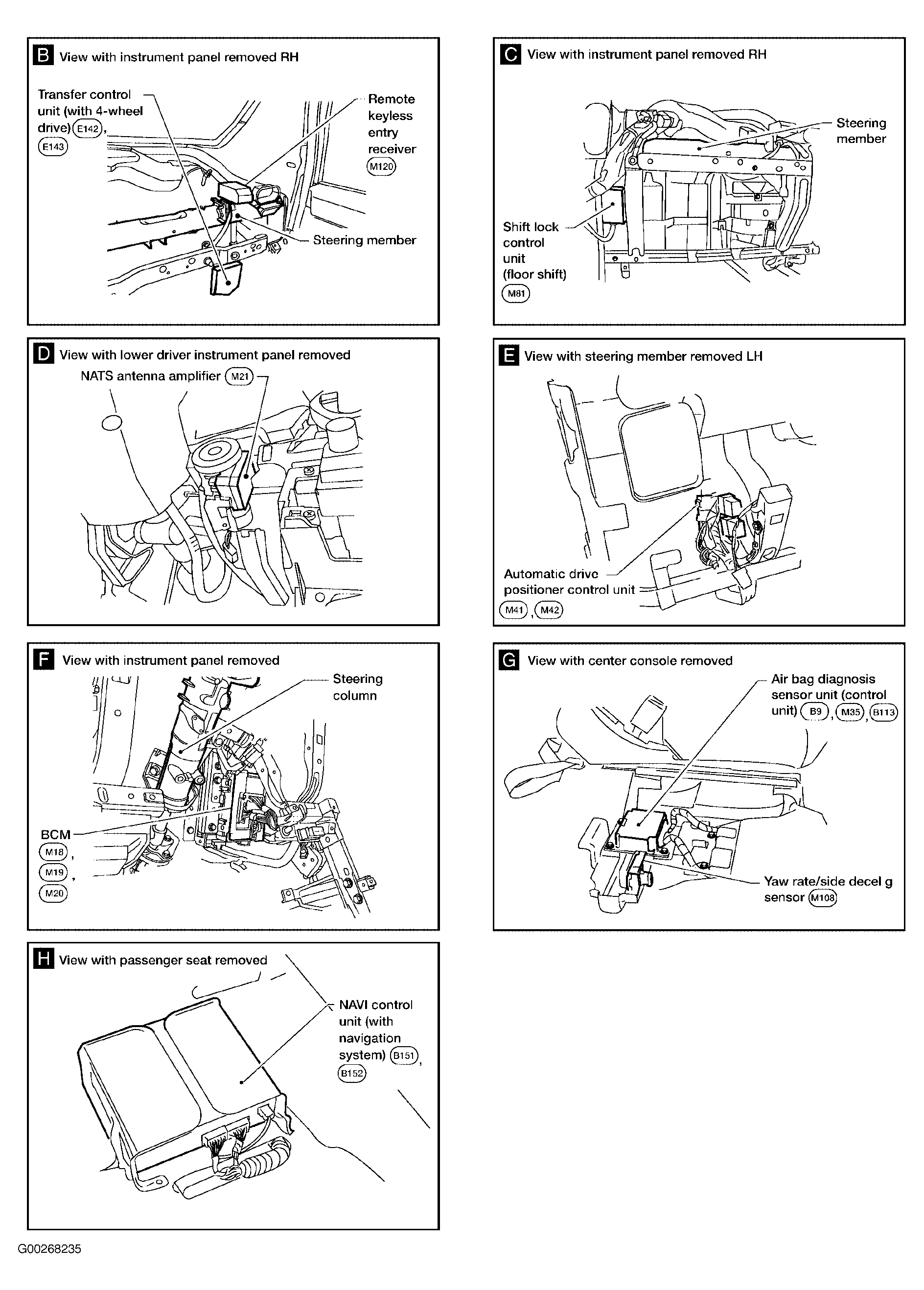

Fig 19: Dash Components (2 Of 2)

G00268235

Courtesy of NISSAN MOTOR CO., U.S.A.

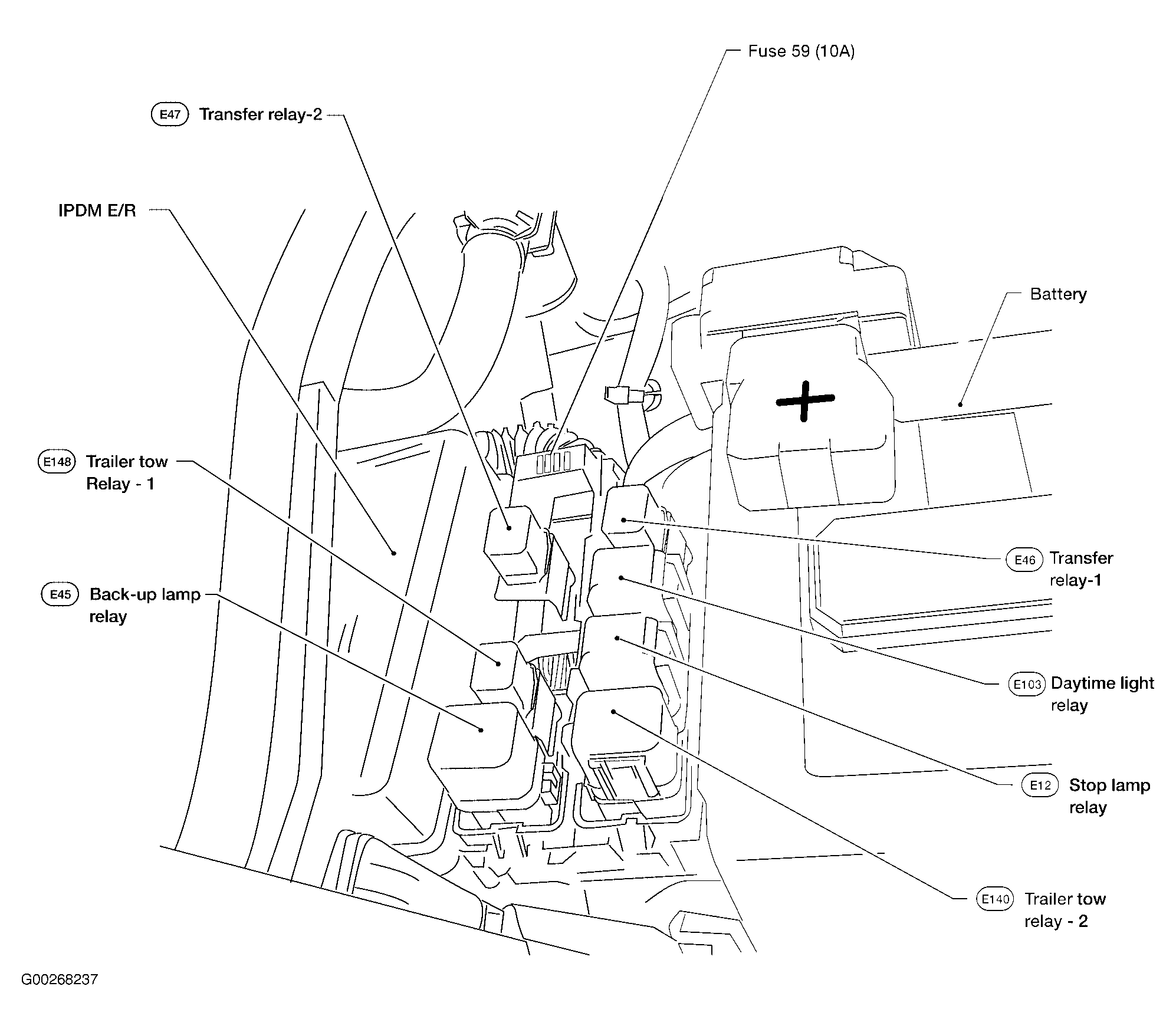

Fig 20: Fuse & Relay Box (Right Rear Of Engine Compartment)

G00268237

Courtesy of NISSAN MOTOR CO., U.S.A.
