Control Units
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & Electric Unit (Control Unit) | On left side of engine compartment. See Figure . |
| Air Bag Diagnosis Sensor Unit (Control Unit) | Below rear of center console. See Figure . |
| Air Bag Module (Front Passenger) (M77) | Behind right side of dash. See Figure . |
| A/T Device (M68) | At base of shifter assembly. See Figure . |
| Automatic Drive Positioner Control Unit | Behind left side of dash. See Figure . |
| BCM | Behind center of dash. See Figure . |
| Display Control Unit (NAVI) (M94) | Behind upper center of dash. See Figure . |
| ECM | At right side of engine compartment. See Figure . |
| Electric Throttle Control Actuator (F50) | At left front of engine compartment. See Figure . |
| NAVI Control Unit (W/ Navigation System) | Under right front seat. See Figure . |
| Shift Lock Control Unit (Floor Shift) | Behind right side of dash. See Figure . |

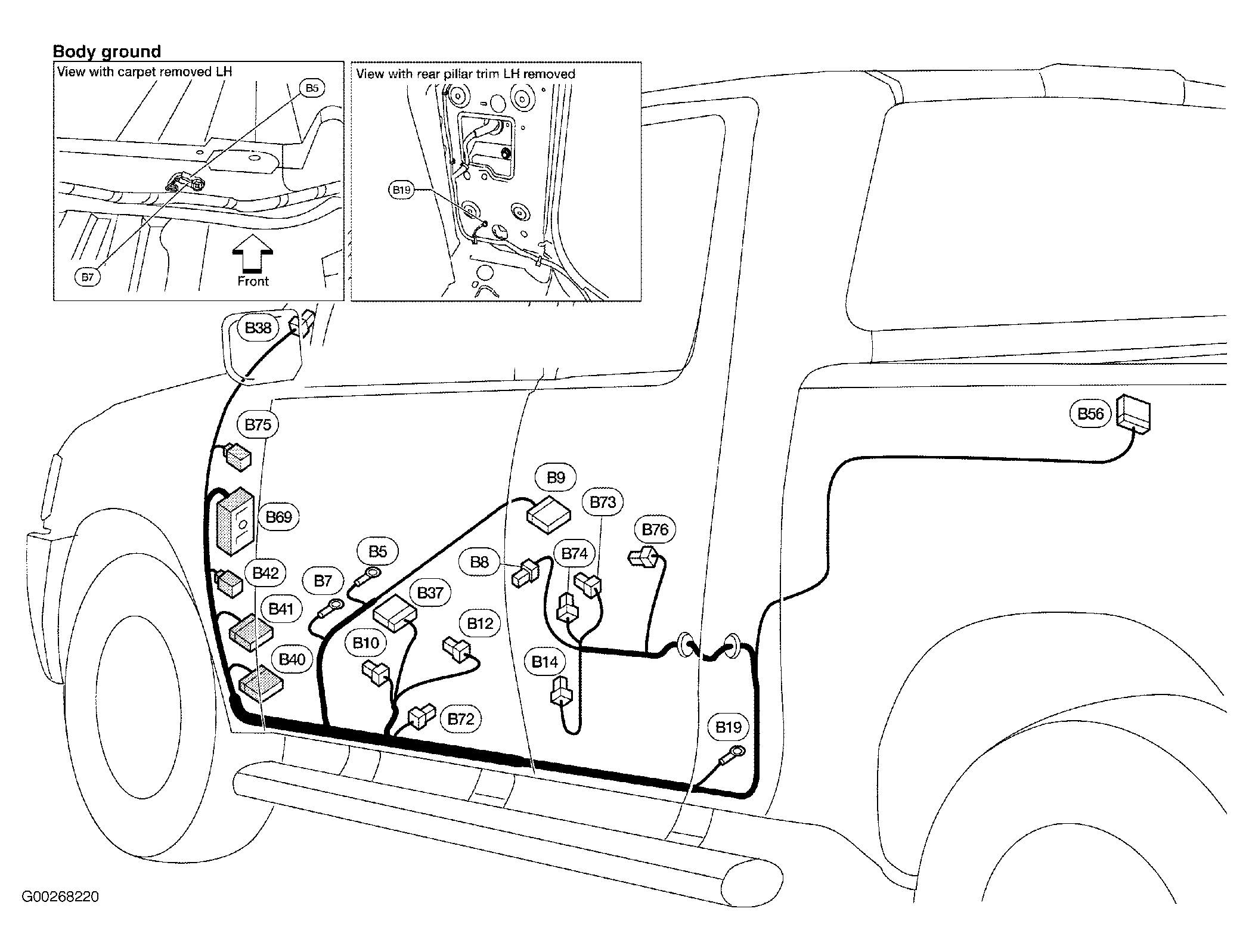

| Side Air Bag Module (Left Front) (Crew Cab) (B10) | Under left front seat. See Figure . |

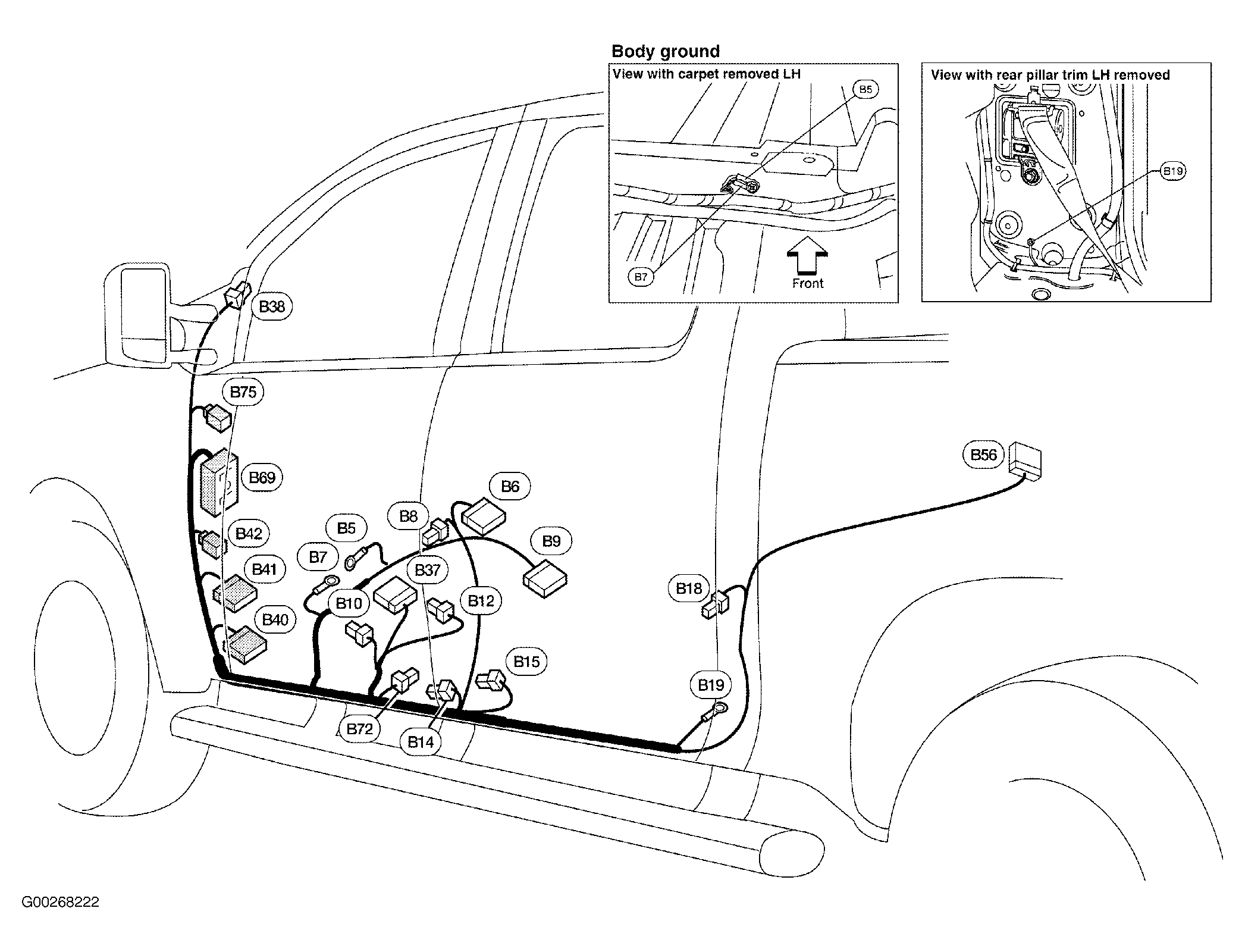

| Side Air Bag Module (Left Front) (King Cab) (B10) | Under left front seat. See Figure . |

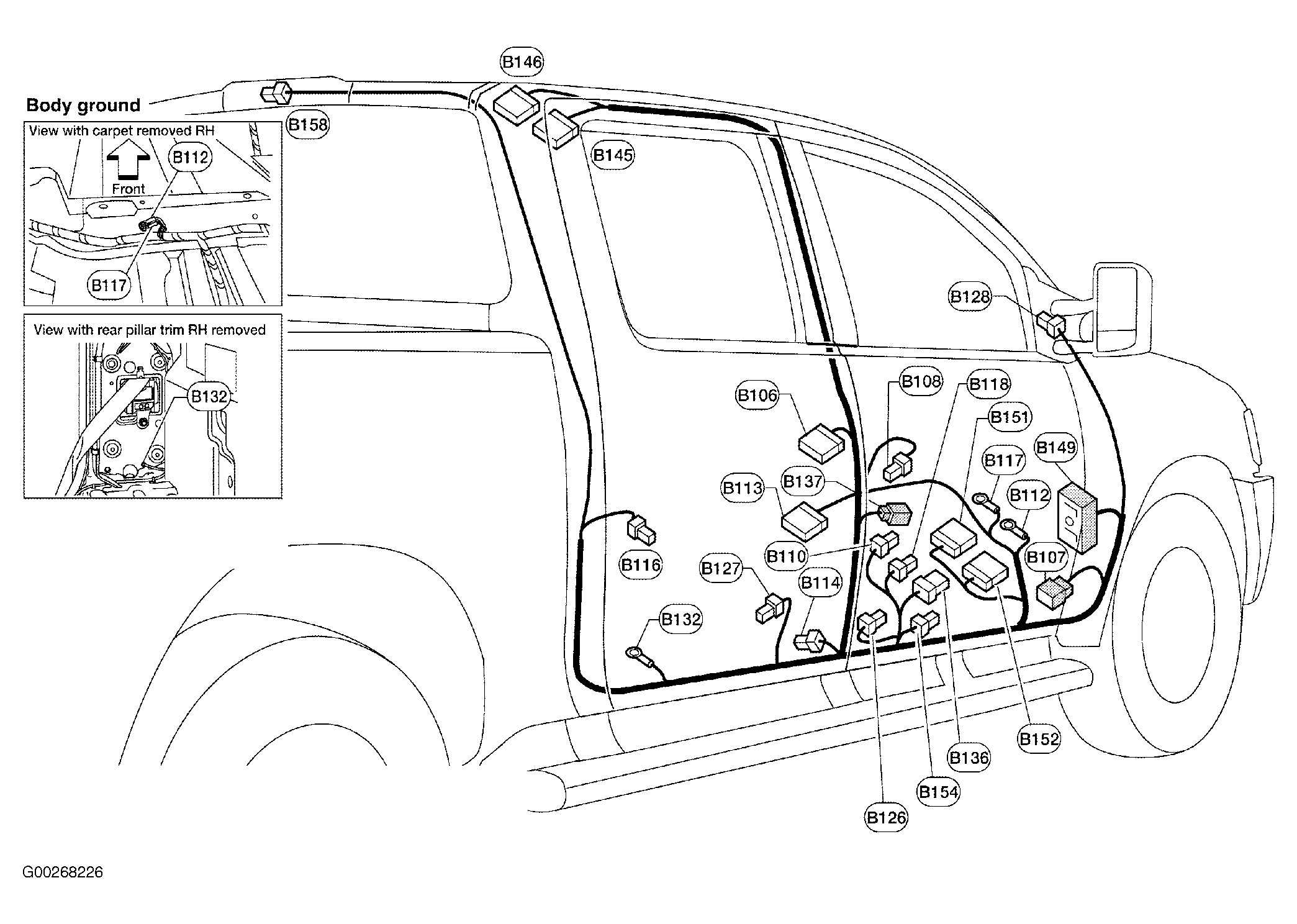

| Side Air Bag Module (Right Front) (Crew Cab) (B126) | Under right front seat. See Figure . |

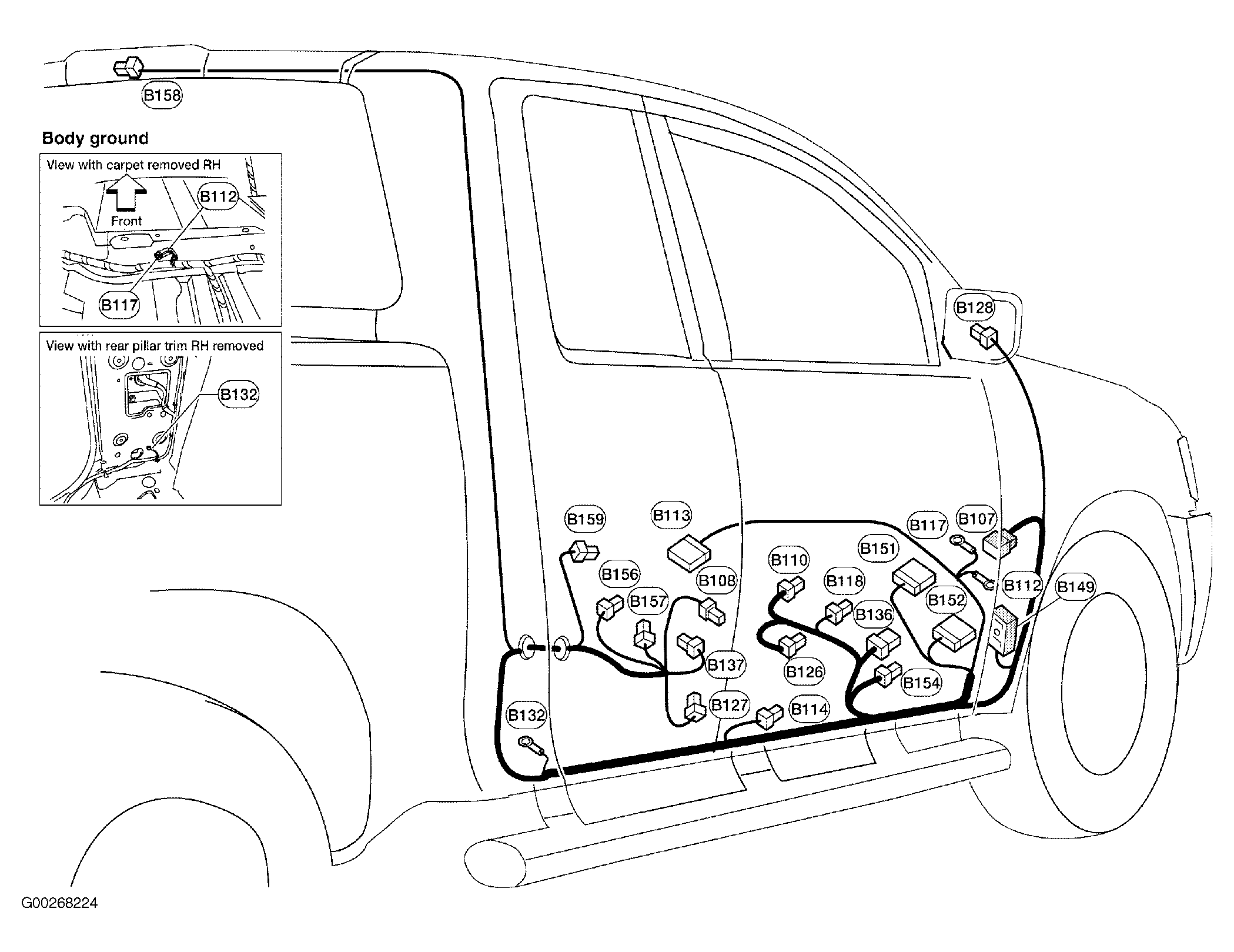

| Side Air Bag Module (Right Front) (King Cab) (B126) | Under right front seat. See Figure . |
| Side Curtain Air Bag Module (Left) (Crew Cab) (B38) | At base of left "A" pillar. See Figure . |
| Side Curtain Air Bag Module (Left) (King Cab) (B38) | At base of left "A" pillar. See Figure . |
| Side Curtain Air Bag Module (Right) (Crew Cab) (B128) | At base of right "A" pillar. See Figure . |
| Side Curtain Air Bag Module (Right) (King Cab) (B128) | At base of right "A" pillar. See Figure . |
| Sonar Control Unit (Crew Cab) (B56) | At center rear of cab. See Figure . |
| Sonar Control Unit (King Cab) (B56) | At center rear of cab. See Figure . |

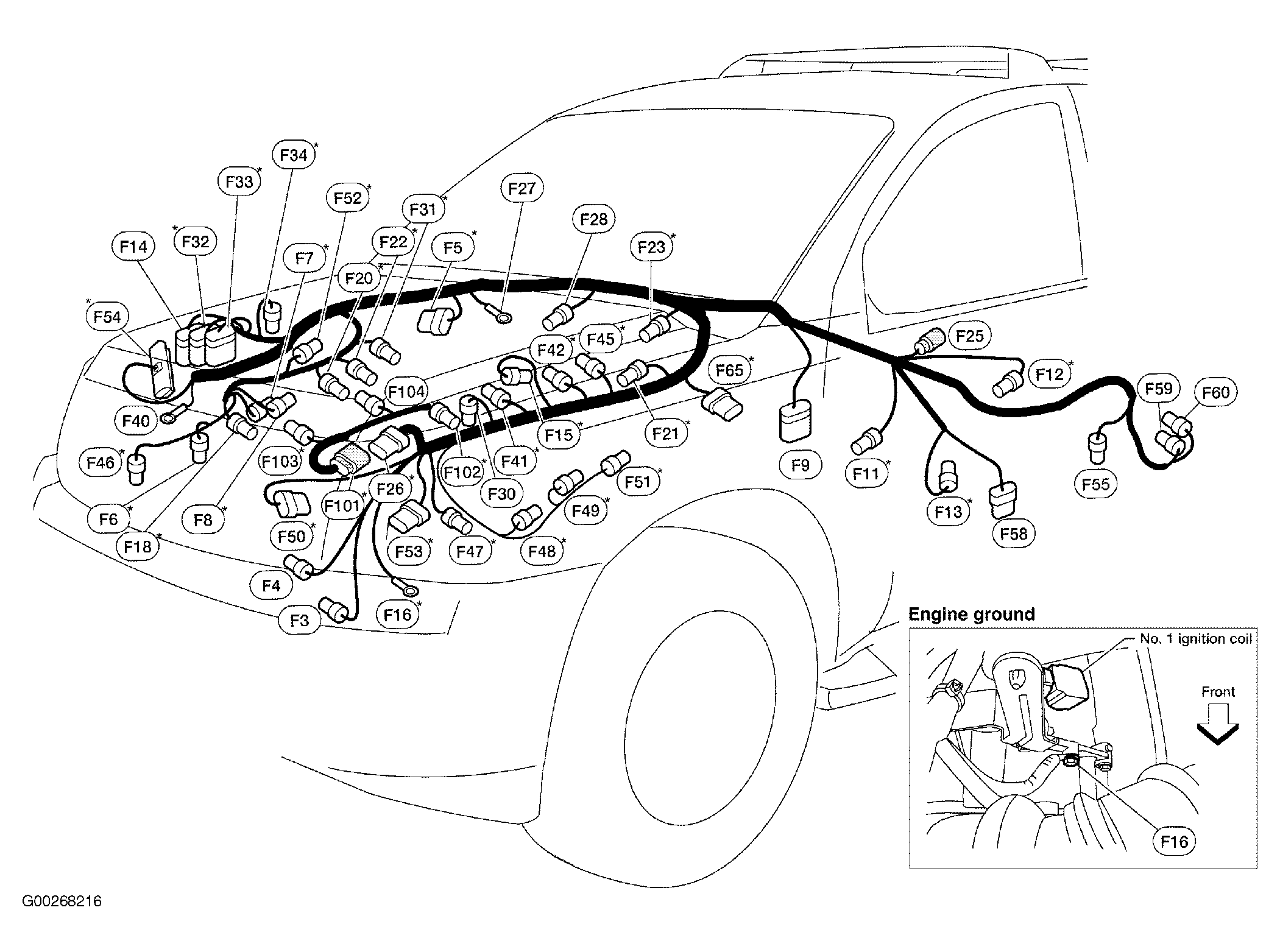

| Transfer Control Device (4WD) (F58) | At top front of transmission. See Figure . |

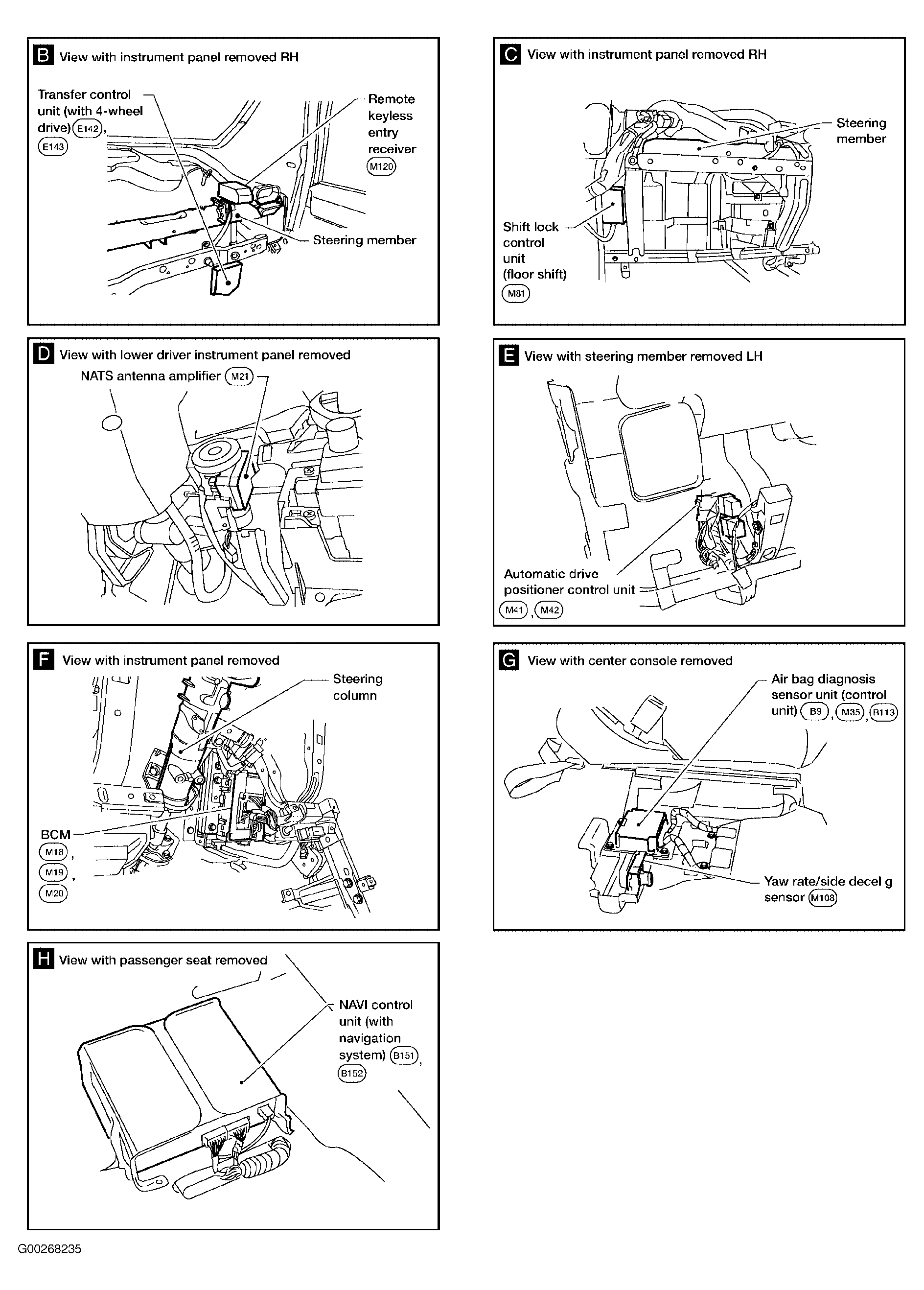

| Transfer Control Unit (With 4-Wheel Drive) | Behind lower right side of dash. See Figure . |
