Check Fuel Level Sensor Unit and Fuel Pump

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between fuel level sensor unit and fuel pump connector terminals 2 and 5.

RESISTANCE CHART

Terminals

Float position mm (in)

Resistance value ohm (Approx.)

⁽¹⁾

Empty

15(0.59)

⁽¹⁾

Full

193(7.6)

⁽¹⁾	: When float rod is in contact with stopper.

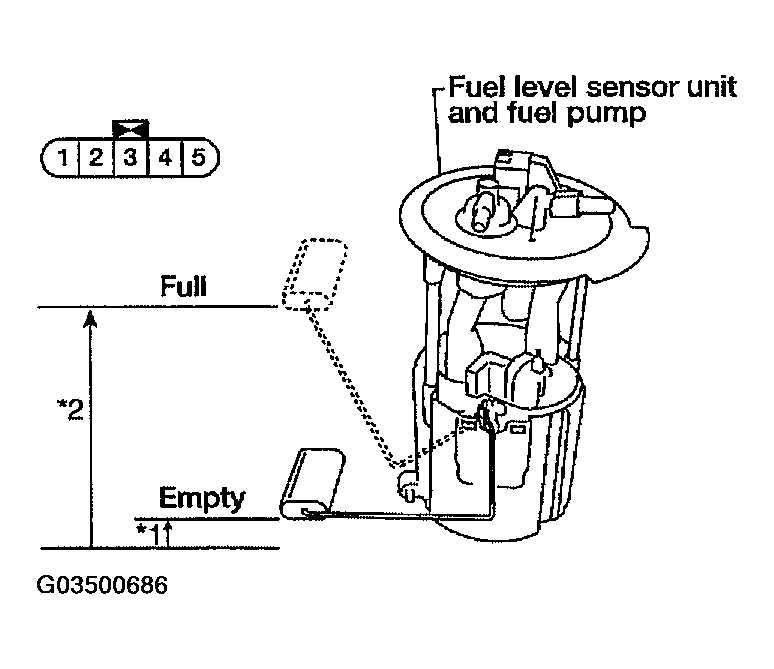

Fig 1: Identifying Fuel Level Sensor Unit

Courtesy of NISSAN MOTOR CO., U.S.A.
