Steering Switch Check

1. AV SWITCH SELF-DIAGNOSIS FUNCTION CHECK
   1. Start AV switch self-diagnosis function. Refer to "AV SWITCH SELF-DIAGNOSIS FUNCTION  ".
   2. Operate steering switch.

   Does steering switch operate normally?

   1. YES: INSPECTION END.
   2. NO: GO TO 2.
2. CHECK HARNESS
   1. Turn ignition switch OFF.
   2. Disconnect AV switch connector and spiral cable connector.
   3. Check continuity between spiral cable harness connector terminal and AV switch harness connector terminal.
      CONTINUITY SPECIFICATION



      Terminals				Continuity
      Spiral cable		AV switch
      Connector	Terminal	Connector	Terminal (Wire color)
      M30	32 (G)	M98	13 (G)	Yes
      	31 (B/Y)		14 (B/Y)
      	24 (R)		12 (R)

   4. Check continuity between AV switch and ground.
      CONTINUITY SPECIFICATION



      Terminals			Continuity
      AV switch (+)		(-)
      Connector	Terminal (Wire color)
      M98	12 (R)	Ground	No
      	13 (G)
      	14 (B/Y)

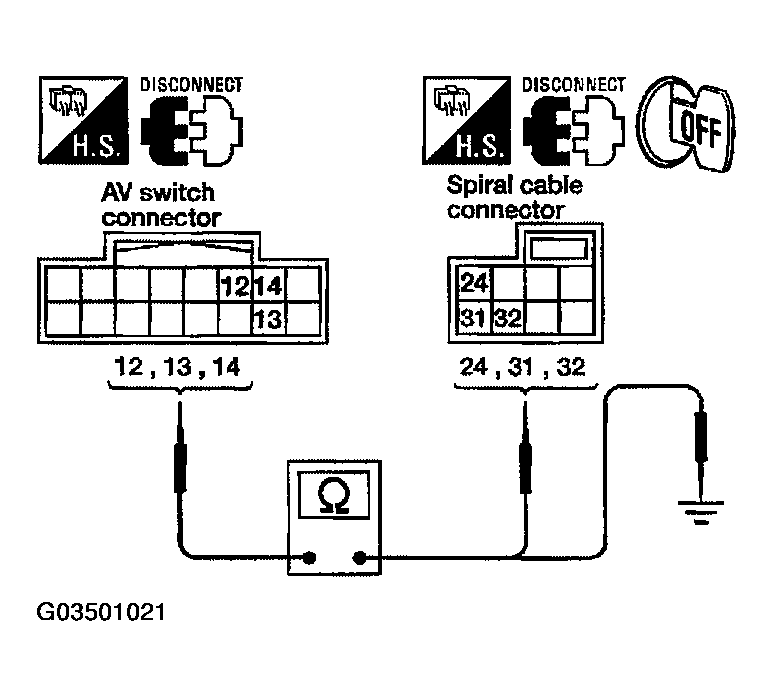

      Fig 1: Checking Continuity Between Terminals To Ground

      Courtesy of NISSAN MOTOR CO., U.S.A.

   OK or NG

   1. OK: GO TO 3.
   2. NG: Repair harness.
3. SPIRAL CABLE CHECK
   1. Disconnect spiral cable connector.
   2. Check continuity between spiral cable harness connector terminal.
      CONTINUITY SPECIFICATION



      Terminals				Continuity
      Spiral cable
      Connector	Terminal	Connector	Terminal
      M30	32	M102	16	Yes
      	31		17
      	24		20

   OK or NG

   1. OK: GO TO 4.
   2. NG: Replace spiral cable. Refer to SPIRAL CABLE . .

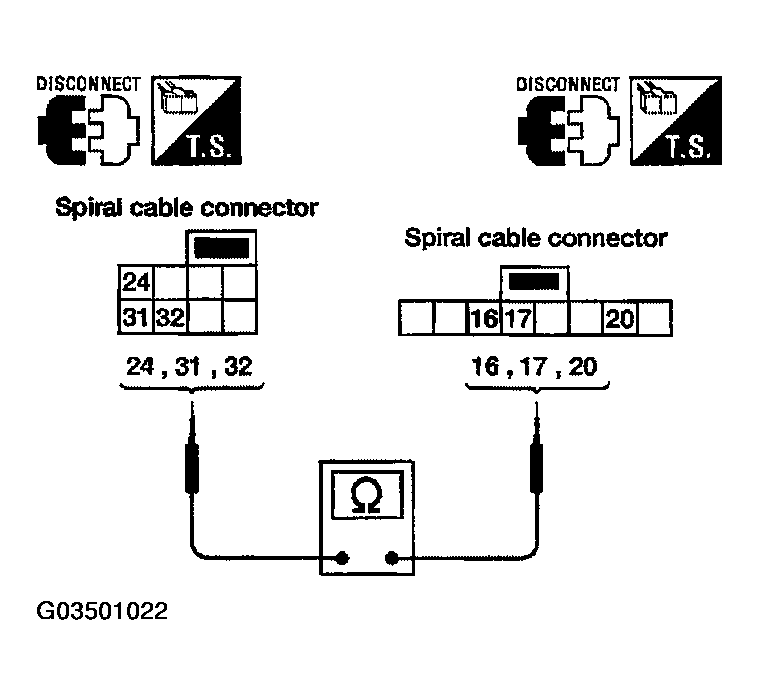

   Fig 2: Checking Continuity Between Terminals To Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. CHECK STEERING SWITCH RESISTANCE

   Check resistance between steering switch terminals.

   RESISTANCE SPECIFICATION



   Terminal		Signal name	Condition	Resistance ohm (Approx.)
   16	17	Seek (down)	Depress (station) down switch.	165
   		Power	Depress power switch.	0
   		Volume (down)	Depress volume down switch.	652
   20	17	Seek (up)	Depress (station) up switch.	165
   		Mode	Depress mode switch.	0
   		Volume (up)	Depress volume up switch.	652

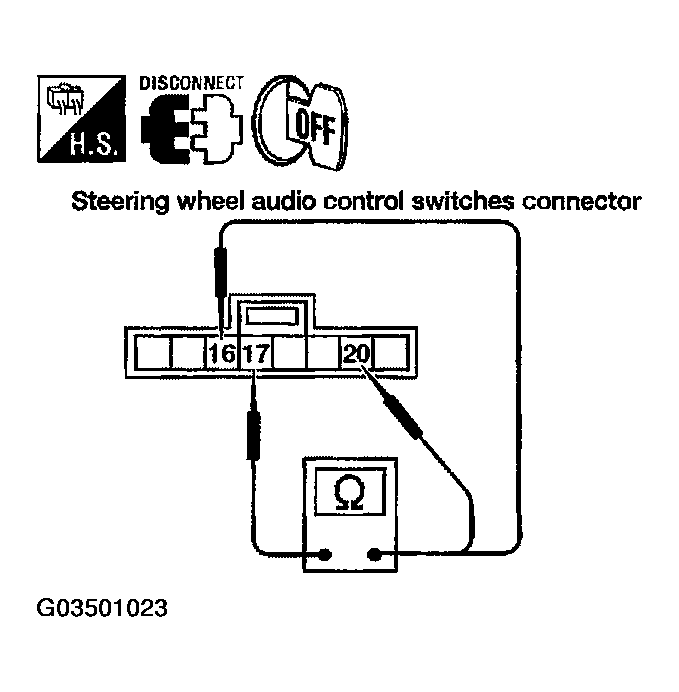

   Fig 3: Checking Resistance Between Steering Switch Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: INSPECTION END.
2. NG: Replace steering switch. Refer to Removal and Installation of Steering Wheel Audio Control Switches  . .
