Terminals and Reference Value for Rear Audio Remote Control Unit

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

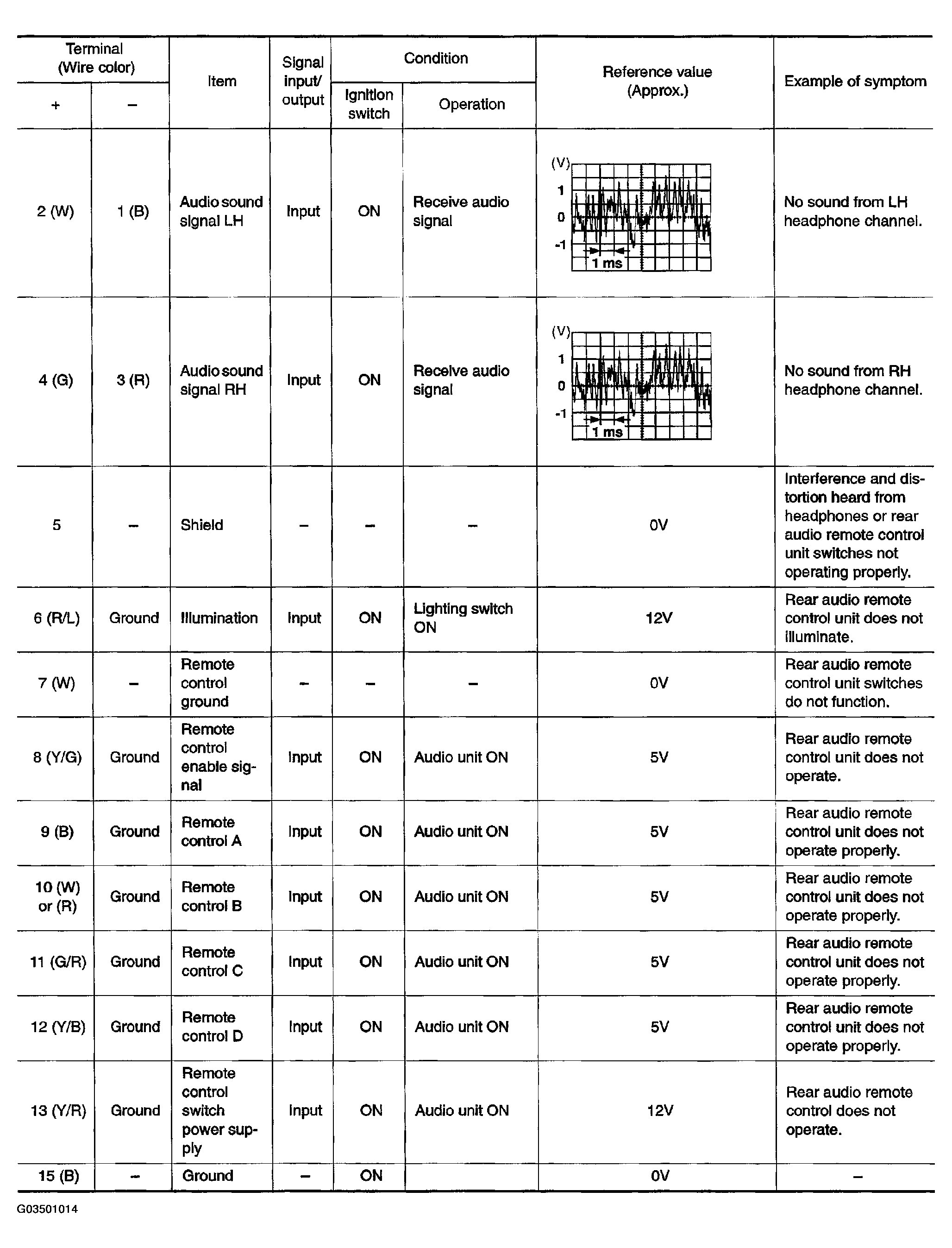

Fig 1: Terminals & Reference Value For Rear Audio Remote Control Unit Chart
G03501014Courtesy of NISSAN MOTOR CO., U.S.A.
