Steering Wheel Audio Control Switch Check
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- A SWITCH SELF-DIAGNOSIS FUNCTION CHECK
- Start A switch self-diagnosis function. Refer to "A SWITCH SELF-DIAGNOSIS FUNCTION ".
- Operate steering wheel audio control switch.
Does steering wheel audio control switch operate normally?
- OK: INSPECTION END.
- NG: GO TO 2.
- CHECK HARNESS
- Turn ignition switch OFF.
- Disconnect A switch connector and spiral cable connector.

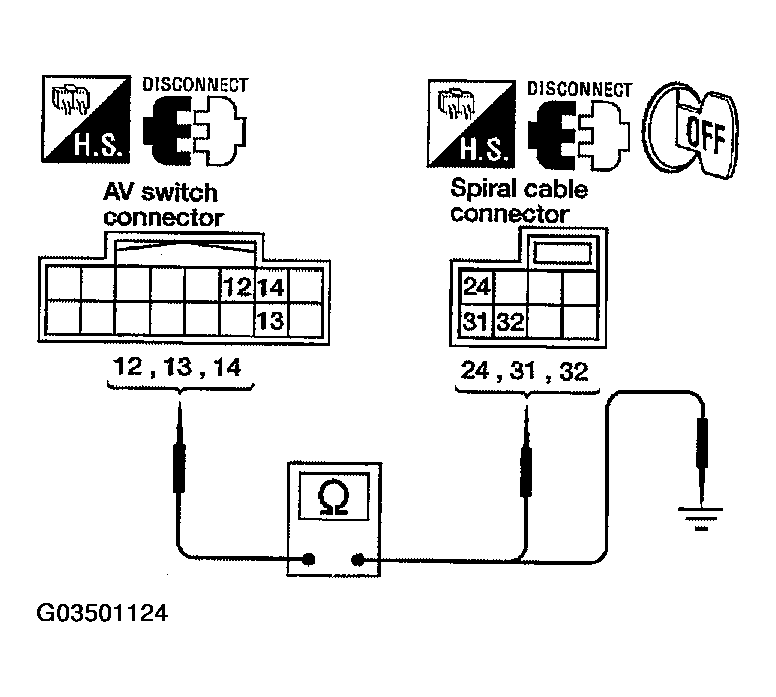

- Check continuity between spiral cable harness connector terminals and A switch harness connector terminals. CHECK CONTINUITY
Terminals Continuity Spiral cable AV switch Connector Terminal Connector Terminal (Wire color) M30 32 (G) M98 13 (G) Yes 31 (B/Y) 14 (B/Y) 24 (R) 12 (R) - Check continuity between A switch and ground.
CHECK CONTINUITYTerminals Continuity AV switch (+) (-) Connector Terminal (Wire color) M98 12 (R) Ground No 13 (G) 14 (B/Y) OK or NG
- OK: GO TO 2.
- NG: Repair harness.
- SPIRAL CABLE CHECK
Check spiral cable harness.
OK or NG
- OK: GO TO 4.
- NG: Replace spiral cable. Refer to "SPIRAL CABLE " .
- Check Steering Wheel Audio Control Switch Resistance

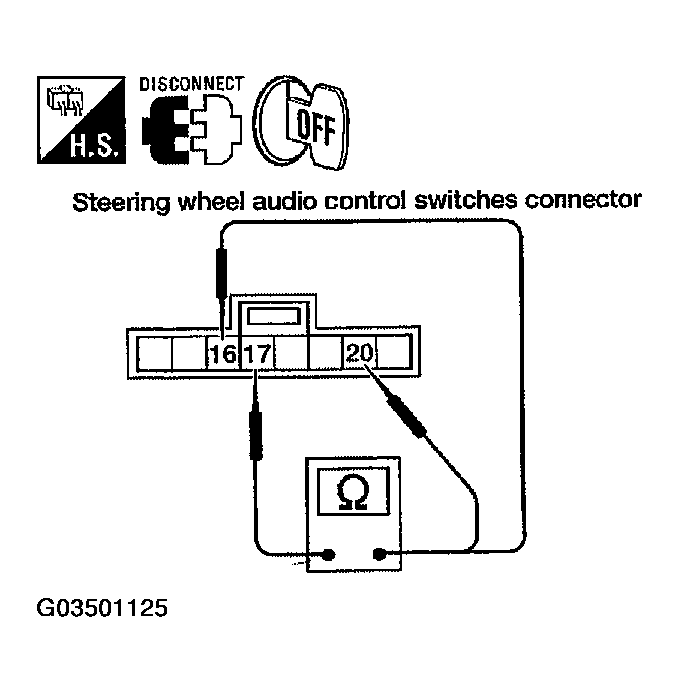

Check resistance steering wheel audio control switch terminals.
CHECK RESISTANCETerminal Signal name Condition Resistance (ohm) (Approx.) (+) (-) 16 17 Seek (down) Depress (station) down switch. 165 Power Depress power switch. 0 Volume (down) Depress volume down switch. 652 20 17 Seek (up) Depress (station) up switch. 165 Mode Depress mode switch. 0 Volume (up) Depress volume up switch. 652 Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Replace A switch. Refer to "REMOVAL AND INSTALLATION FOR A SWITCH ".
- NG: Replace steering wheel audio control switch. Refer to "REMOVAL AND INSTALLATION OF STEERING WHEEL AUDIO CONTROL SWITCHES ".
