Display Diagnosis

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

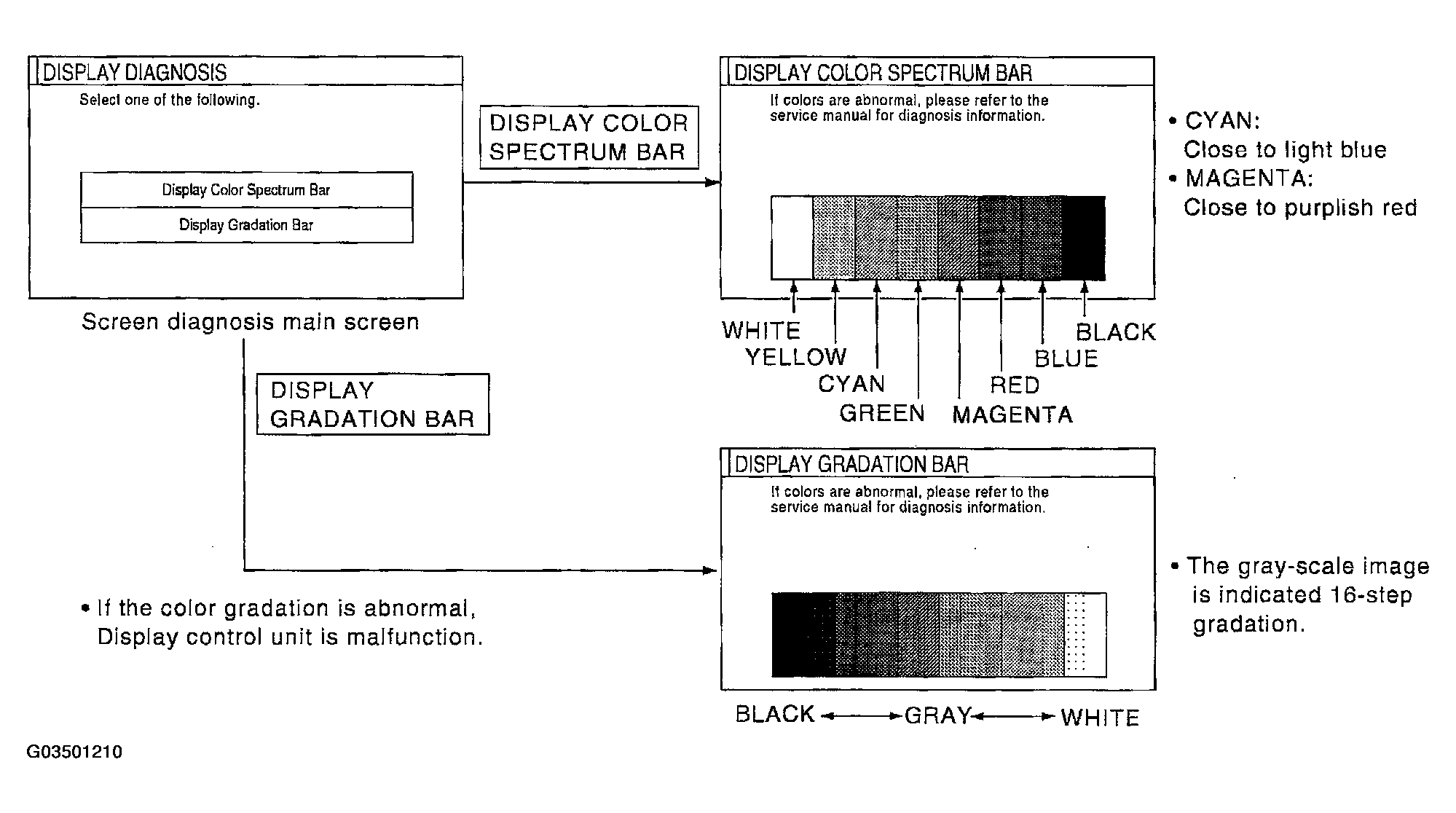

Fig 1: Display Diagnosis

Courtesy of NISSAN MOTOR CO., U.S.A.

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.
1. R (red) signal error: Screen looks bluish
2. G (green) signal error: Screen looks reddish
3. B (blue) signal error: Screen looks yellowish
When the color of the screen looks unusual, refer to COLOR OF RGB IMAGE IS NOT PROPER (EXCEPT NAVI SCREEN LOOKS BLUISH) , COLOR OF RGB IMAGE IS NOT PROPER (EXCEPT NAVI SCREEN LOOKS REDDISH) and COLOR OF RGB IMAGE IS NOT PROPER (EXCEPT NAVI SCREEN LOOKS YELLOWISH) .

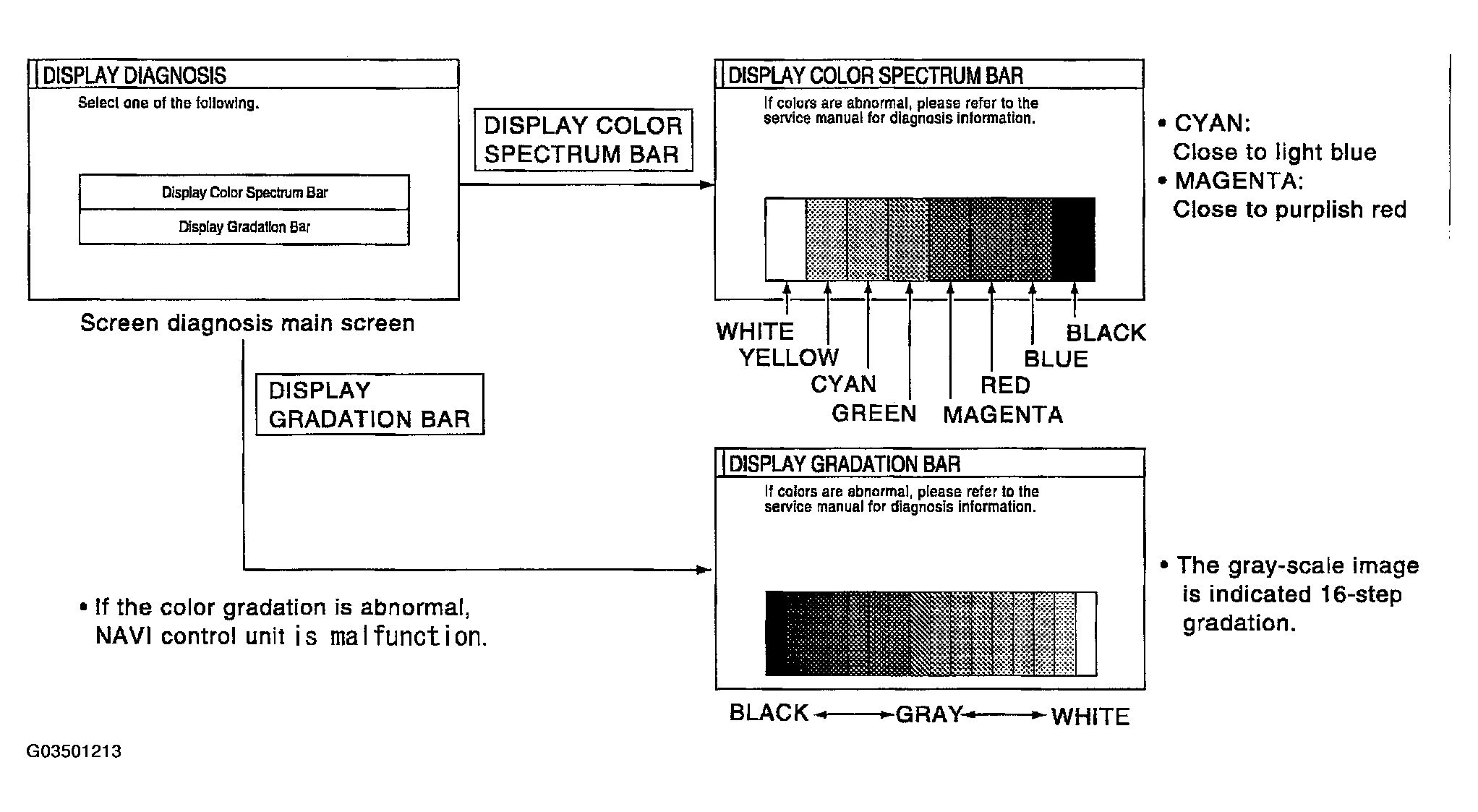

Fig 1: Display Diagnosis

Courtesy of NISSAN MOTOR CO., U.S.A.

When RGB signal error occurred in the RGB system, tone of the color bar will change as follows.
1. R (red) signal error: Screen looks bluish
2. G (green) signal error: Screen looks reddish
3. B (blue) signal error: Screen looks yellowish
When the color of the screen looks unusual, refer to COLOR OF RGB IMAGE IS NOT PROPER (NAVI SCREEN LOOKS BLUISH) , COLOR OF RGB IMAGE IS NOT PROPER (NAVI SCREEN LOOKS REDDISH) and COLOR OF RGB IMAGE IS NOT PROPER (EXCEPT NAVI SCREEN LOOKS YELLOWISH) .
