Inspection In Auto Active Test Mode: Notes
WARNING:
This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
When auto active test mode is actuated, the following nine steps are repeated three times.

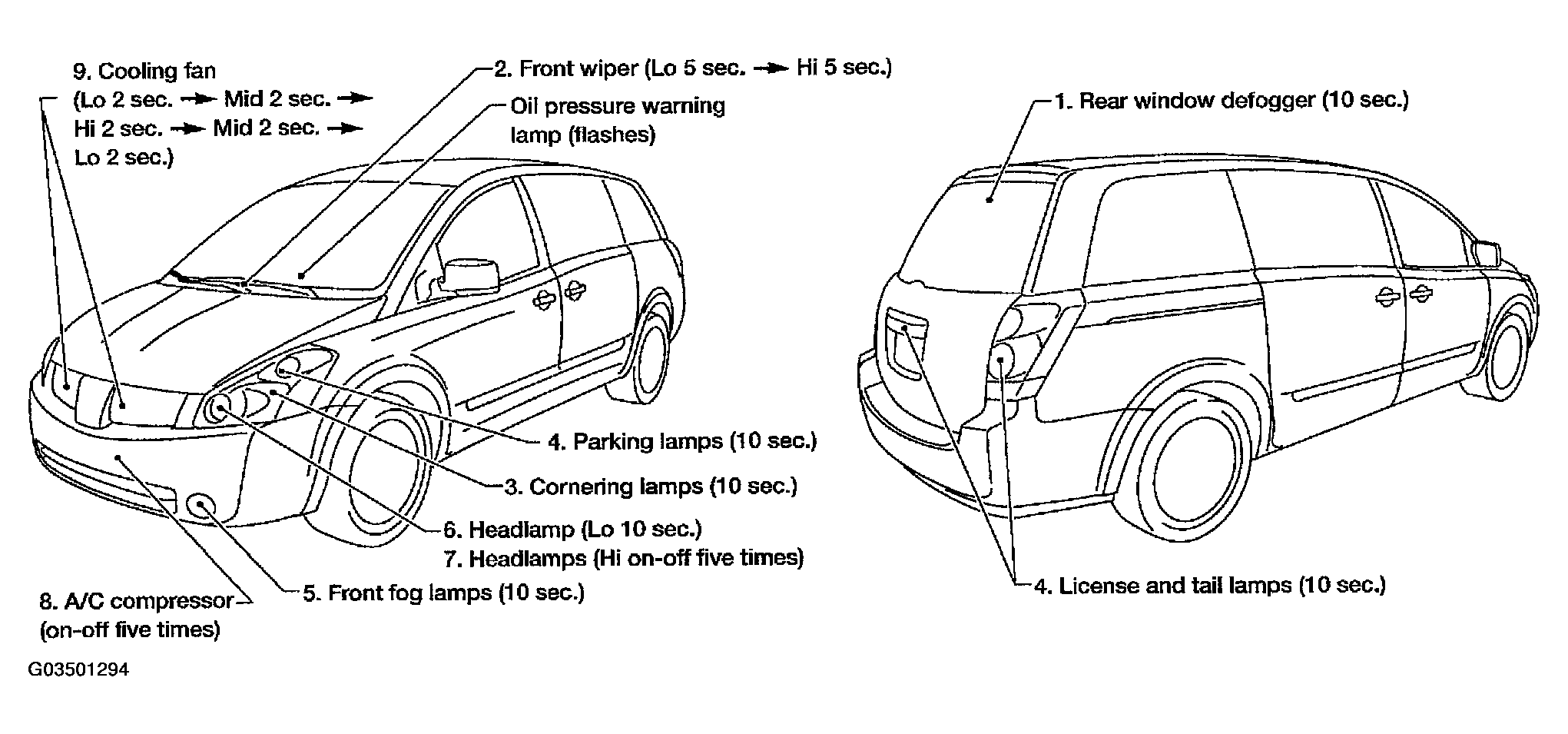

Fig 1: Identifying Auto Active Test Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
